9.10 - EXPANSIBLE HUB ASSEMBLY AND DISASSEMBLY: GENERALITIES
ASSEMBLY:
Slightly grease contact surfaces, threads, shaft and wheel bore and introduce the hub inside the
wheel. Pre-tighten the screws and place this unit on the gearbox shaft and position according to
the table §6.4.2 Cross-tighten the screws two or three times and tighten to the according torque
§9.11 TORQUE AND FIGURES.
DISASSEMBLY:
Untighten the screws on the hub and place them in the unlock holes. Tighten the screws until the
two elements of the hub disassemble and withdraw the wheel hub.

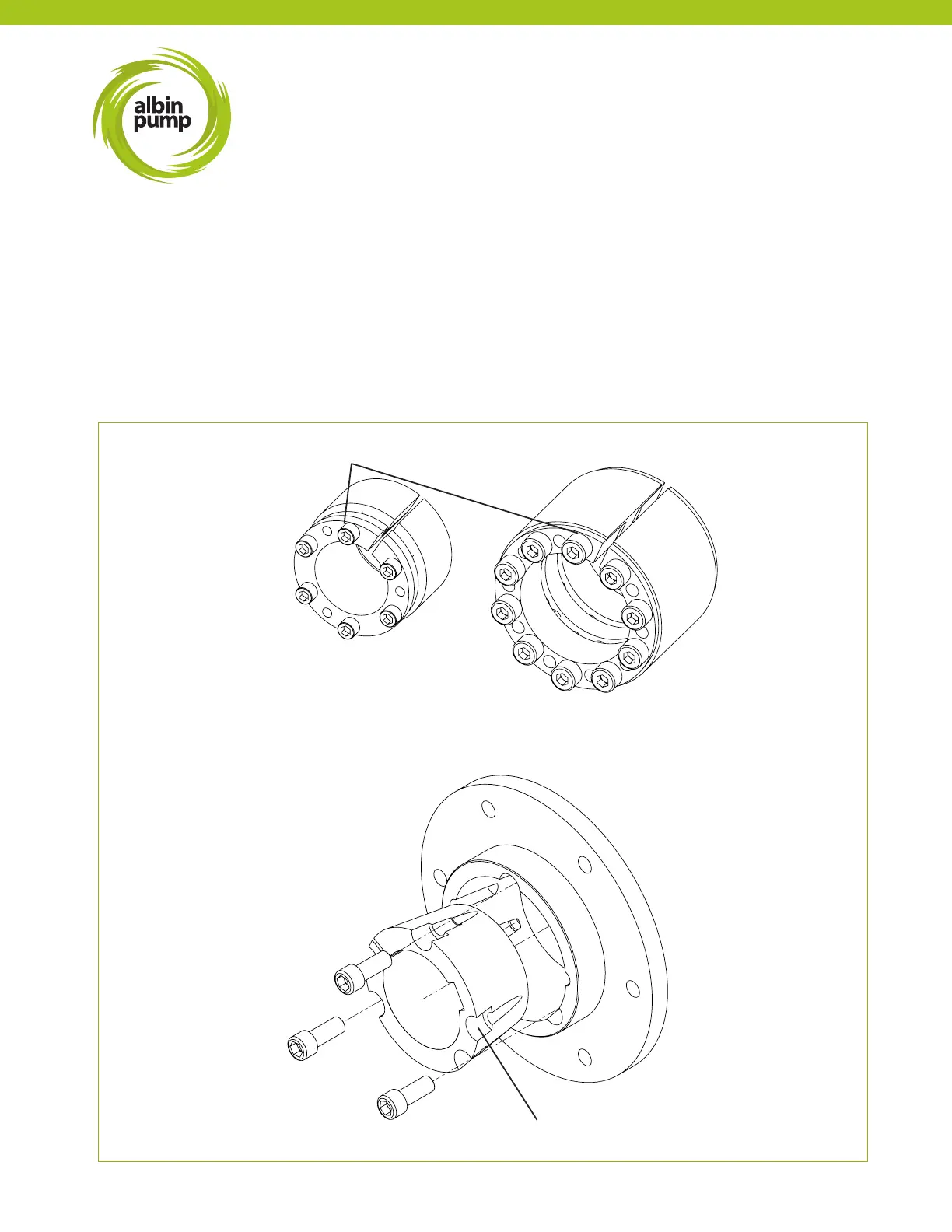

Unlock holes
ALH05 to ALHX40
2 part expansible hub.part
ALH50 and ALH65
3 part expansible hub.part
Unlock holes
ALHX65, ALHX80 and ALH80
1 part expansible hub.part
