Description
3 | DESCRIPTION
3.1 - IDENTIFICATION OF THE PUMP
ALBIN PUMPS are identiable by the pump plate located on the frame. The plate includes the pump type and serial number of the
pump. This serial number leads to all information concerning building materials, nature of the hose, characteristics of the gearbox
and characteristics of the motor. The gearbox and motor have their own descriptive plate that states the reduction ratio, power,
and electrical voltage.

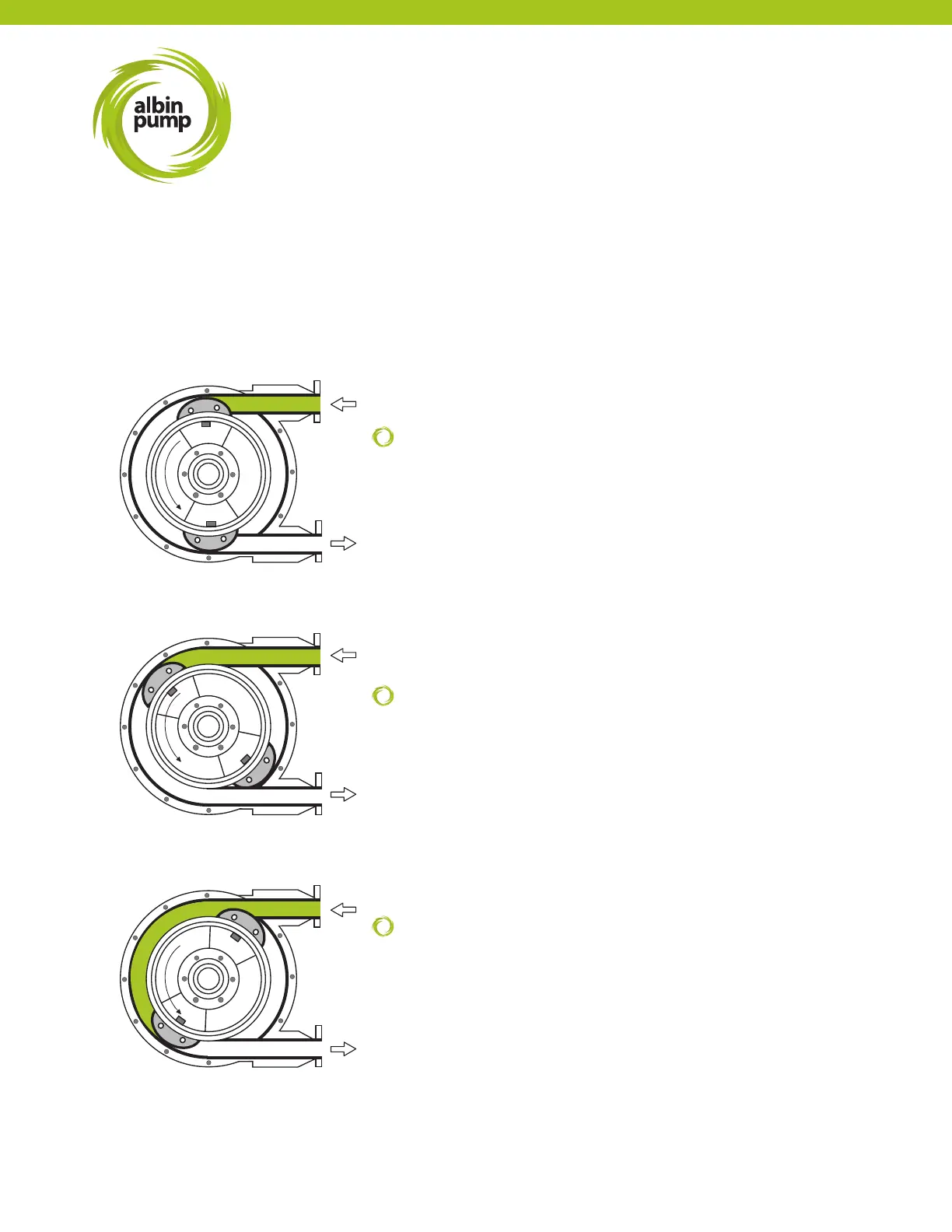

3.2 - OPERATION PRINCIPLE
PHASE 3
As soon as, at the discharge side, the shoe is detached
from the hose, the other shoe diametrically opposite is
already in compression thus avoiding an internal product
leakage. The product is then successively sucked and
pushed due to the wheel rotation.
PHASE 2
The pumped liquid has now entered the hose. The
second shoe will compress the hose and push the liquid
towards the pump outlet.
PHASE 1
The pump hose is compressed successively by two
pressing shoes assembled on a rotating wheel. The rst
shoe, by pressing the walls of the hose, will create a
vacuum and attract the pumped liquid into the hose.
