ALH
Description
2 1 18
19
3
21
10 16 14 6
12
9
8
7
71
1812
614
1610
21
3
19
12
9
8
7
Part No DESIGNATION ALH05 - 10 ALH15-20
1 CASING CAST IRON CAST IRON
2 COVER POLYCARBONATE POLYCARBONATE
3 WHEEL CAST IRON CAST IRON
6 SLEEVE EPDM EPDM
7 CLAMP ON CASING STAINLESS STEEL STAINLESS STEEL
8 CLAMP SLEEVE / HOSE BICHROMATED STEEL BICHROMATED STEEL
9 CLAMP ON HOSE BICHROMATED STEEL BICHROMATED STEEL
10 SEAL COVER NITRILE NITRILE
12 INSERT STAINLESS STEEL / PPH / PVDF STAINLESS STEEL / PPH / PVDF
14 LUBRICANT GLYCERIN BLEND GLYCERIN BLEND
16 HOSE
NR / NBR / EPDM / NBR FOOD / VITON
®
/
HYPALON
®
/ NR-FOOD
NR / NBR / EPDM / NBR FOOD / VITON
®
/
HYPALON
®
/ NR-FOOD
18 BRACKET ELECTROPLATED STEEL ELECTROPLATED STEEL
19 HUB STEEL STEEL
21 FRAME ELECTROPLATED STEEL ELECTROPLATED STEEL
71 COVER FLANGE ELECTROPLATED STEEL WITHOUT FLANGE
PUMP ALH15 - ALH20 PUMP ALH05 - ALH10

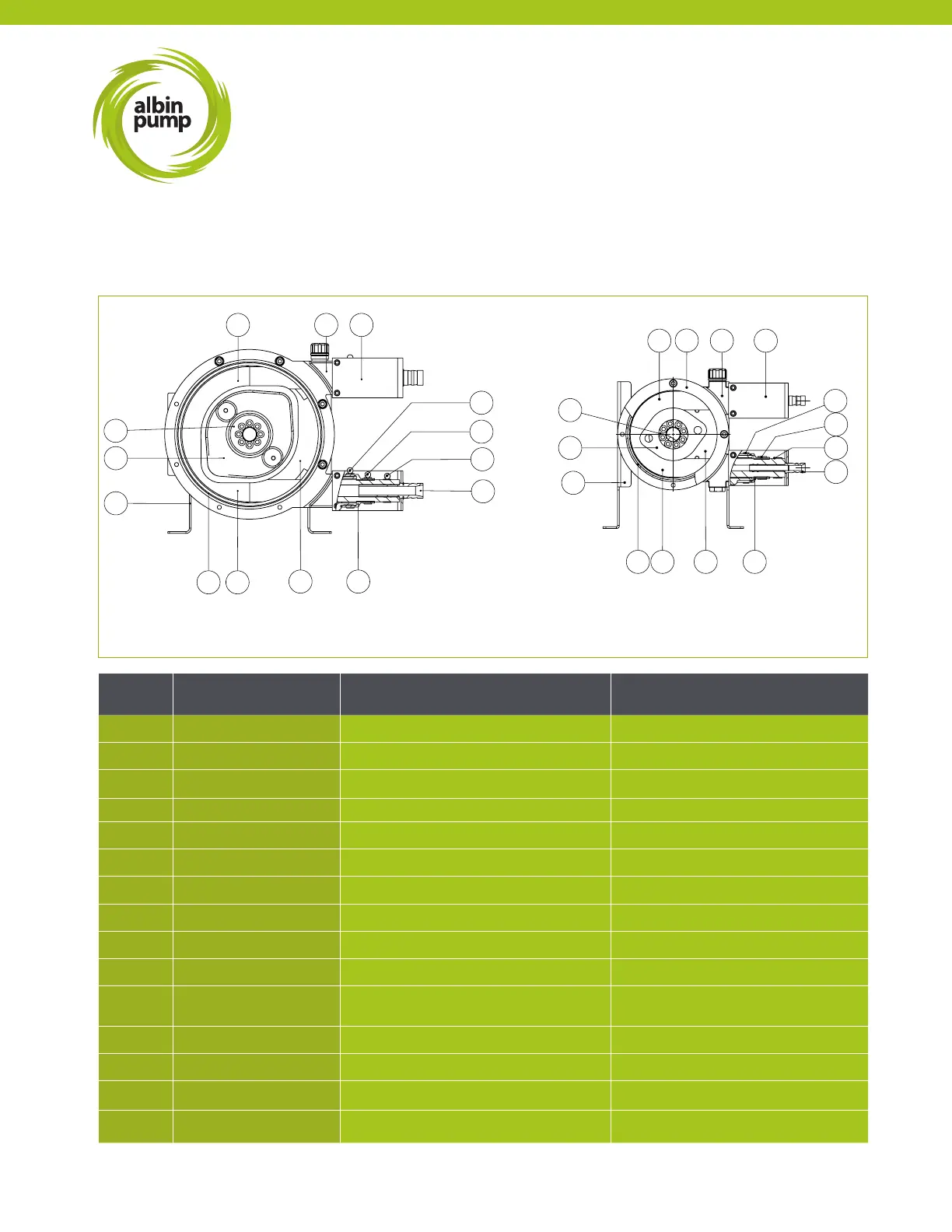

3.3 - PUMP CONSTRUCTION
3.3.1 - PUMPS ALH05 TO ALH20
