ALH
Characteristics / Technical Specications

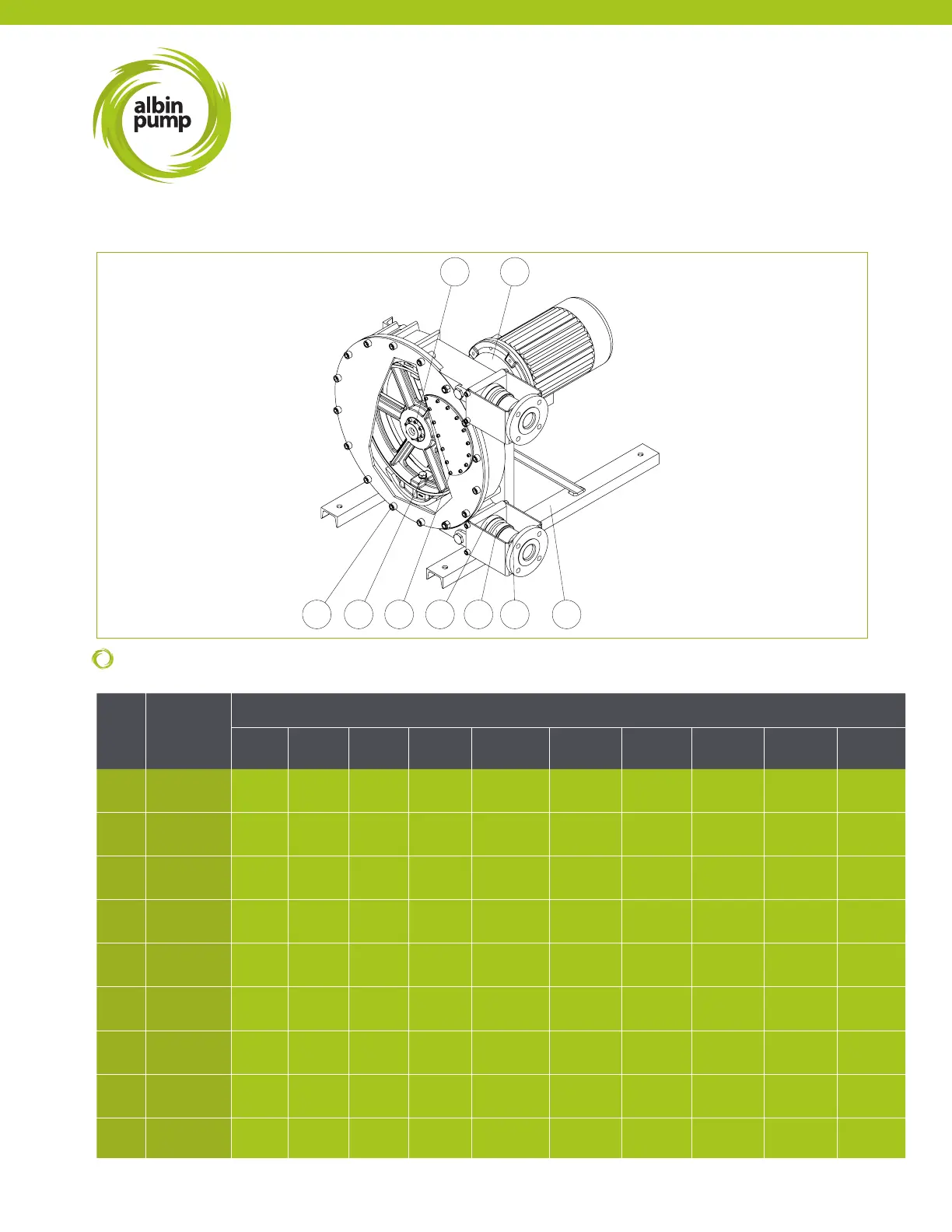

9.11 - TORQUE FIGURES
G
H I
A B D E F C
ITEM
DESCRIP-
TION
MAX TORQUE IN FT-LBS (NM) - CERTIFIED TOOLING REQUIRED
ALH05
ALH20
ALH25
ALH32
ALH40
ALHX40
ALH50
ALH65
ALHX65 ALHX80 ALH80 ALH100 ALH125
A COVER 3.3 (2.4) 7.8 (5.7) 27 (19.9) 27 (19.9) 65 (47.9) 65 (47.9) 65 (47.9) 65 (47.9) 127 (93.7) 127 (93.7)
B
SHOE 46 (33.9) 79 (58.3) 79 (58.3) 402 (296.5) 402 (296.5) 402 (296.5) 402 (296.5) 691 (509.6) 691 (509.6)
C WINDOW 3.3 (2.4) 3.3 (2.4) 3.3 (2.4) 3.3 (2.4) 3.3 (2.4) 3.3 (2.4) 3.3 (2.4) 3.3 (2.4) 3.3 (2.4)
D CLAMP REF 7 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9) 4 (2.9)
E CLAMP REF 8 12 (8.8) 16 (11.8) 30 (22.1) 30 (22.1) 30 (22.1) 30 (22.1) 30 (22.1) 45 (33.2) 45 (33.2) 45 (33.2)
F CLAMP REF 9 12 (8.8) 50 (36.9) 50 (36.9) 50 (36.9) 50 (36.9) 50 (36.9) 50 (36.9) 50 (36.9) 50 (36.9) 50 (36.9)
G FRAME 8 (5.9) 15 (11.0) 27 (19.9) 27 (19.9) 65 (47.9) 65 (47.9) 127 (93.7) 127 (93.7) 220 (162.2) 220 (162.2)
H GEARBOX 34 (25.0) 67 (49.4) 116 (85.5) 116 (85.5) 116 (85.5) 116 (85.5) 291 (214.6) 291 (214.6) 291 (214.6) 291 (214.6)
I HUB 12 (8.8) 13 (9.6) 13 (9.6) 27 (19.9) 35 (25.8) 90 (66.3) 110 (81.1) 110 (81.1)
TORQUE
Nm (Ft-lbs)
