Maintenance
3 - Insert the hose by the outlet port (REF 6) (Photo 2).
4 - Reverse the direction of rotation of the motor.
5 - While pushing on the hose, jog run the motor and check the direction of rotation.
6 - The shoes mounted on the wheel are going to “swallow” the hose and push it out of the inlet port. Always by giving
jolts, a gap is maintained between the hose and ange in order to slide the clamps over the hose and into position.
Once the clamps are placed loosely over the hose, jog the pump to get the hose ush with the ange. (REF 47) (photo 3).
7 - Assemble the clamps (REF 8 and 9) on the inlet side. Clamp (REF 8) is to be mounted on the sleeve to ensure the sealing.
Clamp (REF 9) needs to be installed at an equal distance between the ange and sleeve. Mount the insert (REF 12) into
the hose. Tighten clamps (REF 8 and 9) .
If you meet diculties in introducing inserts into the pump hose,
coat them slightly with ALBIN lubricant. Never use another lubricant.
8 - Assemble the brackets (REF 18) and pre-assemble ange (REF 47) on the outlet side with two temporary bolts.

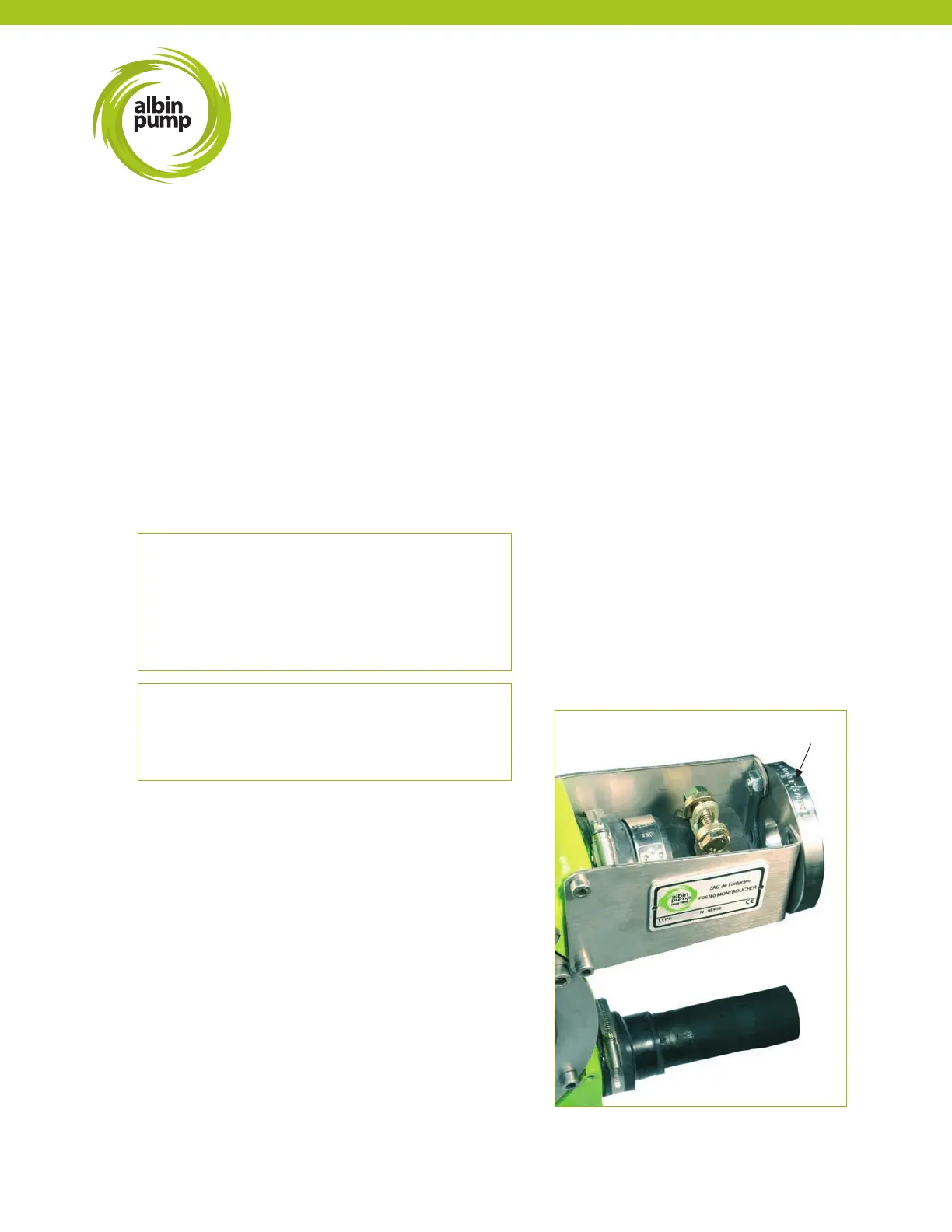

PHOTO 3
9 - Reverse the direction of rotation of the motor.
10 - A gap is maintained between the hose and ange in order to
slide the clamps over the hose and into position. Once the
clamps are placed loosely over the hose, jog the pump to
get the hose ush with the ange.
11 - Undertake operation step 7 at discharge side.
12 - Fill the pump with the necessary quantity of ALBIN lubricant
see §6.1 and §9.7.
13 - Take away the temporary ange bolts and x the piping on
both suction and discharge sides.
14 - Open the valves at the suction and discharge sides.
15 - Check the direction of rotation of the pump.
Check for any possible lubricant leakage by the inserts,
sleeves or cover.
FOR MODELS ALH05, ALH10, ALH15
and ALH20
Dismantle the bracket (REF 18). Mount clamp (REF 8)
and 9 on the hose. Mount the insert (REF 12) into the
hose. Fix bracket (REF 18) and block the insert with
circlips (REF 24). Tighten the clamp (REF 8) and 9.
FOR MODELS ALH05, ALH10, ALH15
and ALH20
Assemble the bracket (REF 18) at the outlet side.
REF 47
