Alcatel-Lucent 7750 SR-a8 - Table 28 Chassis Clearance Specifications for Horizontal Mount; Figure 15 Chassis Clearance Requirements for Horizontal Mount (View from Top)

Equipment Rack
60 7750 SR-a4 and SR-a8 Installation Guide

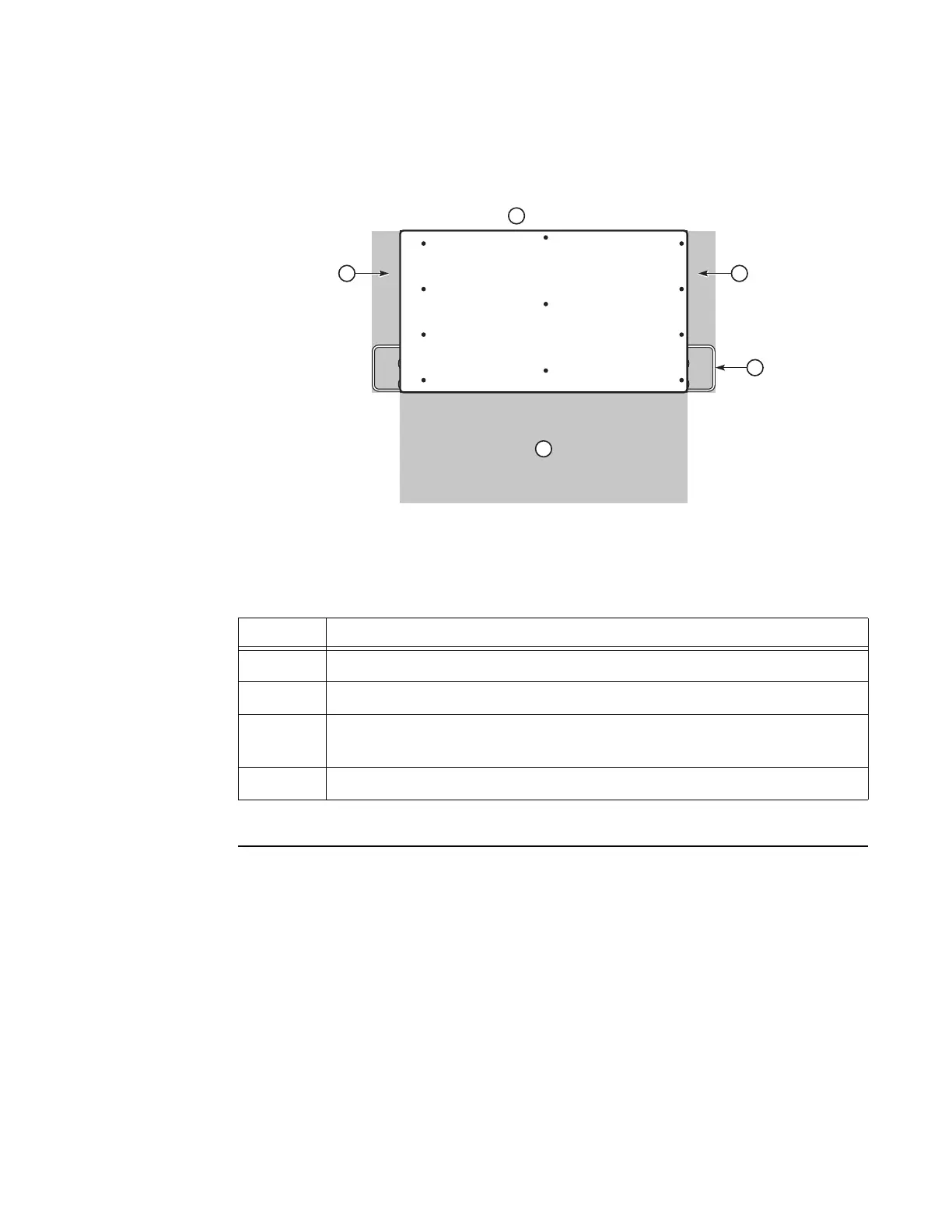

Figure 15: Chassis Clearance Requirements for Horizontal Mount (View from Top)
Table 28: Chassis Clearance Specifications for Horizontal Mount
Key Description
1 Front: 20 in. (50.8 cm) required for service access
2 Rear: No clearance required
3 Side: 3 in. (7.6 cm) minimum required on each side of the rack for air intake
(right) and for exhaust (left)
4 Rack upright
Rear
3 3
4
2
1
24546
