User Manual
Product information and planning
9500 MPR Rel. 3.1
3DB18809AAAA Issue 166/980
2.1.10.3.2 Two cables (MPT Access unit to MPT-HC V2)
Two cables connect an MPT Access unit in the MSS to its MPT-HC V2:
– One cable is a 50 ohm coaxial cable to send the power supply to the MPT-HC V2:
• for length lower or equal to 100 m the power cable can be CAT5E cable to send the power sup-
ply to the MPT-HC V2 . The Ethernet electrical cable is provided with connectors to be mounted
on site with the specific RJ45 tool (1AD160490001);
• for length higher than 100m, the cable is a 50 ohm coaxial cable to send the power supply to
the MPT-HC V2
Note: In case of length lower than 100m and presence in the field of 1 coaxial alredy installed
and free it is recomended to use the coax cable to minimise the installation effort.
– The second cable is an Ethernet optical cable.
The Ethernet optical cable is preassembled and available in different lengths (up to 450 m).
Note: A special cord adapter must be connected to the coaxial cable on the MPT-HC V2.

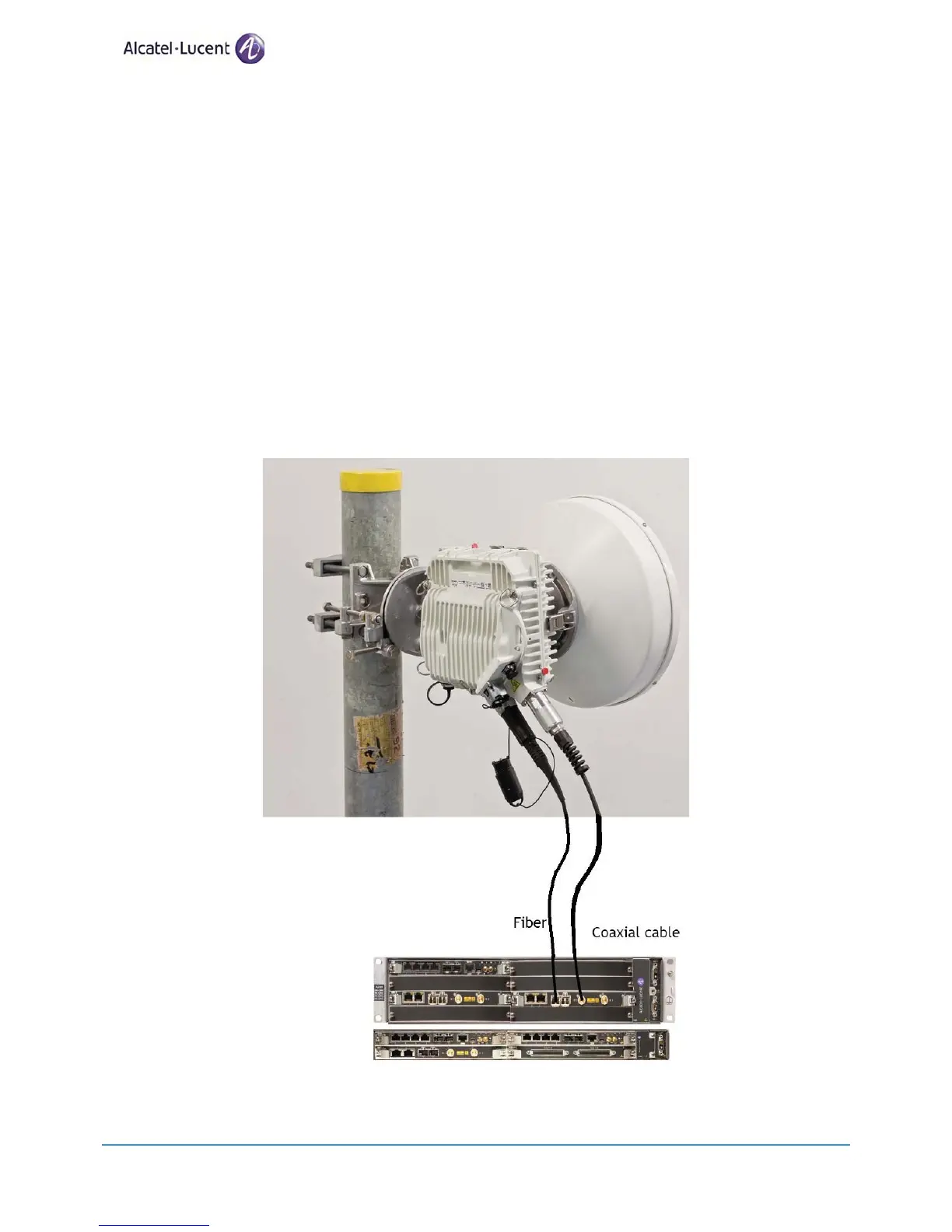

Figure 25. MSS to MPT-HC V2 interconnection
