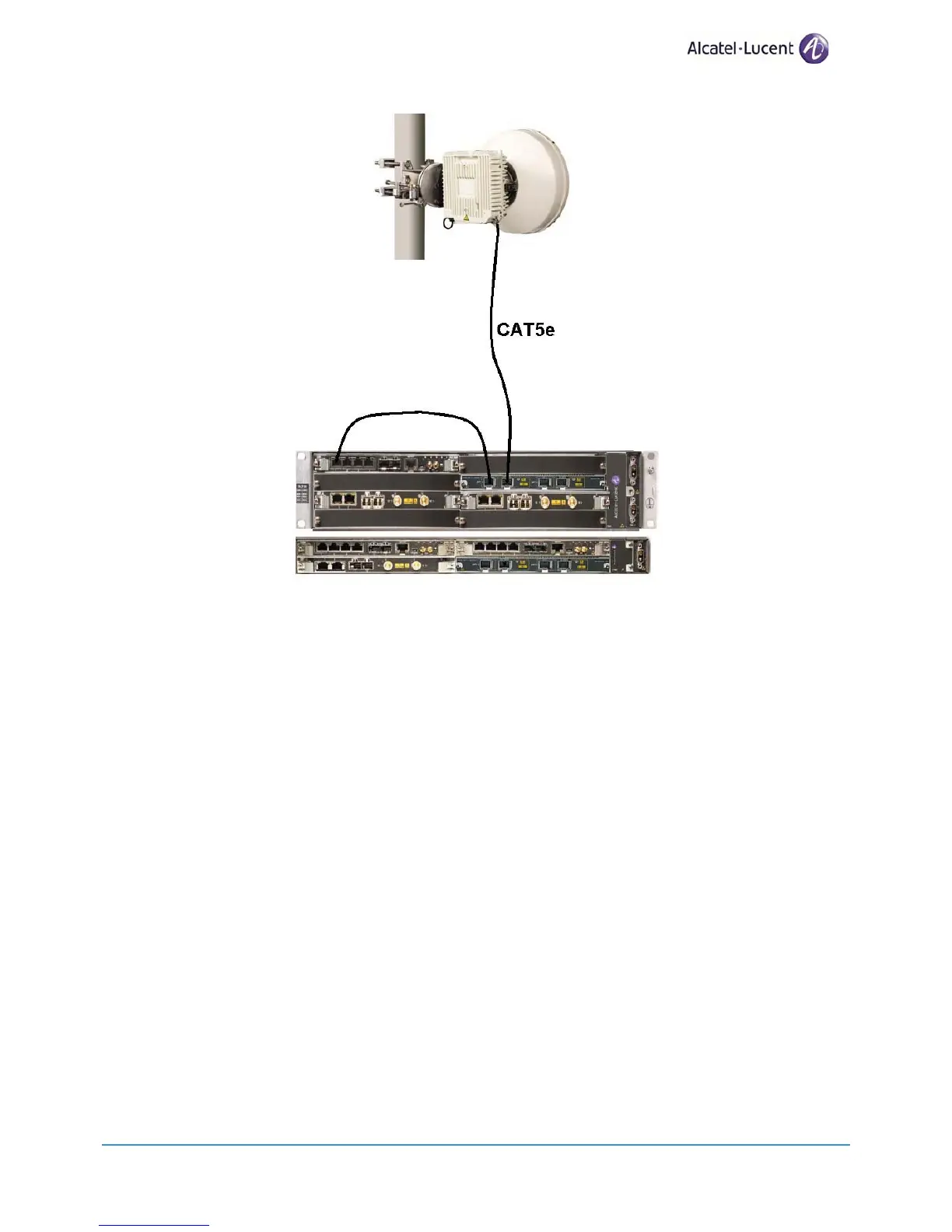

Figure 32. MPT-MC connection through the Power Injector Plug-in installed in the MSS
2.1.11 Antennas
Antennas for direct mounting an ODU are available in diameters from 0.3 m to 1.8 m, depending on the
frequency band.
A polarization rotator is included within the antenna collar, and direct-mounting equal or unequal loss
couplers are available for single antenna protected operation.
Antenna mounts are designed for use on industry-standard 114 mm OD pipe-mounts.
An ODU can also be used with standard antennas via a remote-mount kit and flexible waveguide.
