H2 DeskPhone
H2P DeskPhone
8AL90394ENAAed01 16 /111

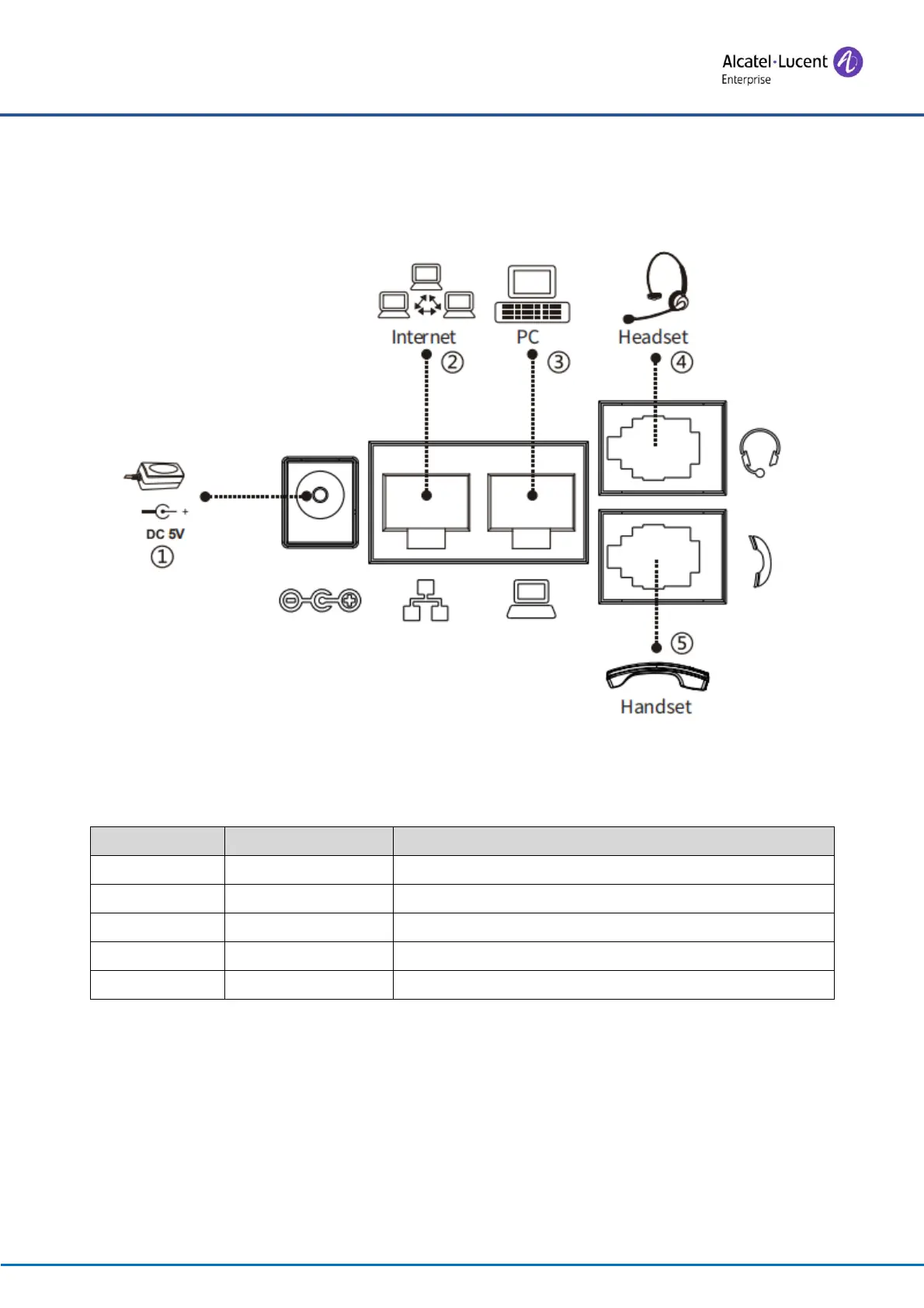

Connect the power adapter, network, PC, telephone and earphone to the appropriate port as shown in the
picture below.
Figure 3 - Connecting to the device
Table 1 - Hardware Interface Description
Index
Interface
Description
①
Power Interface
Connecting the power adapter
②
Network Interface
Connecting to LAN or Internet
③
PC Port
Network interface for connecting the computer
④
Headset Interface
Connecting the headset
⑤
Receiver Interface
Connecting the microphone receiver
