Alcatel-Lucent OmniPCX Office Installation Manual

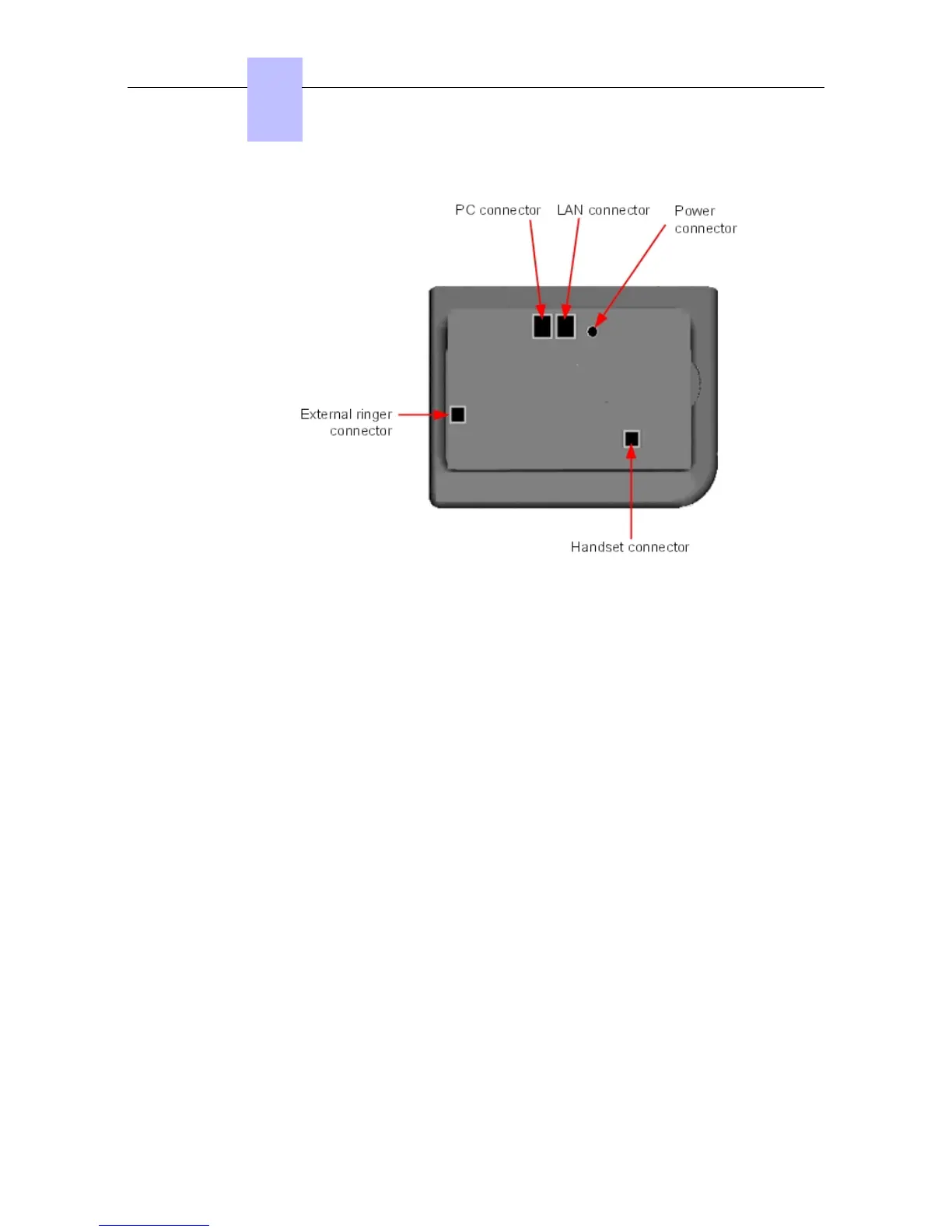

Figure 4.44: Alcatel-Lucent IP Touch 4018 Phone and Alcatel-Lucent IP Touch 4018 phone
Extended Edition connectors
4.5.1.1.2 Commissioning the set
This section describes how to:
- Connect the set
- Initialize the set
- Program keys
Prerequisites
None.
Connecting the sets
This section describes how to:
- Connect an IP Touch set to the LAN (Local Area Network)
- Connect the power supply
Prerequisites
None.
Connecting an IP Touch set to the LAN
To connect the set to the LAN:
Chapter
4
  ()
4-58
          

Alcatel-Lucent OmniPCX Office Specifications

General

VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Humidity	10% to 90% non-condensing
Type	IP PBX
Maximum Trunks	Up to 60
Voice codecs	G.711, G.729
Network Interfaces	10/100 Ethernet
Weight	Varies depending on the model/configuration
