4.7.1 Hardware description
4.7.1.1 Overview
The V24/CTI Interface Module allows a Data Terminal Equipment (DTE) to be connected to
the OmniPCX Office, via a UA link, by means of an RS232 serial link (CTI port) or a V24 link.
The V24/CTI Interface Module can be used alone or combined with an Alcatel-Lucent 9 series
set.
The V24/CTI Interface Module replaces the 4093 PLUGWARE V24/CTI. The two interface
modules can operate together: a data link can be set between an V24/CTI Interface Module
Interface Module and a 4093 PLUGWARE V24/CTI.
Note:
The V24/CTI Interface Module is also compatible with UA 3G sets.
CTI port
The RS232 serial link carries signalling (up to 9600 bit/s) and allows telephone operations
such as call management and call monitoring. The audio part is carried out by the associated
dedicated set.
V24 port
The V24 port is considered as a DCE and provides a capacity of 19200 bit/s (ECMA 102) for
an asynchronous V24 transmission. The electrical interface complies with the V28
recommendation of the CCITT.

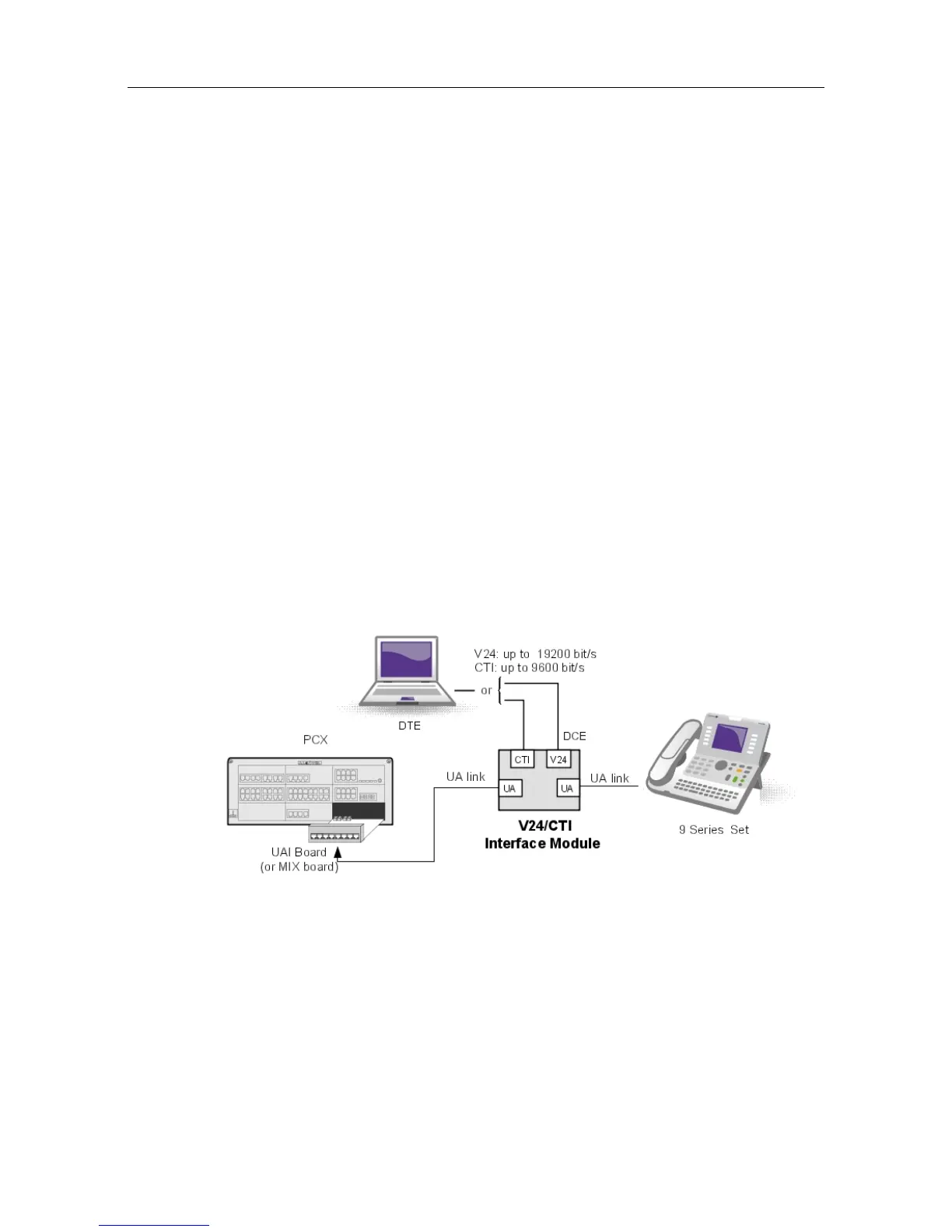

Figure 4.48: V24/CTI Interface Module Configuration Example
4.7.1.2 Compliant Standards
4.7.1.2.1 Safety Requirements
- EN60950: European requirements
- UL 1950: US requirements
- CAN/CSA-C22.2 No 950-95: Canada
()
4-75
