Alcatel-Lucent OmniPCX Office Installation Manual

The V24/CTI Interface Module is connected as follows:

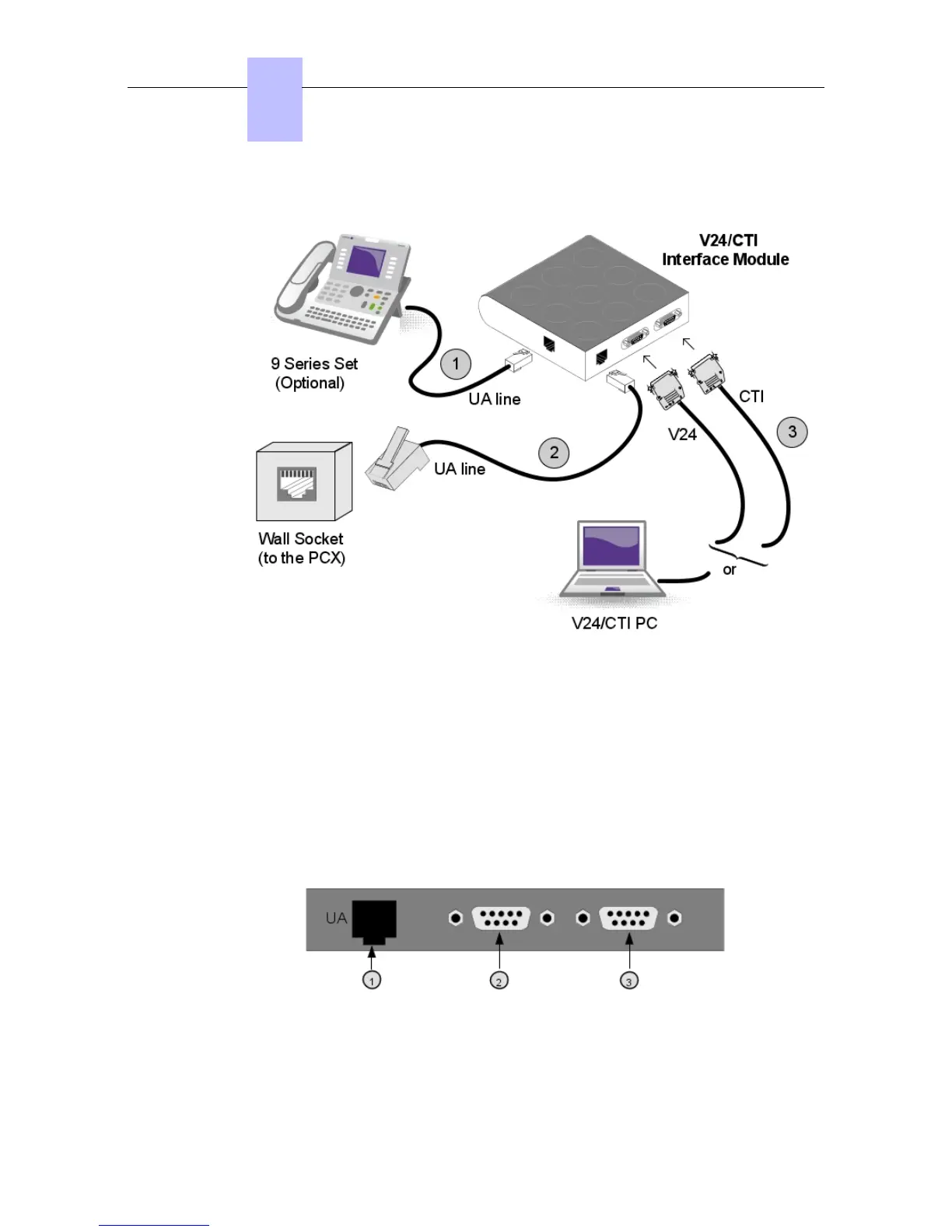

Figure 4.51: V24/CTI Interface Module Connection
The V24/CTI Interface Module is connected to:
1. The digital set 3 m maximum length ( RJ11/RJ11 cable)
2. The PCX via a wall socket and a distributor frame
3. The CTI or V24 terminal:
• V24: 3m maximum length
• CTI: 3m maximum length
4.7.3.2 V24/CTI Interface Module Rear Panel Details
Figure 4.52: Rear Panel
1. RJ11 connector for UA line to PCX
