4.8.1.1 Overview
The AP Interface Module (Analog Peripheral) allows an analog device such as fax, modem,
minitel, answering machine to be connected to the Alcatel-Lucent OmniPCX Office
Communication Server via a UA link.

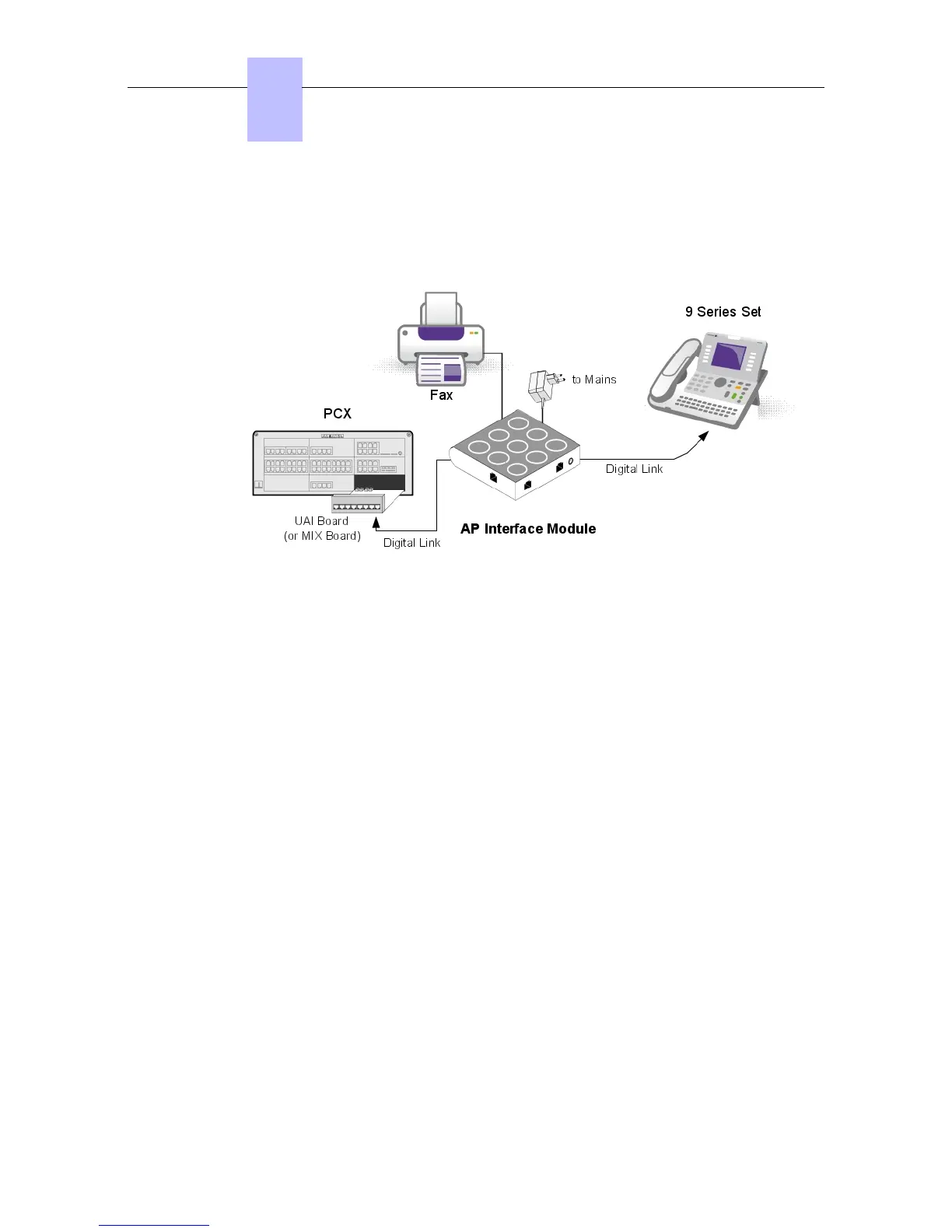

Figure 4.54: Example of Configuration with an AP Interface Module
AP Interface Module can be used alone or combined with an Alcatel-Lucent 9 series set.
Note:
The AP Interface Module is also compatible with Alcatel Reflexes sets.
AP Interface Module powers the analog device (DTMF signalling, ringer) and, to do this,
requires an external power supply (230V AC/30V AC adapter). In this document, this set is
called Z set.
4.8.1.2 Compliant Standards
4.8.1.2.1 Safety Requirements
- EN60950: European requirements
- UL 1950: US requirements
- CAN/CSA-C22.2 No 950-95: Canada
4.8.1.2.2 ECM
- EN55022: Limits and methods of measurement of radio interference characteristics of
information technology equipment
- EN55024: Limits and methods of measurement of immunity characteristics of information
technology equipment
- FCC part15: US requirements
4.8.1.2.3 Analog Transmission
