Important:
An IP-DECT system cannot be deployed along a DECT system on the same PCX node.
Installation, configuration and maintenance of IP-DECT system is described in the following
Alcatel-Lucent documentation:
- IM/4080 IP-DECT installation manual
- AM/4080 IP DECT administrator manual
- AM/4080 IP-DECT advanced data manual
- IM/4080 IP-DECT CE manual for SIP connectivity
- IM/4080 IP-DECT Site Survey Kit (SSK) deployment manual
Note:
For any installation, a preliminary study must be carried out using coverage tools. The bases are then
installed according to the results of this study.
4.11.1.1 Connection and power
Usually the cabinets will be fixed to existing walls in the positions determined by the Site
Survey. Do not mount the 4080 IP-DECT to a metal wall
The power for the 4080 IP-DECT is supplied via the Ethernet cable, PoE (IEEE 802.3af).
- Voltage at the DAP: minimum 36 Volts, maximum 57 Volts
- Connector: Standard RJ45 connector, using the spare wires pins (wires).
___change-begin___
___change-end___

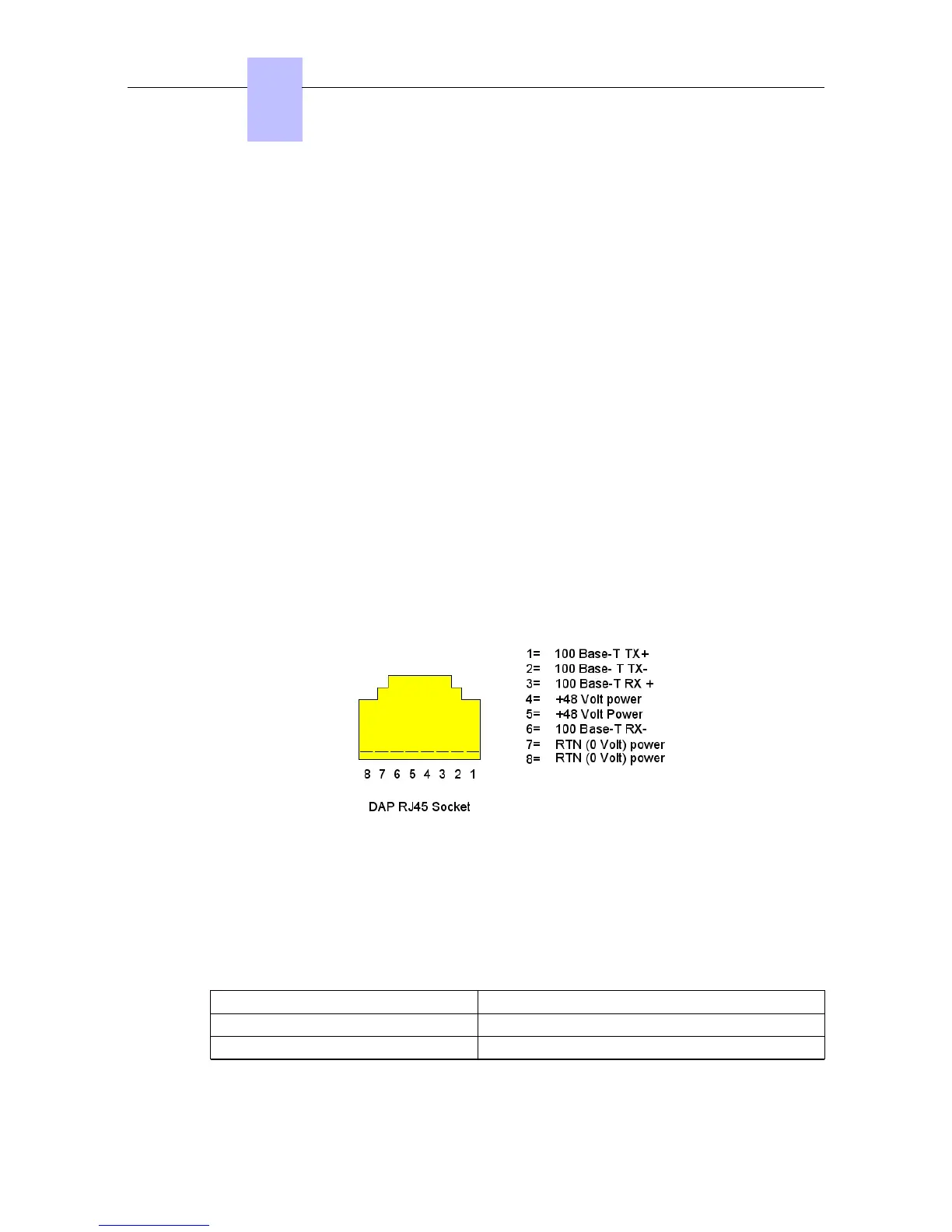

Figure 4.71: Pin Layout Ethernet Connector RJ45 on the DAP
The 4080 IP-DECT access points are fitted with 2 LEDs that provide information about the
status.
- Top LED – Yellow
This LED represents the status of the 4080 IP-DECT.
LED Status (Top LED, Yellow) Meaning
Off No power
0,5 sec. On - 0,5 sec. Off Loading software/firmware
Chapter
4
()
4-102
