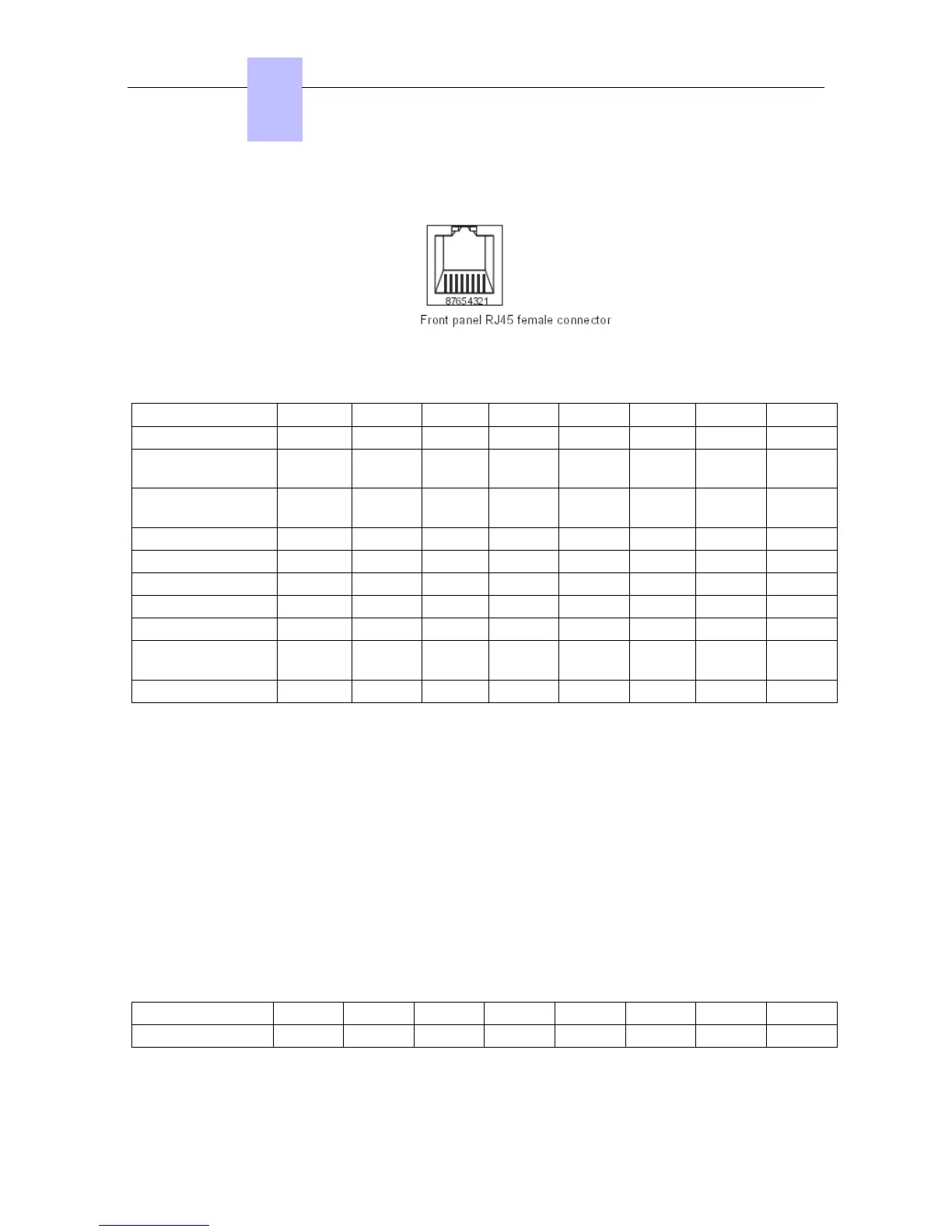

All outputs are made using Female RJ45 connectors.
4.2.1.1.1 PowerCPU Board
RJ45 pin 1 2 3 4 5 6 7 8
LAN TX+ TX- RX+ RX-
SLI1/SLI2 Ground +12 V CenRg A ZA1 ZB1
CenRG
B
ZA2 ZB2
AUX Ground +12 V CenRg A
CenRG
B
CONFIG CTS RX RMTRES Ground TX DTR RTS
MODULE1 TX+ TX- RX+ RX-
ISDN T01 TX+ RX+ RX- TX-
MODULE2 TX+ TX- RX+ RX-
ISDN T02 TX+ RX+ RX- TX-
AUDIO Audio In A
Audio In
B
Audio
Ctrl A
Audio
Out A
Audio
Out B
Audio
Ctrl B
Alarm A Alarm B
DOORPHONE DoorPhB1DoorPhA1 DoorPhA2DoorPhB2
- LAN: 10/100/1000 base T Ethernet port (MDI-II/straight).
- SLI1/SLI2: Analog Z accesses from Mini-MIX board, General ringer; 12V output
- AUX: General ringer; 12V output
- CONFIG: RS232 for OMC.
- MODULE1: HSL1 link of HSL board for connection to module expansion 1
- ISDN T01: ISDN T01 port of Mini-MIX board
- MODULE2: HSL2 link of HSL board for connection to module expansion 2
- ISDN T02: ISDN T02 port of Mini-MIX board
- AUDIO: Interfaces Please wait message, Background music, Loudspeaker, Alarm
- DOORPHONE: Interfaces doorphone
4.2.1.1.2 SLI Board
RJ45 pin 1 2 3 4 5 6 7 8
1 to 16 ZA ZB
- 1 to 16: connecting analog Z terminals.
