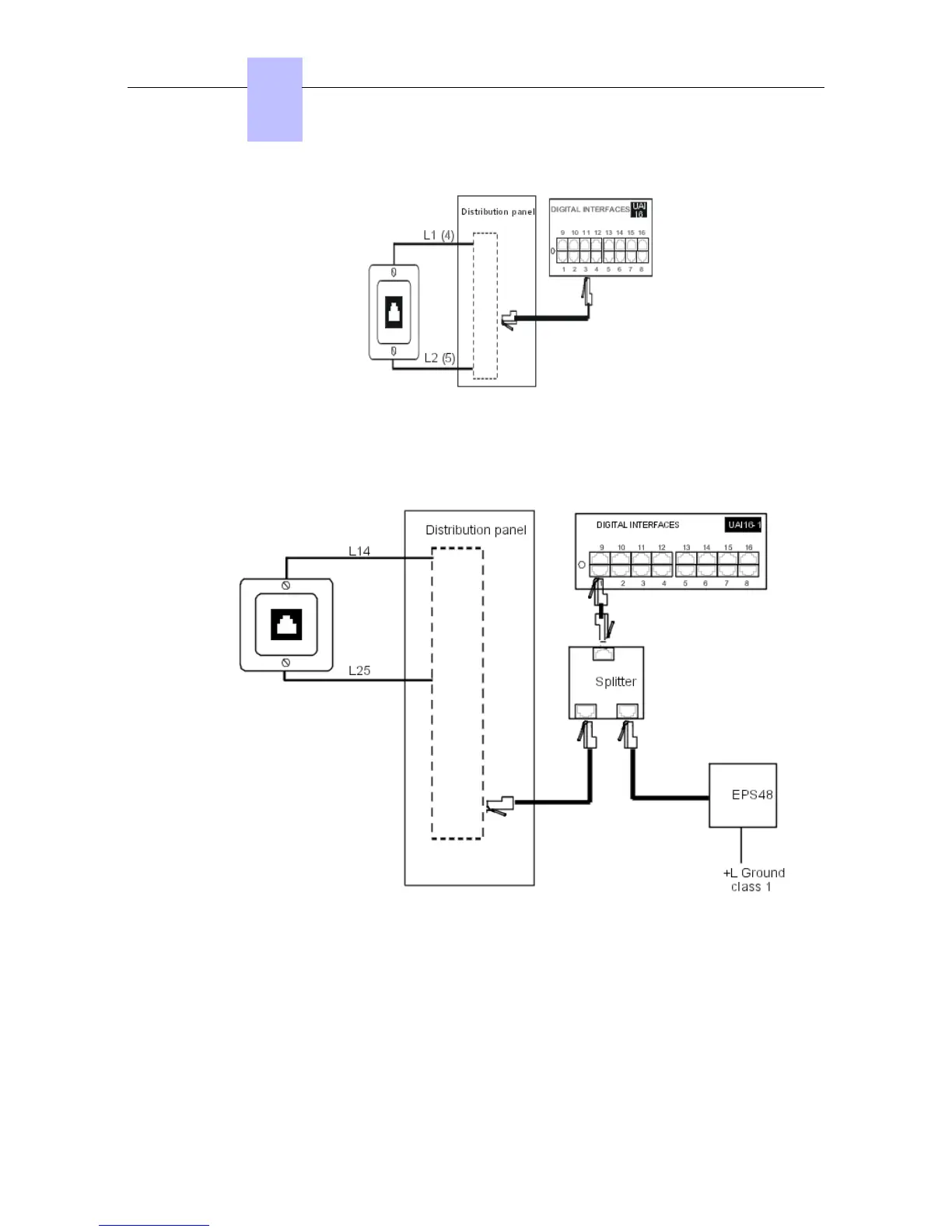

Connection with External Power Supply
A splitter allows the separation of the UA peripheral connection and the EPS48 external power
supply.
4.2.1.4.2 Connecting Analog Terminals
The terminals are equipped with a cable and a self-acting switch that plugs into the wall
socket. Each terminal is connected up with a pair of 0.5 or 0.6-mm diameter wires (the
maximum distance with 0.5-mm cabling is 1.3 km).
Chapter
4
()
4-8
