Alcatel-Lucent OmniPCX Office Installation Manual

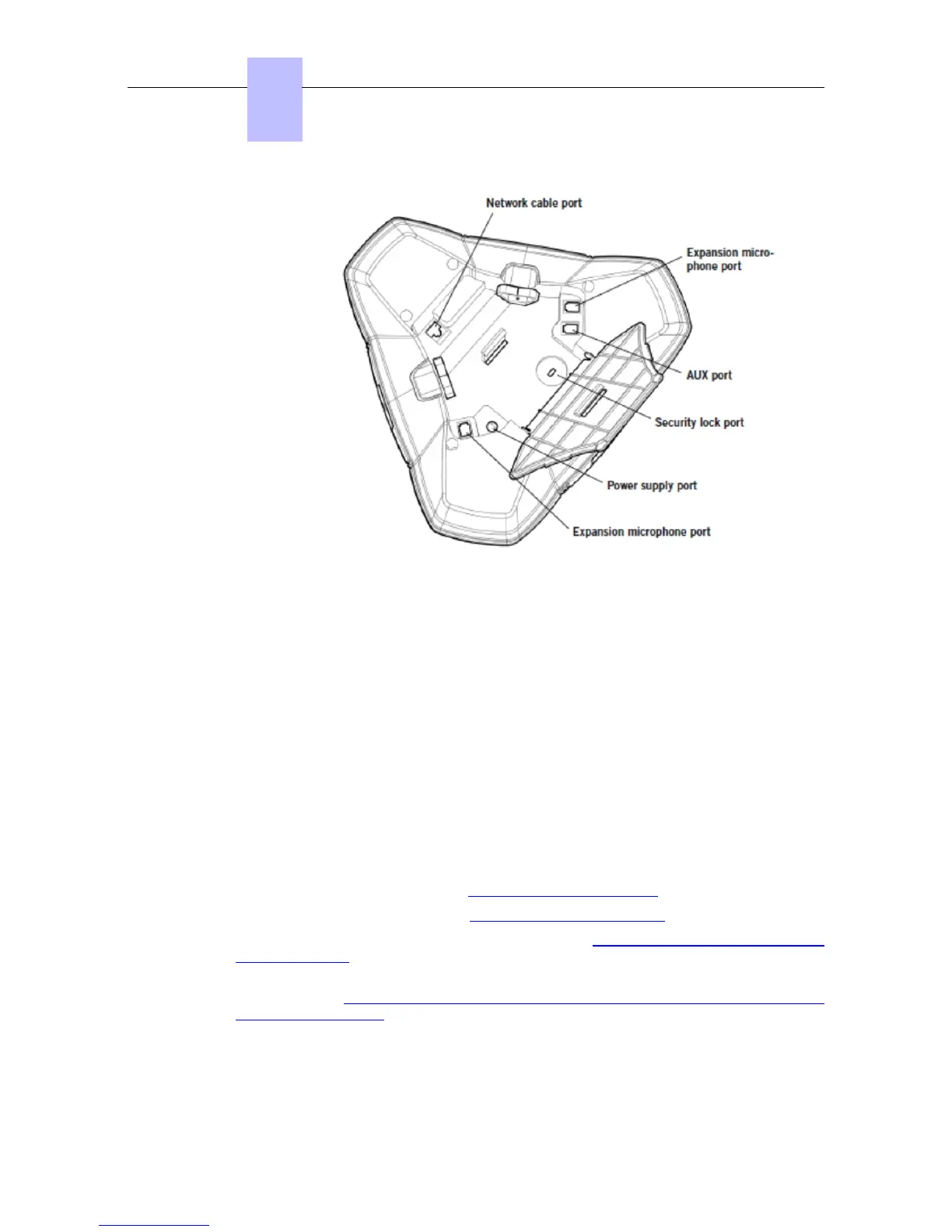

Figure 4.43: 4135 IP Conference Phone set connectors
The 4135 IP Conference Phone is a SIP device which has no handset; it is dedicated to be
used as central for conferences.
Conferences are not managed by the system, but by the device itself. Up to four 4135 IP
Conference Phones can be connected to the Alcatel-Lucent OmniPCX Office Communication
Server.
4.4.3.1.2 Commissioning the set
This section describes how to commission the set in the two available commissioning types:
- Static: commissioning is manual on the set and on OMC
- Dynamic (DHCP): the set automatically retrieves its IP address and other parameters from
a DHCP server. Complementary operations are necessary on the set and on OMC
For static commissioning, operations are:
1. Configure the user in OMC, refer to Configuring the user by OMC
2. Connect the set to the LAN, refer to Connecting the set to the LAN
3. Configure the network parameters on the set, refer to Configuring network parameters for
static initialization
4. Export the server certificate from the Alcatel-Lucent OmniPCX Office Communication
Server: refer to Exporting the server certificate from the Alcatel-Lucent OmniPCX Office
Communication Server
5. Upload the certificate on the 4135 IP Conference Phone
For dynamic commissioning, operations are:
Chapter
4
  ()
4-50
          

Alcatel-Lucent OmniPCX Office Specifications

General

VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Humidity	10% to 90% non-condensing
Type	IP PBX
Maximum Trunks	Up to 60
Voice codecs	G.711, G.729
Network Interfaces	10/100 Ethernet
Weight	Varies depending on the model/configuration
