Alcatel-Lucent OmniSwitch 6860N User Manual

Chassis and Power Supplies OmniSwitch 6860 Chassis Details
OmniSwitch 6860 Hardware Users Guide October 2022 page 3-15

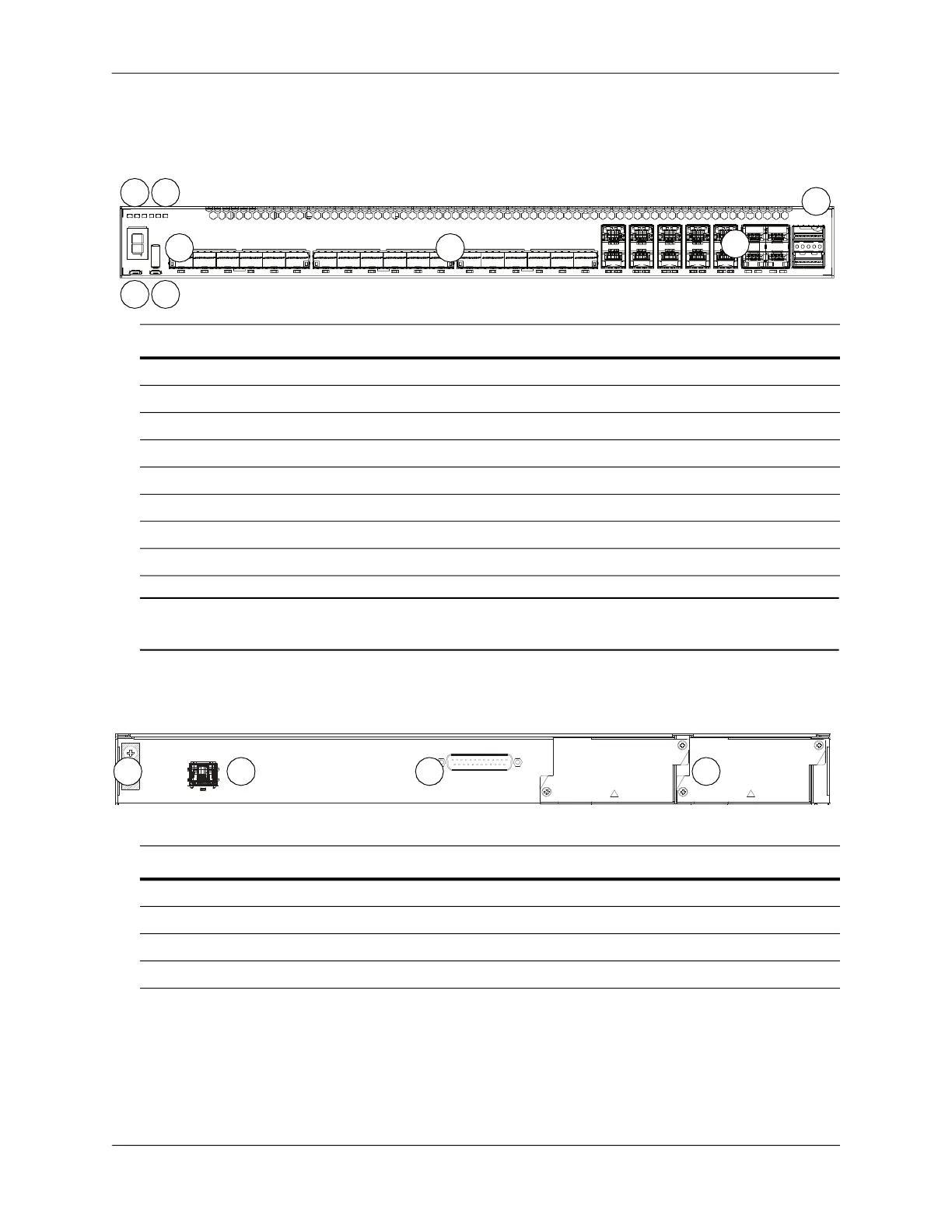

OmniSwitch 6860E-U28
OS6860E-U28 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6860E-U28 Rear Panel
Item Description
A
Virtual Chassis ID LED
B
Status LEDs
C
USB port
D
Console port
E
RS-232 port
F
(28) 1000Base-X/100Base-FX ports
G
(4) fixed SFP+ (1G/10G) ports
H
(2) 20G Virtual Chassis link ports
Item Description
A
Chassis Grounding Lug
B
Ethernet Management Port (EMP) for Out-of-Band Management
C
OmniSwitch Backup Power Supply (OS-BPS) (No longer supported.)
D
Power Supply/Fan Tray Bays
G
H
D
F
E
A B
C
EM P
PS 1
PS 2
BPS
A B C D

Alcatel-Lucent OmniSwitch 6860N Specifications

General

Model	OmniSwitch 6860N
Switching Capacity	Up to 176 Gbps
Jumbo Frame Support	Yes
Type	Network Switch
Uplink Ports	4 x 10G SFP+ ports
MAC Address Table Size	32K
Power Supply	AC or DC
Dimensions (H x W x D)	4.4 x 44 x 35 cm (1.73 x 17.32 x 13.78 in)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (non-condensing)
Management	CLI, SNMP
Features	Layer 2/3 switching, IPv4/IPv6, QoS
Form Factor	1U rack-mountable
Ports	24 or 48 x 10/100/1000Base-T ports
