OS6860-BP-PH 600W Power Supply

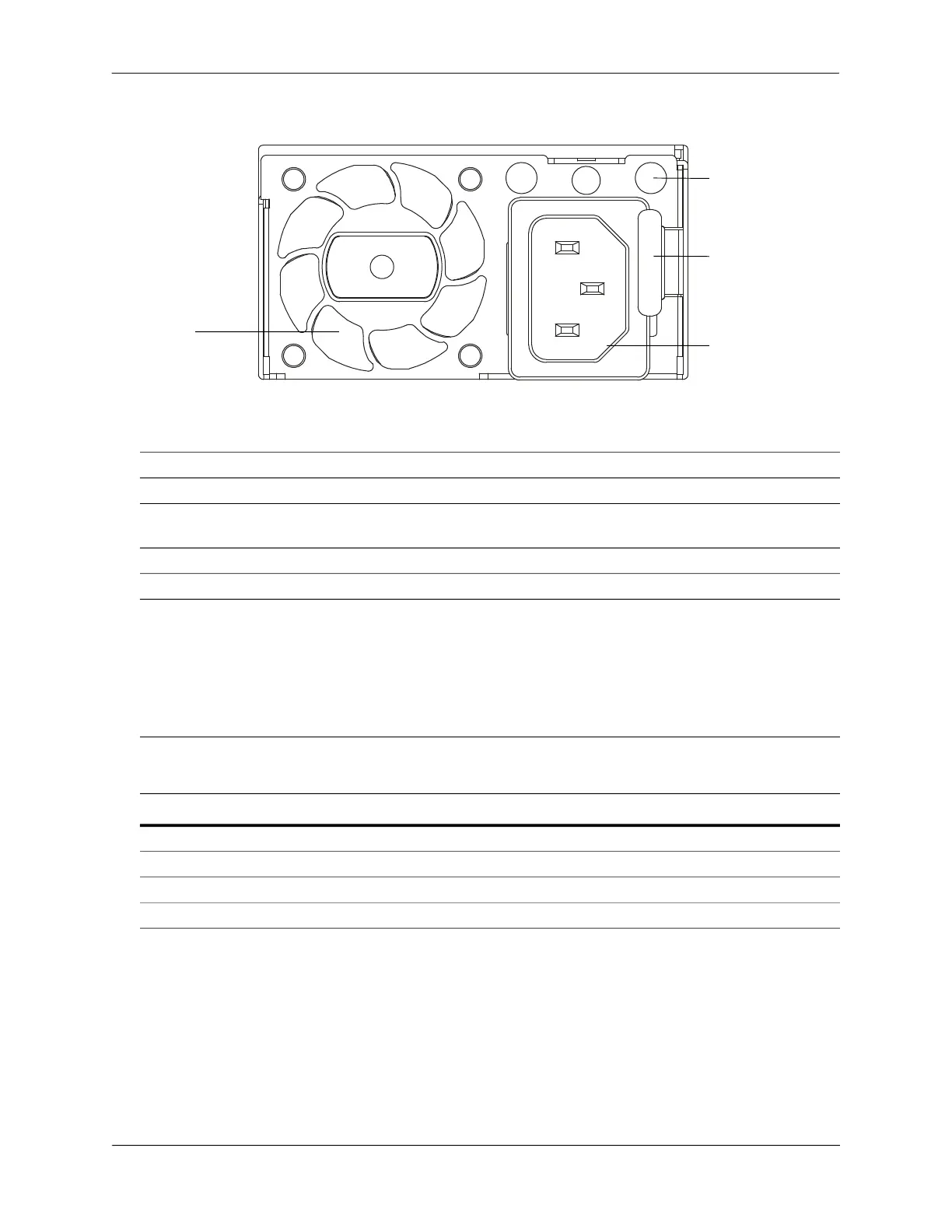

OS6860-BP-PH 600W AC Power Supply Front Panel
OS6860-BP-PH LED States
Model OS6860-BP-PH (PS-600W-AC-P)
Models Supported OS6860-P24, OS6860E-P24, OS6860E-P24Z8
Input Voltage/Current 90V to 136VAC/8.5A
180 to 264VAC/4.25A
Input Frequency 47Hz to 63Hz
Max. Output Power/Current 600W/11A
Note Mixing different wattage power supplies in a chassis is not sup-
ported.
Redundant power supplies, which must be the same model, pro-
vide electrical load sharing and increase the amount of PoE
power available. Use the show lanpower command to deter-
mine PoE power available.
LED State Description
AC OK LED Solid Green AC power is good
AC OK LED Solid Red There is an AC power issue
DC OK LED Solid Green DC power is good
DC OK LED Solid Red There is a DC power issue
AC Connector
Air Vent
Lock Tab
Status LEDs

Alcatel-Lucent OmniSwitch 6860N Specifications

General

Model	OmniSwitch 6860N
Switching Capacity	Up to 176 Gbps
Jumbo Frame Support	Yes
Type	Network Switch
Uplink Ports	4 x 10G SFP+ ports
MAC Address Table Size	32K
Power Supply	AC or DC
Dimensions (H x W x D)	4.4 x 44 x 35 cm (1.73 x 17.32 x 13.78 in)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (non-condensing)
Management	CLI, SNMP
Features	Layer 2/3 switching, IPv4/IPv6, QoS
Form Factor	1U rack-mountable
Ports	24 or 48 x 10/100/1000Base-T ports
