alcatraz Rock - Device Mode Setting - Enrollment

42Ver. 1.01
User has enrolled
successfully
*LED is white
*LED flashes green 3s
*LED top white strip flashes to show progress
Enrollment Complete
*LED flashes red 2x*LED is partially white
User may need
to try again
User must perform
enrollment steps again
Enrollment FailedEnrollment Delay

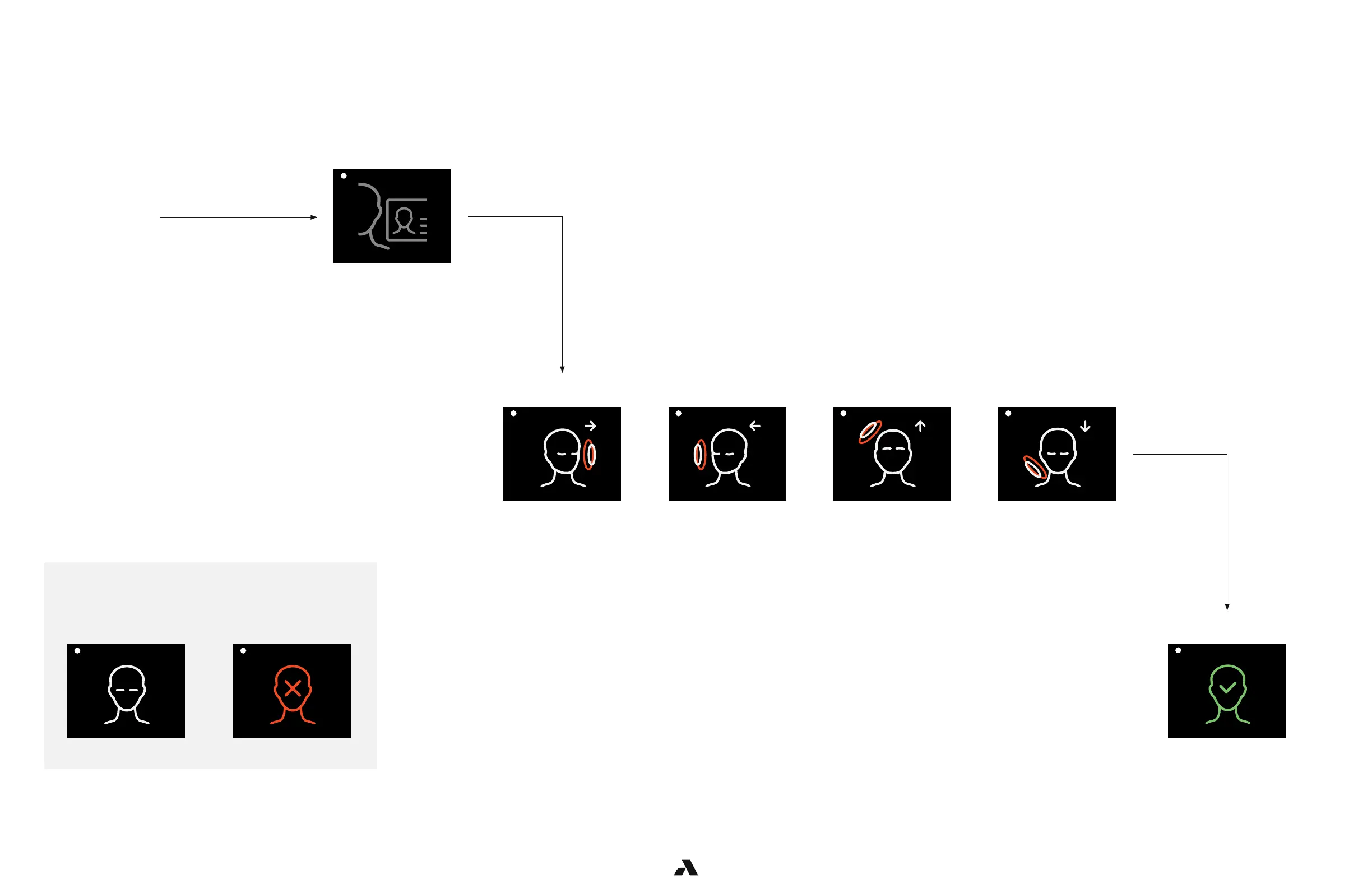

Device Mode Setting – Enrollment
This Rock has been assigned as an enrollment station with the main function of enrolling users.
The user will approach the Rock and once within range, follow the Rock’s guiding icons on the OLED display.
User needs to
swipe badge
User
approaches
for enrollment
Look DownLook UpLook LeftLook Right
