Appendix

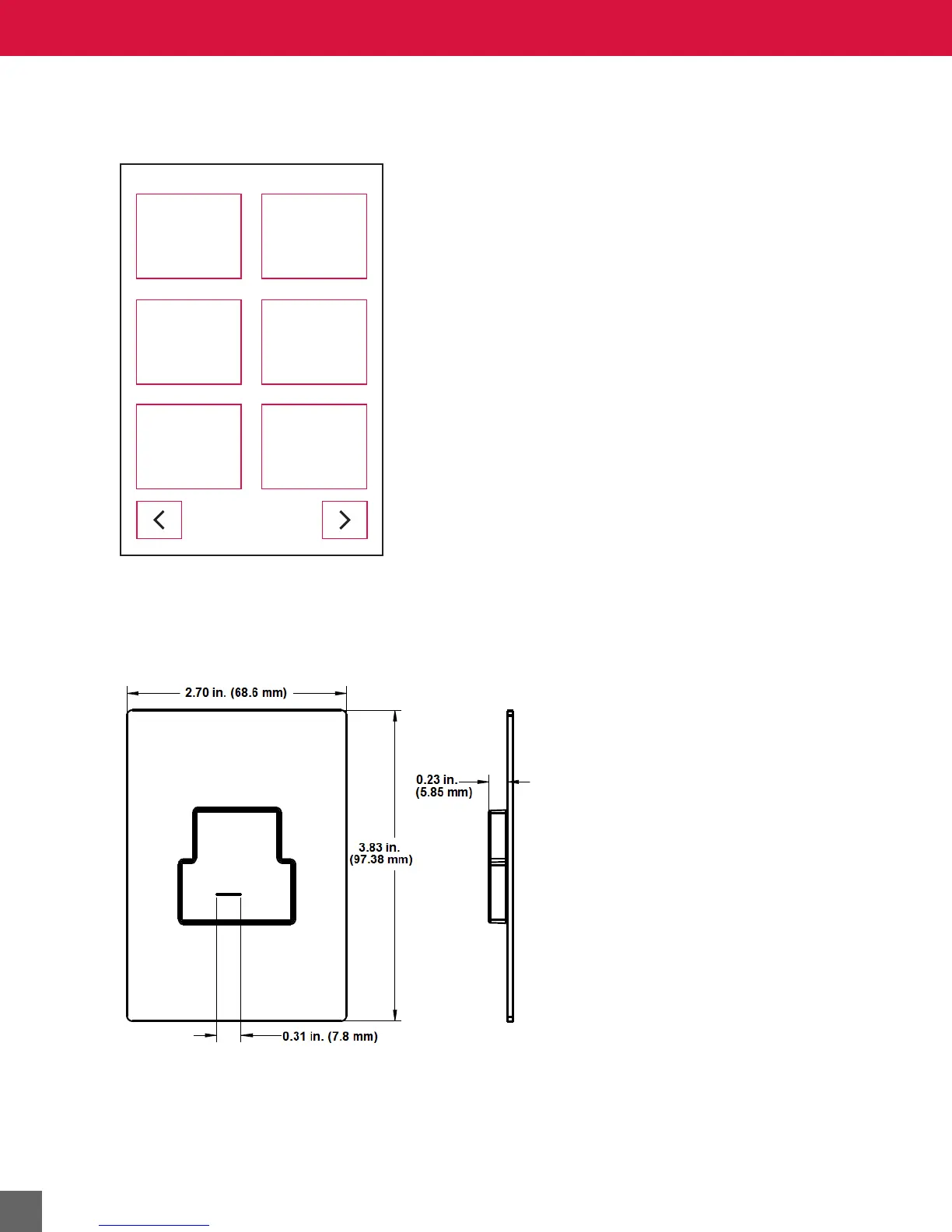

Figure 29 shows the touch-sensitive areas of the Microset 4.
Figure 29 Microset 4 touch input areas.
Optional foam accessory
The optional MS4-FOAM is a vacuum-formed foam air barrier designed to prevent air infiltration from
airflow inside the wall cavity once the Microset 4 device is installed.
Figure 30 Dimensions in inches (millimeters): Microset 4 vacuum-formed foam air barrier with a pre-cut slit for wires.
Installing the foam barrier
The foam barrier fits onto the Microset 4 wallplate and has a pre-cut slit in the foam to allow wires to
pass through easily during installation.
