8138 SIP Multicolor Strobe Light

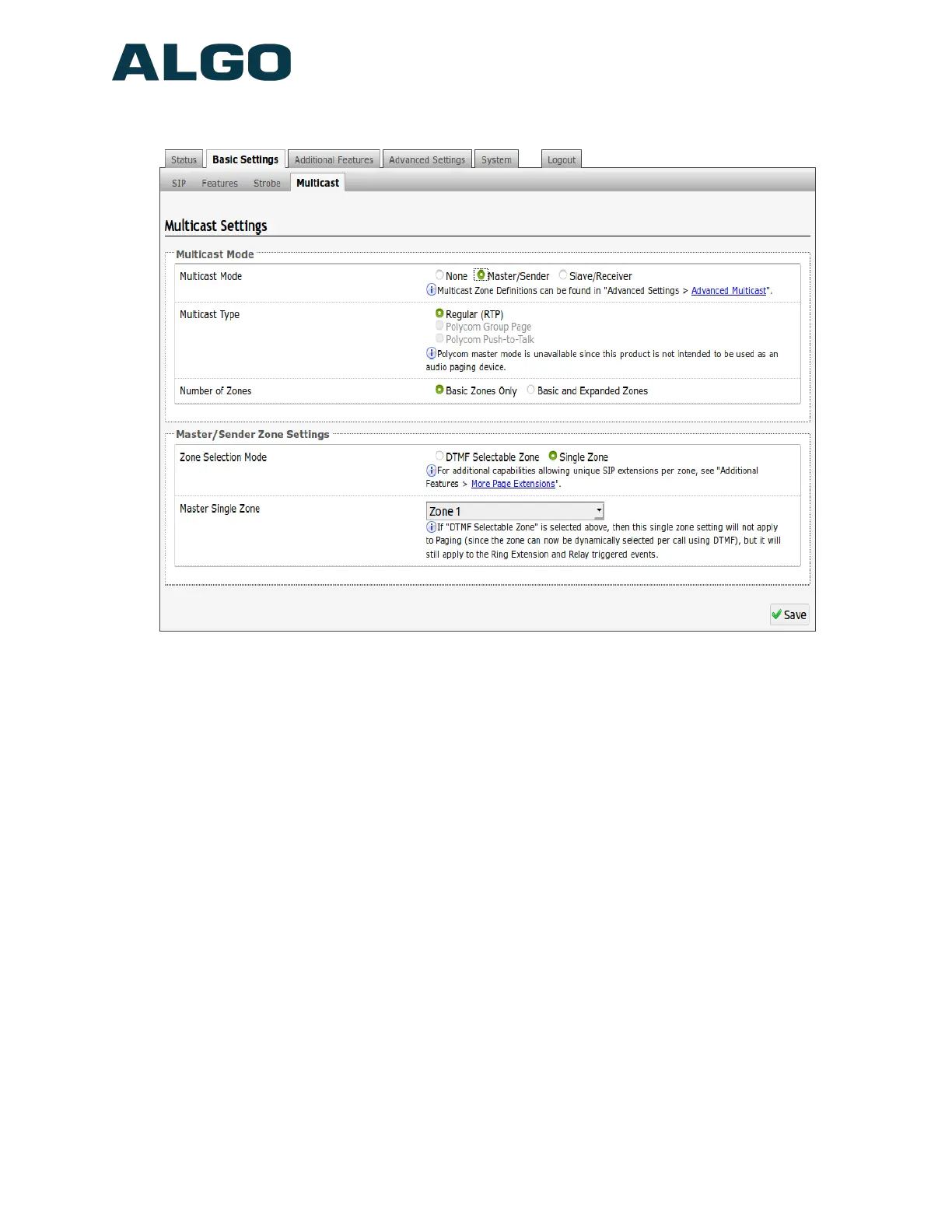

Basic Settings Tab – Multicast (Master Settings)
Multicast Mode (Master/Sender Selected)
If master is enabled the 8138 SIP will broadcast an IP stream when activated and flash a
light pattern.
Multicast Type – Regular
Select ‘Regular (RTP)’ if solely multicasting to Algo SIP endpoint(s) and/or multicast
enabled phone(s) that use RTP audio packets.
Number of Zones
Select “Basic Zones Only” if configuring nine or fewer multicast zones (shown beside
“Speaker Playback Zones”) or select “Basic and Expanded Zones” to configure up to 50
zones. The expanded zones have the same behavior as the basic Slave zones, but are
hidden by default to simplify the interface.
Document 90-00102C
11/27/2019
Page 24
