8138 SIP Multicolor Strobe Light
Web Interface Additional Features

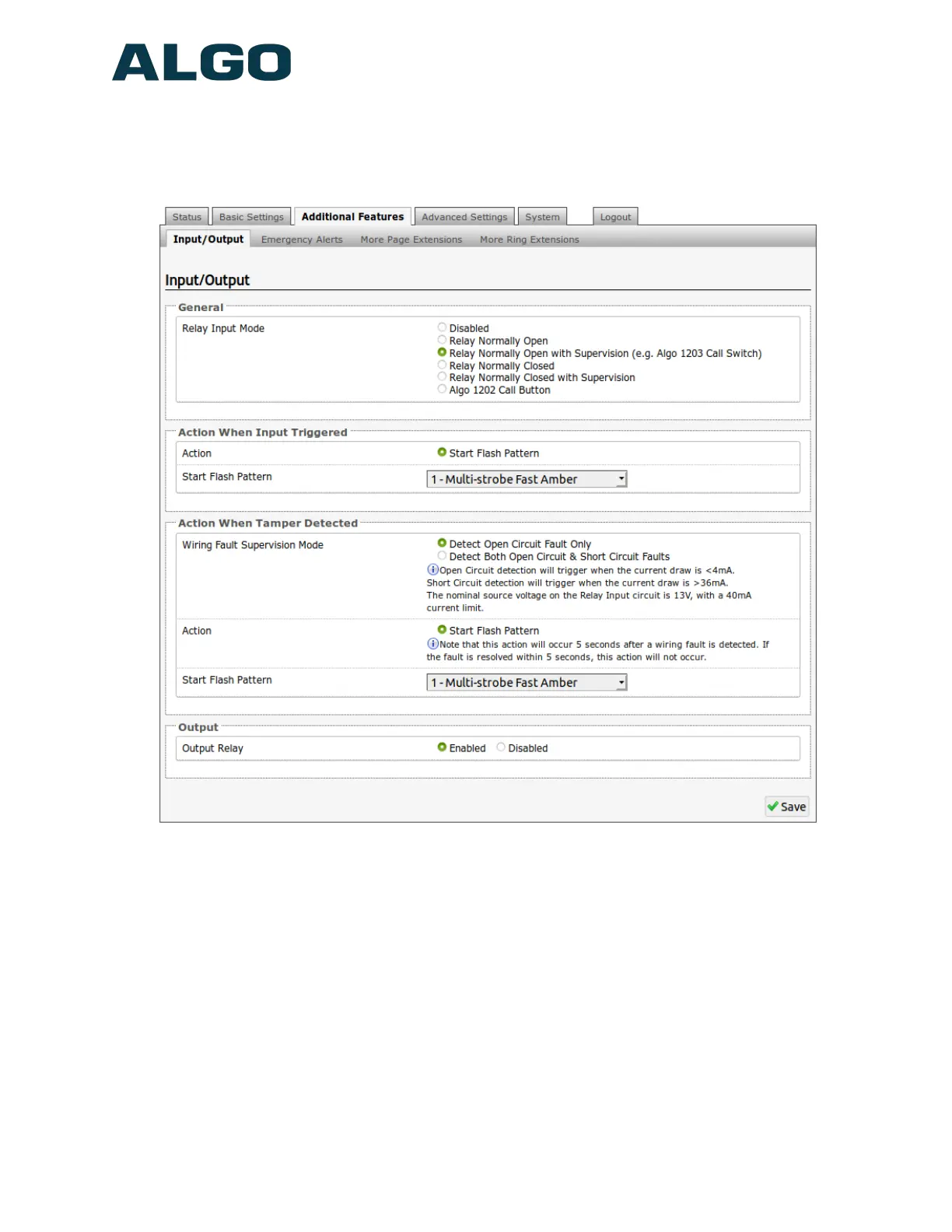

Additional Features Tab – Input/Output
Input Relay Terminal Function
When triggered by an input relay, the 8138 can flash a light pattern.
Relay Input Mode
The input relay to the 8138 SIP Strobe Light can be prompted by any normally open or
normally closed switch. For the 8138, Algo offers the 1202 Call Button and the 1203 Call
Switch with supervision. Via supervision settings, flash patterns can also be triggered if
the input switch is disconnected.
Document 90-00102C
11/27/2019
Page 27
