19ALI-NS8014VR IP PTZ Camera Installation and Setup Guide
Connect the camera to other devices as needed in the order shown below.
CAUTION

Failure of this product due to contamination of drop cable connections is considered an installation error voids the warranty of
the product.
Alarm Input / Output cables
The alarm input / output drop cable bundle provides ve wires, ALARM_IN1, ALARM_IN2, ALARM_OUT1, ALARM_COM1 and
ALARM_GND. These wires are color coded and labeled.
These connection use the ALARM_IN1 and ALARM_GND wires for alarm input 1, and ALARM_IN2 and ALARM_GND wires for
alarm input 2. Alarm inputs normally connect normally open (NO) or normally closed (NC) sensor contacts. The normal contact
state is congurable in the camera setup menus.
Connect the camera alarm output drop cables to an alarm reporting device. See the Specications section for interface requirements
and the diagram below. These connection use the ALARM_OUT1 and ALARM_COM1 wires.

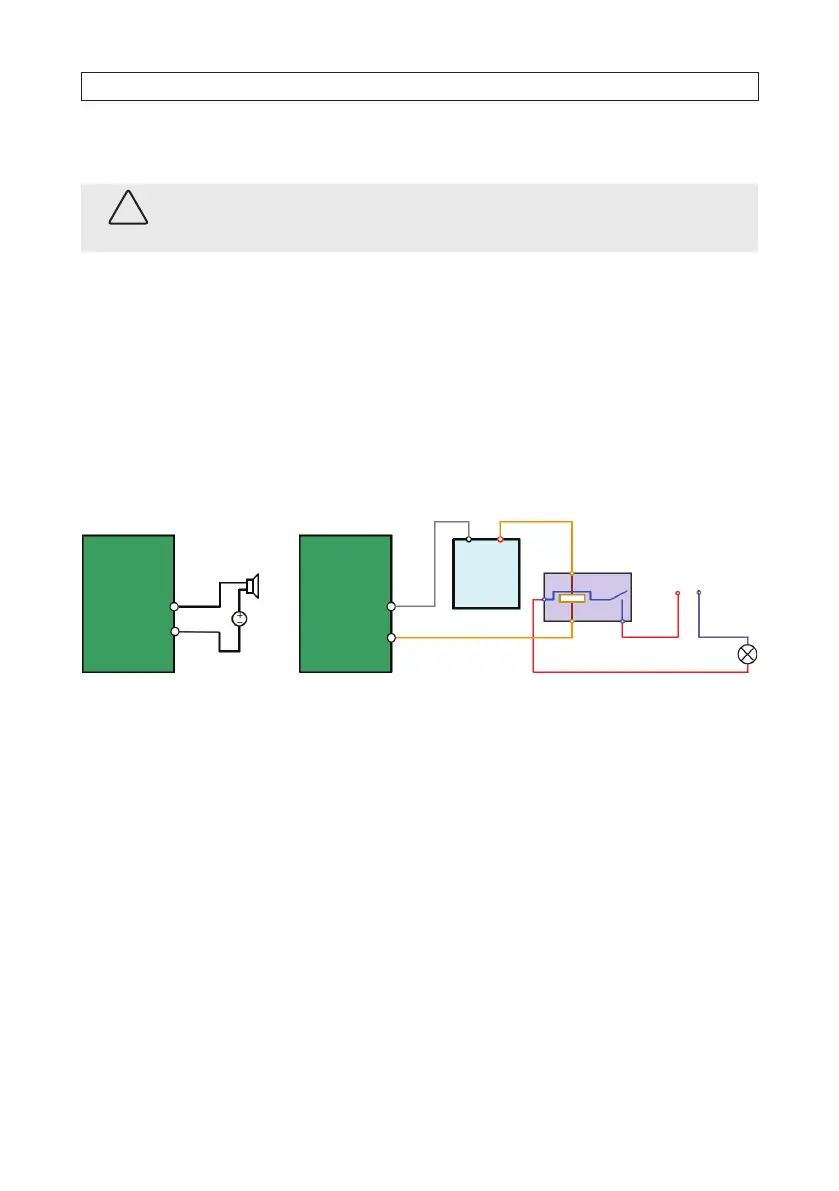

Camera
Relay output
OUT1 OUT1
COM1
COM1
DC Load
GND OUT
30 Vdc
1 A
Power Supply
JQ0-3FG
Relay
(10 A 250 Vac)
L N
~ 220 Vac
Camera
Relay output
The alarm output provides the relay output (no voltage). An external power supply is required when it connects to the alarm device.
With a DC power supply (left diagram), the input voltage must be no more than 30 Vdc, 1 A. For AC power supply (right diagram),
the external relay must be used to prevent damages to the camera and avoid the risk of electric shock.
Audio cable
The Audio drop cable provides three wires: AUDIO_OUT, AUDIO_IN and AUDIO_GND (ground). These wires are color coded and
labeled.
Connect the AUDIO_IN and AUDIO_GND wires to a line level audio input source. The input signal must be 2 ~ 2.4 Vp-p at
1 KΩ ± 10% input impedance.
Connect the AUDIO_OUT and AUDIO_GND wires to a line level audio receiver (impedance 600 Ω).
SECTION 2: INSTALLATION
