 Processor Heat-Sink
AlienwareM18xServiceManual
Removing the Processor Heat-Sink
Replacing the Processor Heat-Sink



Removing the Processor Heat-Sink

1. Follow the instructions in Before You Begin.

2. Remove the battery pack (see Removing the Battery Pack).

3. Remove the base cover (see Removing the Base Cover).

4. Remove the center control cover (see Removing the Center Control Cover).

5. Remove the keyboard (see Removing the Keyboard).

6. Remove the macro keyboard (see Removing the Macro Keyboard).

7. Remove the display assembly (see Removing the Display Assembly).

8. Remove the palm-rest assembly (see Removing the Palm Rest).

9. In sequential order (indicated on the processor heat-sink), loosen the four captive screws that secure the processor heat-sink to the system board.

10. Carefully lift the processor heat-sink out of the computer base.
Replacing the Processor Heat-Sink

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: If you remove the processor heat-sink from the computer when the heat sink is hot, do not touch the metal housing of the processor
heat-sink.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery Pack) before working inside the
computer.

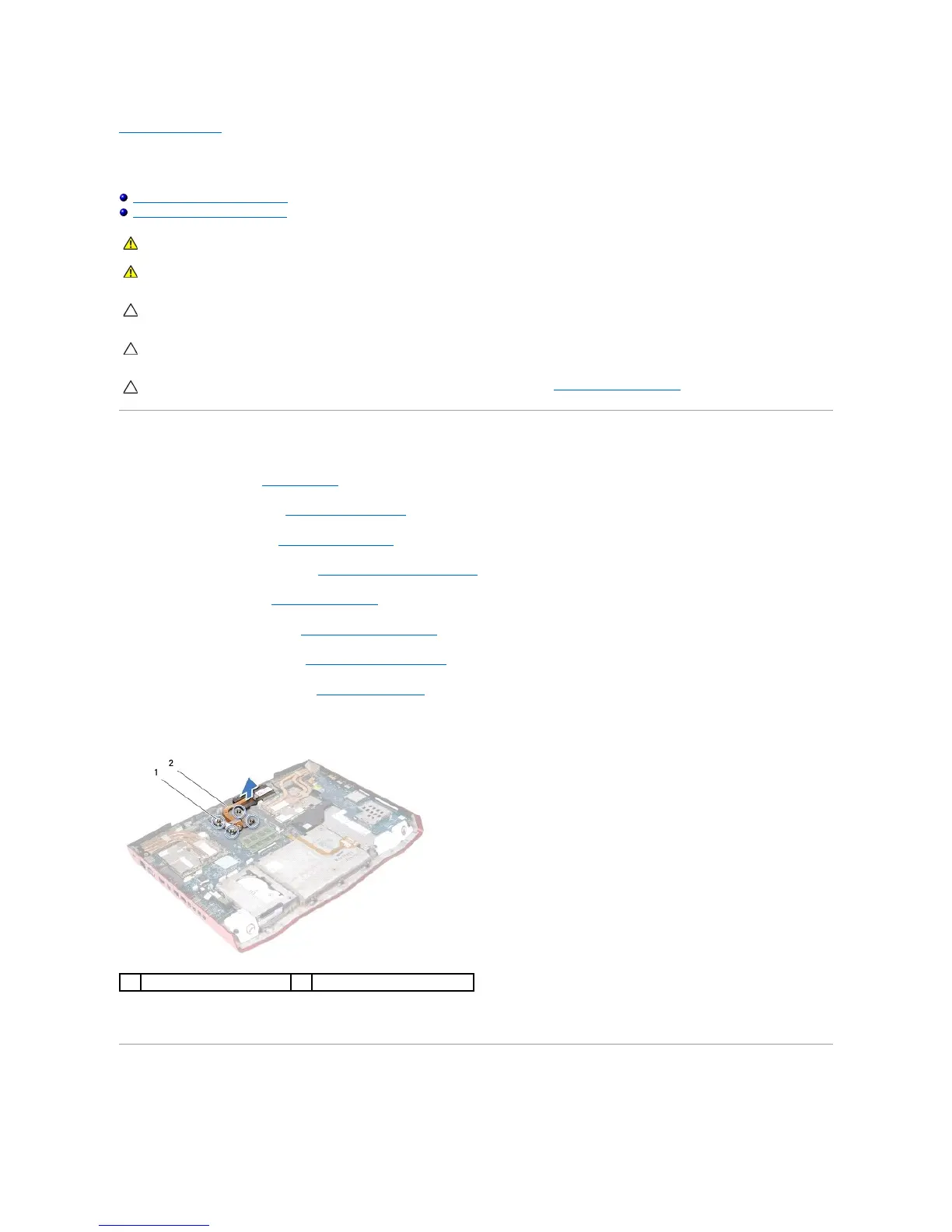

1
captive screws (4)
2
processor heat-sink
