Alienware M18X Service Manual

Back to Contents Page
 Speakers
AlienwareM18xServiceManual
Removing the Speakers
Replacing the Speakers



Removing the Speakers

1. Follow the instructions in Before You Begin.

2. Remove the battery pack (see Removing the Battery Pack).

3. Remove the base cover (see Removing the Base Cover).

4. Remove the center control cover (see Removing the Center Control Cover).

5. Remove the keyboard (see Removing the Keyboard).

6. Remove the macro keyboard (see Removing the Macro Keyboard).

7. Remove the display assembly (see Removing the Display Assembly).

8. Follow the instructions from step 10 to step 16 in Removing the Palm Rest.

9. Disconnect the speaker cable from the connector on the system board.

10. Note the speakers cable routing and remove the cable from the routing guides on the computer base.

11. Remove the four screws that secure the speakers to the computer base.

12. Lift the speakers, along with the speaker cable, off the computer base.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery Pack) before working inside the
computer.

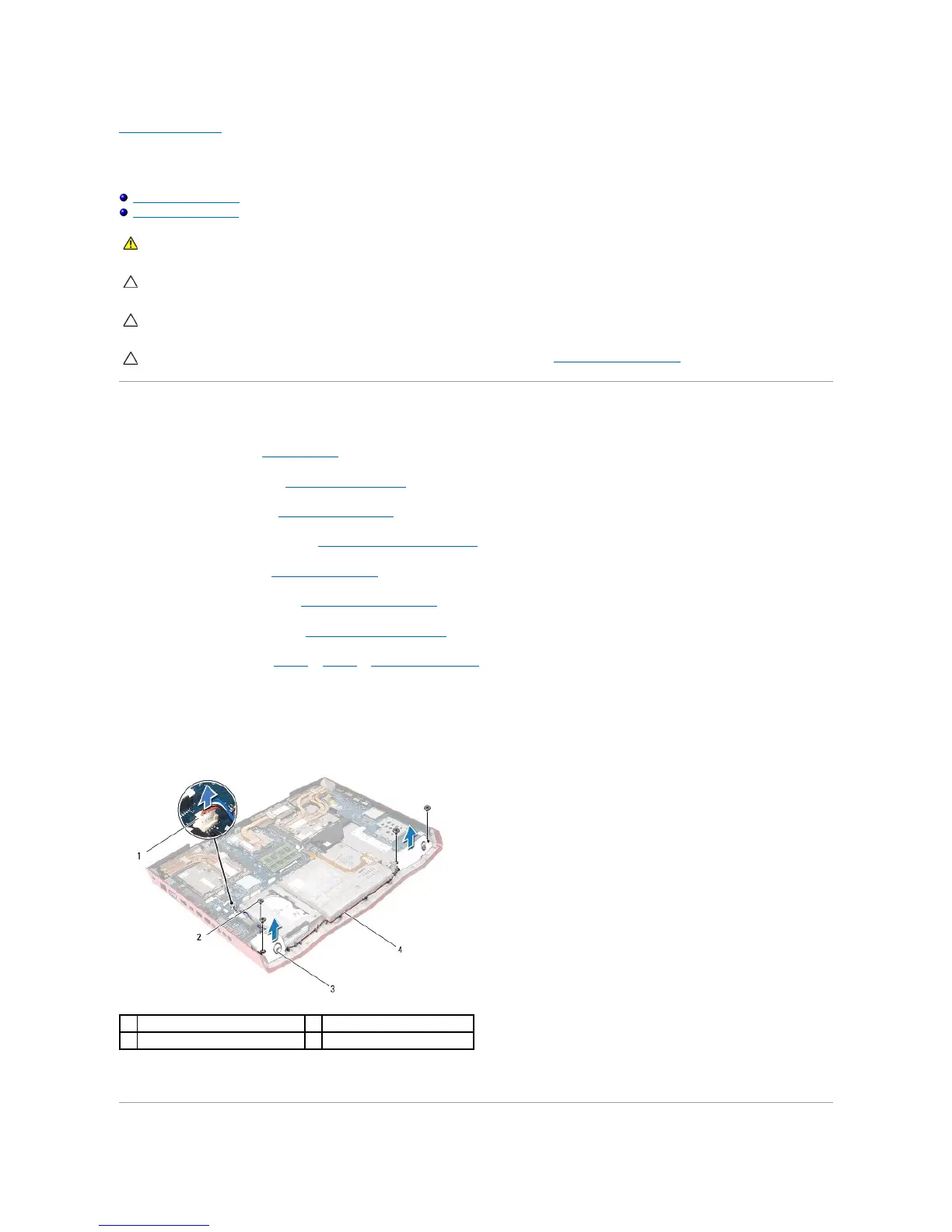

1
speakers-cable connector
2
screws (4)
3
speakers (2)
4
speakers-cable routing
