Alienware M18X Service Manual

Back to Contents Page
 Video-Card Heat-Sink(s)
AlienwareM18xServiceManual
Removing the Video-Card Heat-Sink(s)
Replacing the Video-Card Heat-Sink(s)



Removing the Video-Card Heat-Sink(s)

1. Follow the instructions in Before You Begin.

2. Remove the battery pack (see Removing the Battery Pack).

3. Remove the base cover (see Removing the Base Cover).

4. Remove the center control cover (see Removing the Center Control Cover).

5. Remove the keyboard (see Removing the Keyboard).

6. Remove the macro keyboard (see Removing the Macro Keyboard).

7. Remove the display assembly (see Removing the Display Assembly).

8. Follow the instructions from step 10 to step 16 in Removing the Palm Rest.

9. Loosen the four captive screws that secure the primary video-card heat-sink to the system board.

10. Loosen the four captive screws that secure the secondary video-card heat-sink to the system board.

11. Lift the video-card heat-sink(s) off the video card(s).

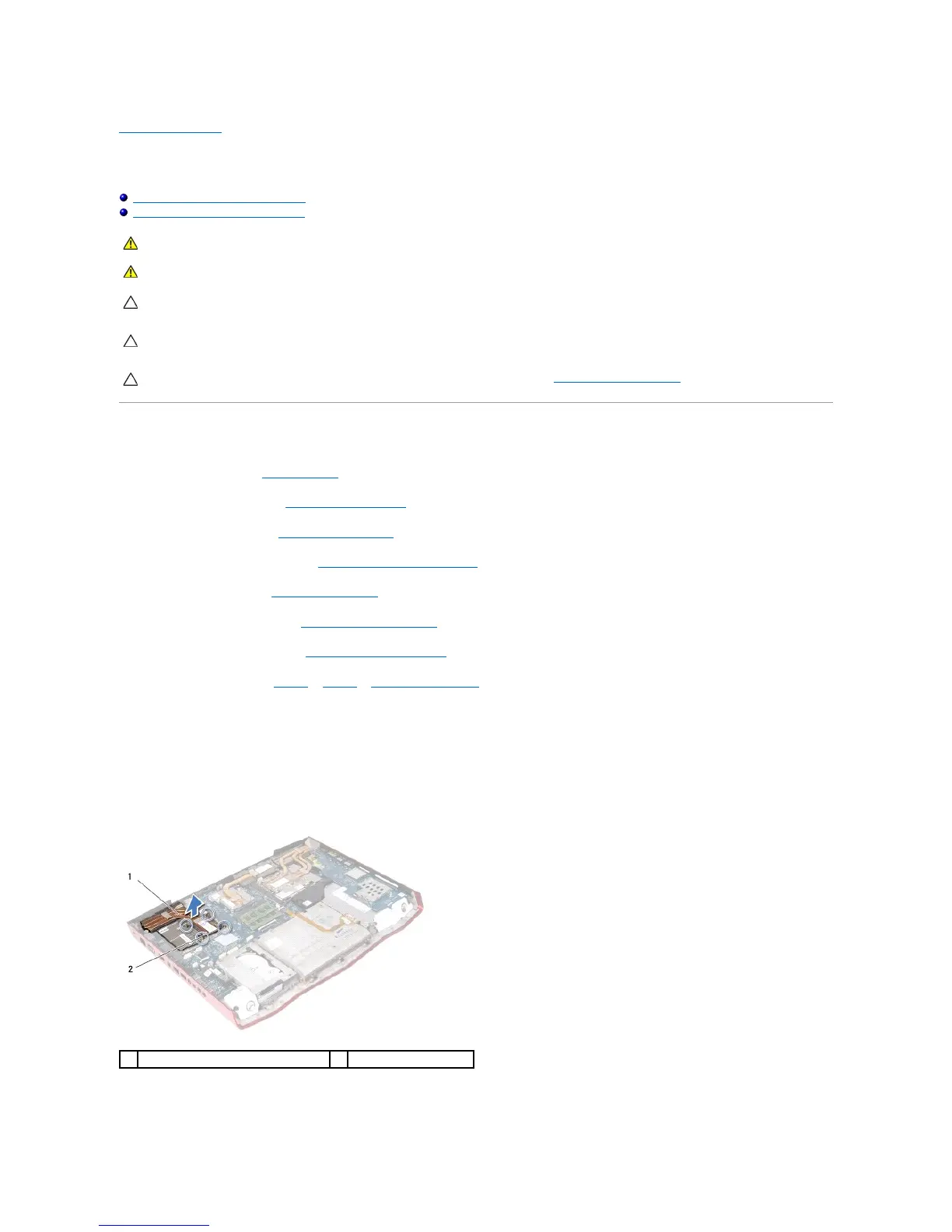

 Primary video-card heat-sink
 Secondary video-card heat-sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: The video-card assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery Pack) before working inside the
computer.
1
primary video-card heat-sink
2
captive screws (4)
