Alienware M18X Service Manual

Back to Contents Page
 I/O Board
AlienwareM18xServiceManual
Removing the I/O Board
Replacing the I/O Board



Removing the I/O Board

1. Follow the instructions in Before You Begin.

2. Remove any installed card or blank from the Media-Card Reader.

3. Remove the battery pack (see Removing the Battery Pack).

4. Remove the base cover (see Removing the Base Cover).

5. Remove the center control cover (see Removing the Center Control Cover).

6. Remove the keyboard (see Removing the Keyboard).

7. Remove the macro keyboard (see Removing the Macro Keyboard).

8. Remove the display assembly (see Removing the Display Assembly).

9. Follow the instructions from step 10 to step 16 in Removing the Palm Rest.

10. Lift the connector latch and disconnect the I/O board-cable from the connector on the system board.

11. Remove the five screws that secure the I/O board to the computer base.

12. Gently lift the I/O board and ease the connectors on the I/O board out of the slots on the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery Pack) before working inside the
computer.

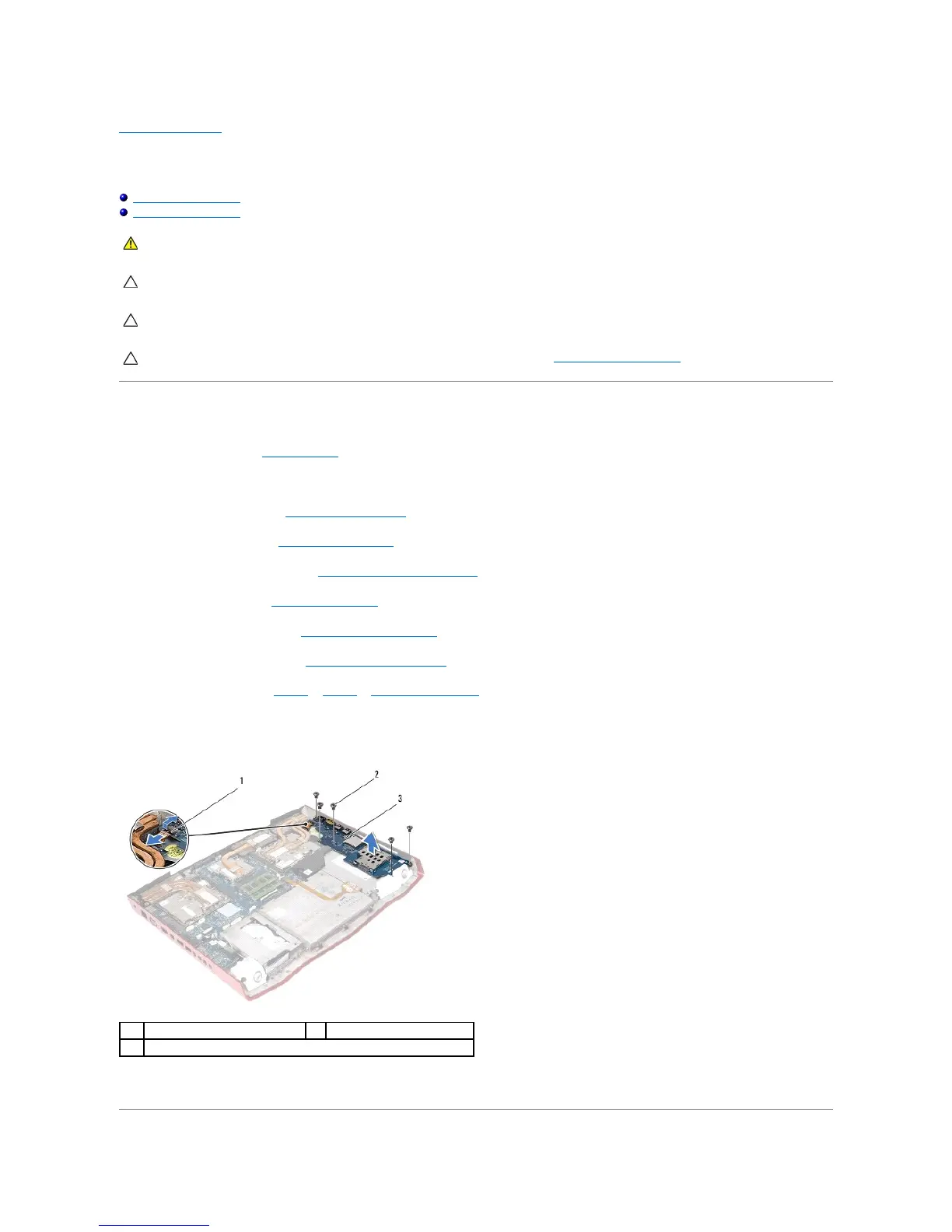

1
I/O board cable connector
2
screws (5)
3
I/Oboard
