 Video-Card Heat-Sink Fan(s)
AlienwareM18xServiceManual
Removing the Video-Card Heat-Sink Fan(s)
Replacing the Video-Card Heat-Sink Fan(s)



Removing the Video-Card Heat-Sink Fan(s)

1. Follow the instructions in Before You Begin.

2. Remove the battery pack (see Removing the Battery Pack).

3. Remove the base cover (see Removing the Base Cover).

4. Disconnect the primary video-card heat-sink fan cable from the connector on the system board.

5. Remove the primary video-card heat-sink fan cable from the routing guides on the computer base.

6. Loosen the four captive screws that secure the primary video-card heat-sink fan to the computer base.

7. Disconnect the secondary video-card heat-sink fan cable from the connector on the system board.

8. Loosen the three captive screws that secure the secondary video-card heat-sink fan to the computer base.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: The video-card assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery Pack) before working inside the
computer.

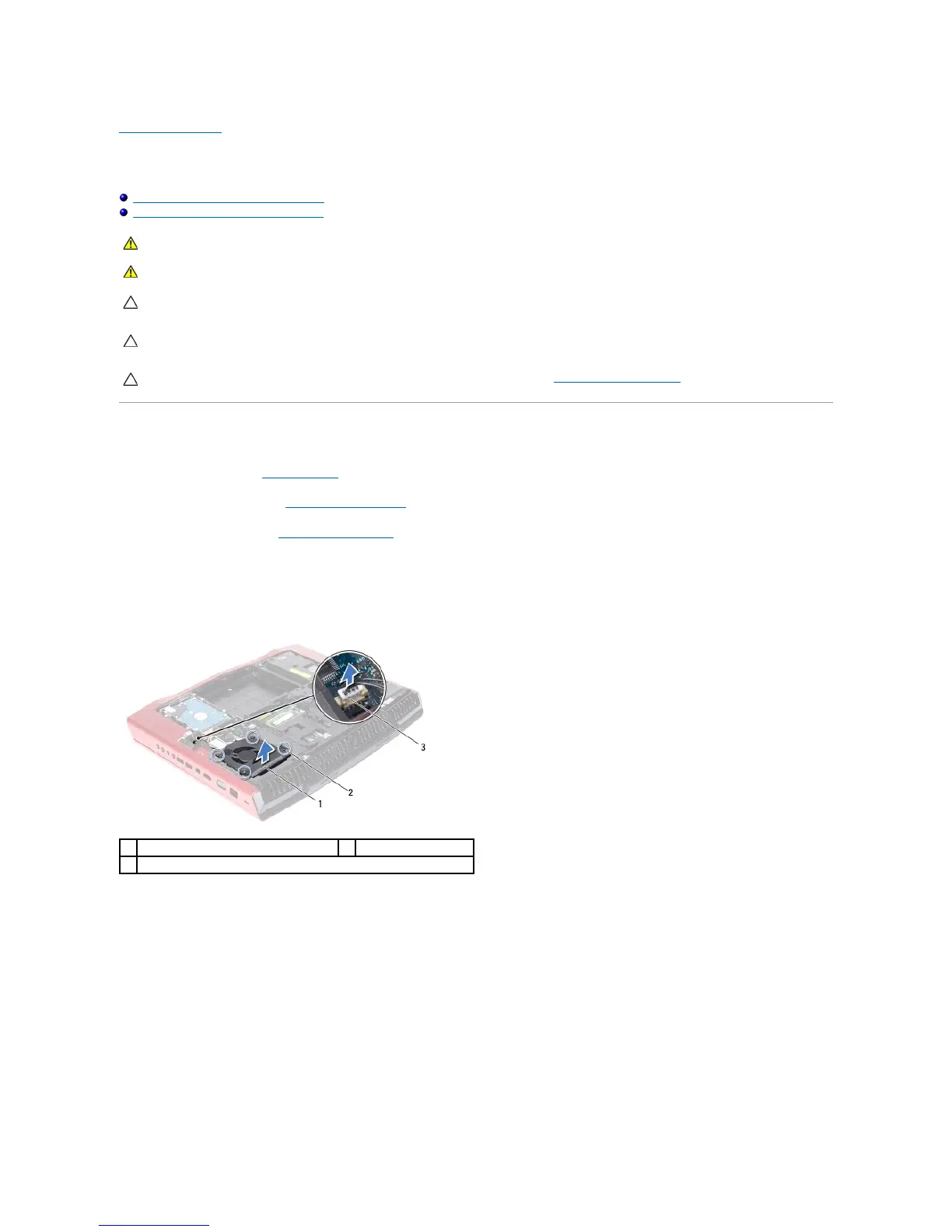

1
primary video-card heat-sink fan
2
captive screws (4)
3
primary video-card heat-sink fan cable connector
