3. Remove the battery.
4. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
5. Remove the wireless card.
6. Remove the rear I/O-cover.
7. Remove the
system board.
About this task

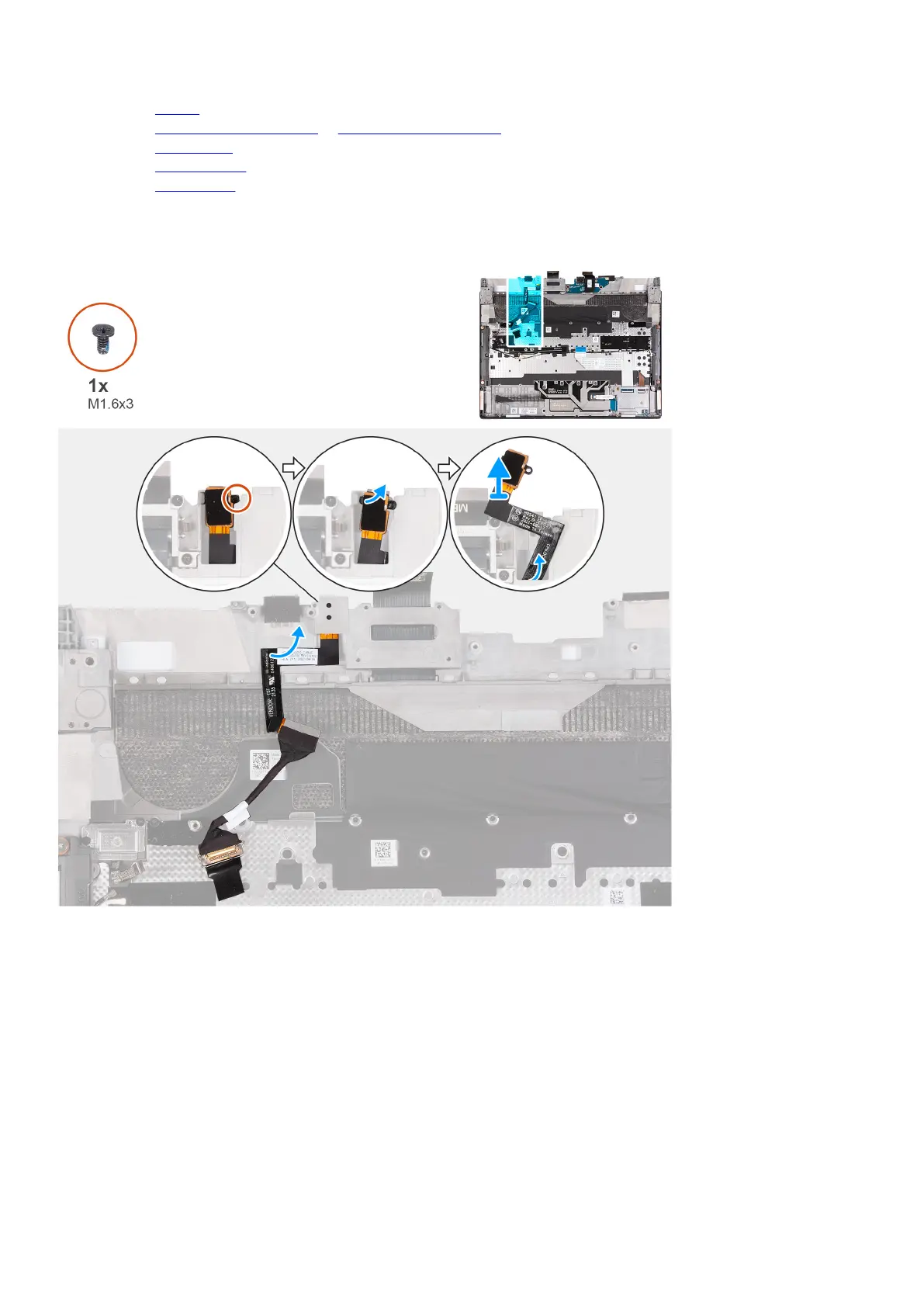

The following image(s) indicate the location of the headset port and provides a visual representation of the removal procedure.
Steps
1. Peel the headset-port cable from the palm-rest and keyboard assembly.
2. Turn the palm-rest and keyboard assembly over.
3. Remove the screw (M1.6x3) that secures the headset port to the palm-rest and keyboard assembly.
4. Using a plastic scribe, push the headset port off the slot on the palm-rest and keyboard assembly.
5. Release the headset-port cable through the slot carefully.
6. Lift the headset port, along with its cable, from the slot on the palm-rest and keyboard assembly.
53
