Installing the headset port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

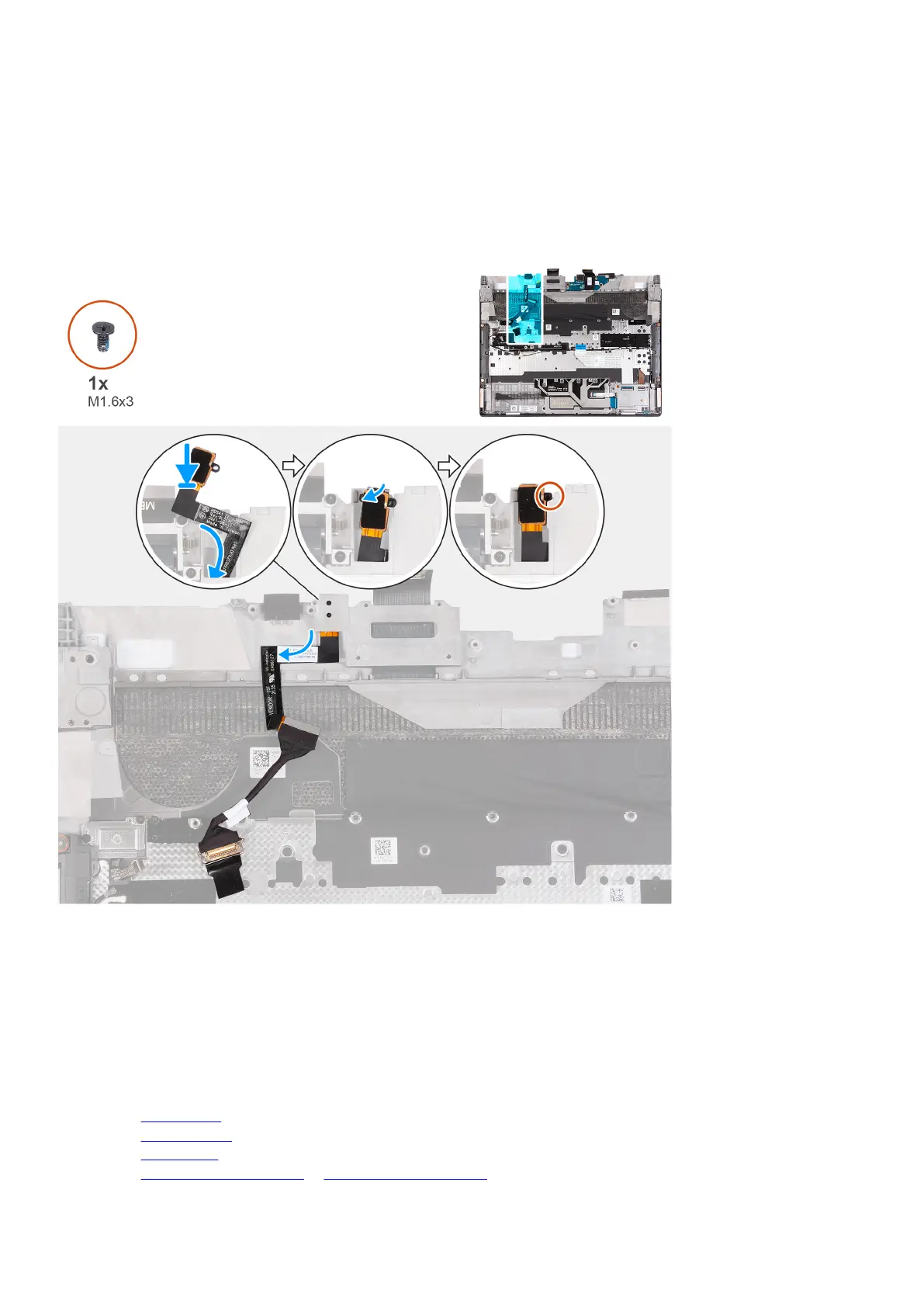

The following image(s) indicate the location of the headset port and provides a visual representation of the installation procedure.
Steps
1. Slide the headset port into the slot on the palm-rest and keyboard assembly.
2. Adhere the headset port into the slot on the palm-rest and keyboard assembly.
3. Replace the screw (M1.6x3) that secures the headset port to the palm-rest and keyboard assembly.
4. Turn the palm-rest and keyboard assembly over.
5. Adhere the headset-port cable to the palm-rest and keyboard assembly.
Next steps
1. Install the
system board.
2. Install the rear I/O-cover.
3. Install the wireless card.
4. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
54
