ALKOTA 5305A - Control Panel Assembly

9
Control panel
Assembly, Control Panel
2
15
4
3
16
18
1
7
17
6
5
14
13

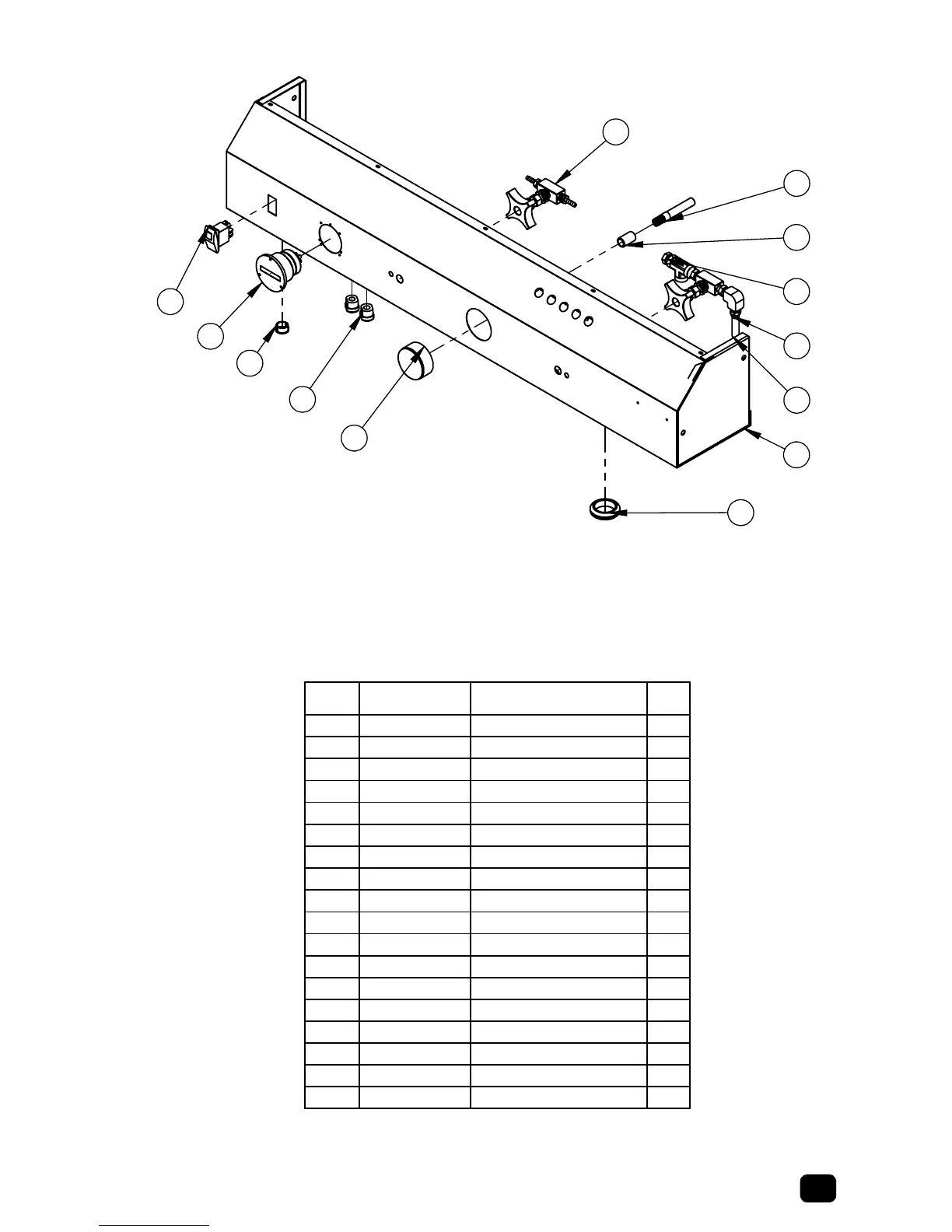

ASSEMBLY, CONTROL PANEL
2/28/2008
ITEM
NO.
PART NUMBER PART DESCRIPTION QTY.
1 4205A-00301 WELDMENT,PANEL CONTROL 1
2
4205A-00351 ASSEMBLY, METERING 1
3
5305A-00350
ASSEMLBY, METERING
PRESSURE
1
4
E06-00003 COUPLING,FULL 1
5
F04-00411 BUSHING, STRAIN RELIEF 2
6
F04-00420 BUSHING, INSULATION 1
7
F04-00450 GROMMET 1
8
F04-00610 TERM, FORK 3
9
F04-00611
TERMINAL, QUICK
DISCONNECT
2
10
F04-00612 TERMINAL,RING-16-14 WIRE 1
11
F04-00615 TERM, SPLICE 4
12
F04-00616 TERM, INSULATOR 4
13
F04-00700 SWITCH, ROCKER - 115VAC 1
14
F07-00020 METER, HOUR 1
15
K02-02224A2 ASSEMBLY, HOSE 1
16
W02-00033-P CLAMP, HOSE 1
17
Y02-00015 GAUGE, PRESSURE 1
18
Z01-00613-2 HOSE, POLYBRAID 1
