Air Band Adjustment
Note: The air band adjustment on this burner has been preset at the factor (elevation approximately 1400
feet). On equipment installed where elevation is substantially different, the air band(s) must be readjusted.
1. Loosen the cap screw retaining the air bands.
2. Move the air bands as indicated below with the machine in operation. Note: The air band should
be set so the exhaust gives the smoke spot specied in the GENERAL section of the MACHINE
SPECIFICATIONS on a Shell-Bacharach scale. If a smoke tester is not available, a smoky
exhaust, oily odor, or sweet smell indicates insufcient air while eye-burning fumes indicate too
much air.
3. Tighten the cap screw retaining the air bands.
Fuel Pump Filter
Suntec Pump
1. Shut off fuel supply.
2. Loosen the 4 screws holding the cover to the fuel pump housing.
3. Take cover and cover gasket off and pull strainer off of pump housing.
4. Clean out any dirt remaining in the bottom of strainer cover. If there is evidence of rust inside of
the unit, be sure to remove water in supply tank and fuel lter.
5. Turn on fuel supply. Failure to do so will result in fuel pump damage.

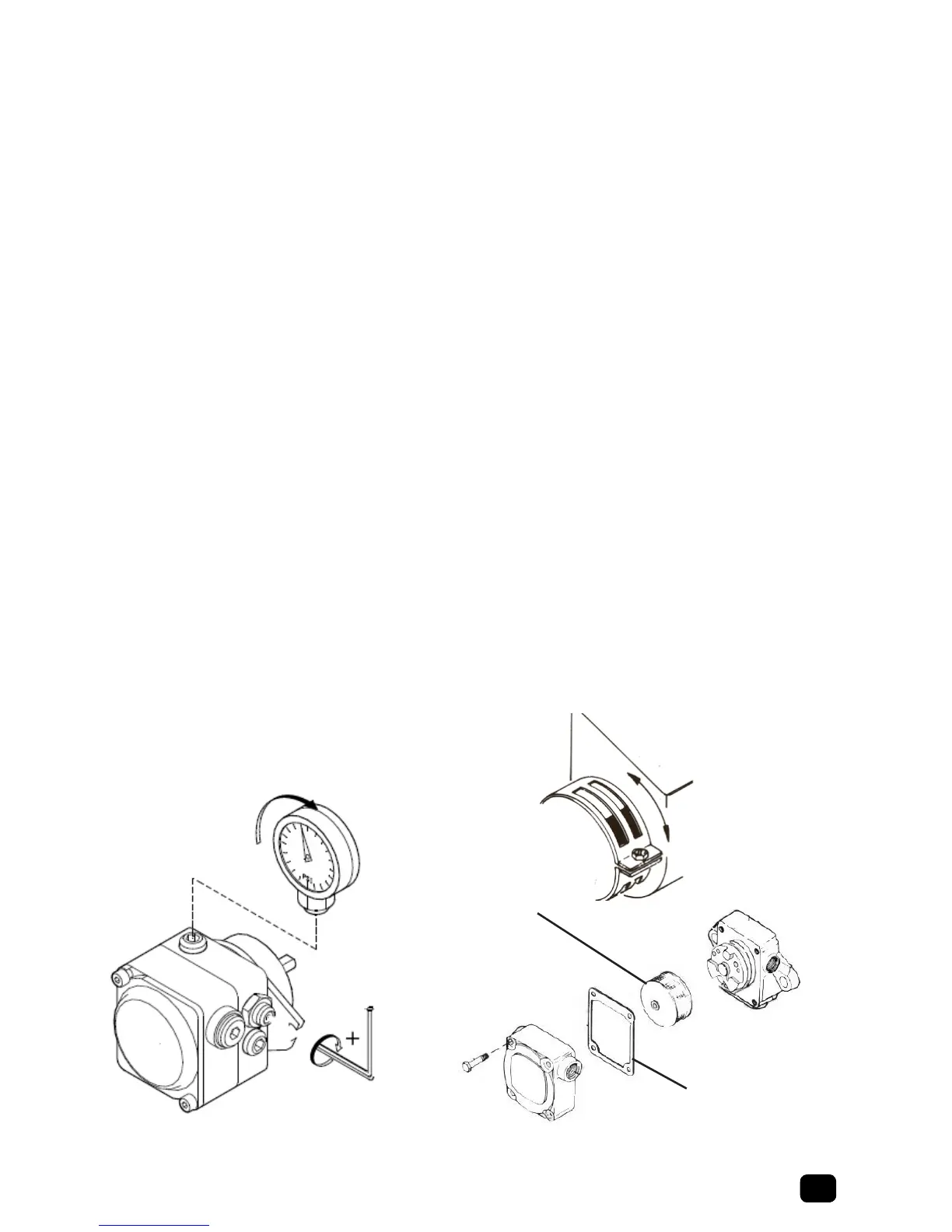

Fuel Pump Pressure Adjustment
1. Install a 0-200 PSI Pressure Gauge.
2. Remove Plug on top of the fuel pump.
3. Insert a 1/8” Allen Wrench and turn clockwise to increase pressure and counter clockwise to
decrease.
4. Remove Gauge and reinstall plug.
Fuel Filter, Adjustment Air Band , Fuel Pressure
Burner Maintenance
