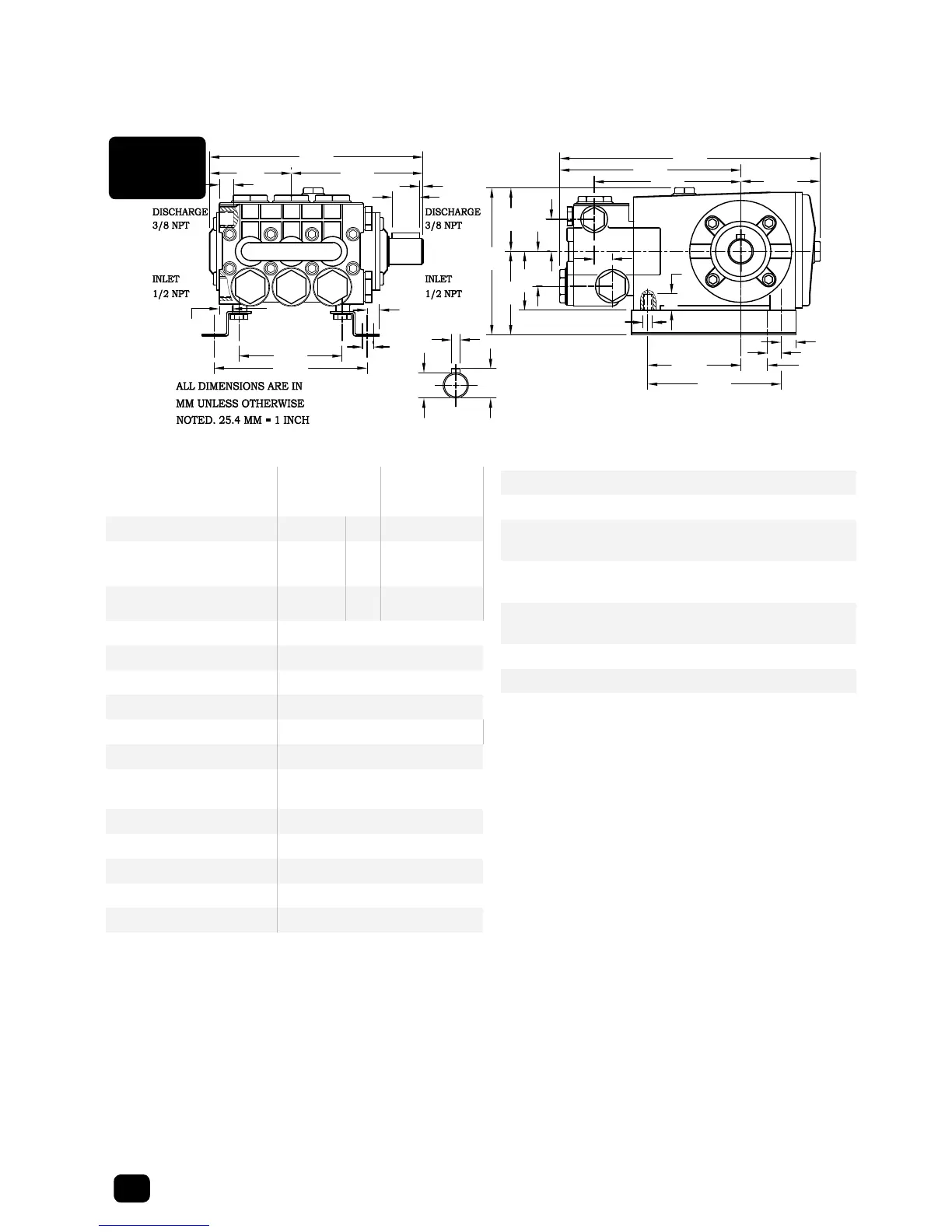

ALKOTA 5305A - Pump Model Specifications; Pump Component Torque Values

22
Pump
36
37
75
105
176
71
176
106
204
310
19
13
M10 X 1.5
15
30
42
103
145
13
98
126
224
105
12
159
11
8
27
24
12
35
3
PERFORMANCE
Discharge Volume 5.6 GPM / 21.2LPM
Pump Head Pressure 3500PSI / 241.0BAR
GENERAL
Crankshaft Rotation
Clockwise/
Counterclockwise
Maximum Speed 1450 RPM
Maximum Pumped Fluid
Temp.
165˚F / 74˚C
Inlet Pressure
-9 in HG@ 75˚F to
116 PSI
-0.3 BAR @ 24˚ to
8 BAR
Weight (Wet) 32.0 lbs / 14 kg
LUBRICATION
Oil Change
Interval
After 1
st
50 hrs and 500 hrs
Oil Type SAE 20, SAE 30 (non-detergent)
Crankcase
Capacity
40.6  oz / 1.2LT
TORQUE
Valve Plug 72 ft lbs / 10.0 kg M
Mount to Crankcase 32 ft lbs / 2.2 kg M
Connecting Rod cap to Connecting
Rod
15 ft lbs / 1.6 kg M
*Plunger Screw to Crosshead 15 ft lbs / 2.0 kg M
Rear Crankcase cover to Crankcase 8.0 ft lbs / 1.0 kg M
Head to Crankcase 22.0 ft lbs / 2.0 kg M
*Note: When plunger nut is removed, install a new copper washer and
inger washer to ensure proper t and seal of ceramic plunger.
Each time the plunger screw is torqued, copper washers form to plunger.
If same copper washers are reused cracking or a poor seal may result.
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 2
O-Ring 37 6
N07-99086 Retainer & O-Rings
O-Ring 25 3
O-Ring 26 3
Retainer 27 3
N07-99097 Plunger Packing
O-Ring 25 3
O-Ring 26 3
Packing, V 28 3
Adapter, Male 29 3
N07-99084 Plugs & O-Rings
Plug 39 6
O-Ring 40 6
N07-99096 Plunger Packing w/ Retainer
Pump Specications
N07-00225 (TSS1511)
PERFORMANCE
Discharge Volume 4.0 GPM / 15.0LPM
Pump Head Pressure
2700PSI / 172.0BAR
GENERAL
Crankshaft Rotation
Clockwise/
Counterclockwise
Maximum Speed 1450 RPM
Maximum Pumped Fluid
Temp.
165˚F / 74˚C
Inlet Pressure
-9 in HG@ 75˚F to
116 PSI
-0.3 BAR @ 24˚ to
8 BAR
Weight (Wet) 32.0 lbs / 14 kg
LUBRICATION
Oil Change
Interval
After 1
st
50 hrs and 500 hrs
Oil Type SAE 20, SAE 30 (non-detergent)
Crankcase
Capacity
40.6  oz / 1.2LT
TORQUE
Valve Plug 72 ft lbs / 10.0 kg M
Mount to Crankcase 32 ft lbs / 2.2 kg M
Connecting Rod cap to Connecting
Rod
15 ft lbs / 1.6 kg M
*Plunger Screw to Crosshead 15 ft lbs / 2.0 kg M
Rear Crankcase cover to Crankcase 8.0 ft lbs / 1.0 kg M
Head to Crankcase 22.0 ft lbs / 2.0 kg M
*Note: When plunger nut is removed, install a new copper washer and
inger washer to ensure proper t and seal of ceramic plunger.
Each time the plunger screw is torqued, copper washers form to plunger.
If same copper washers are reused cracking or a poor seal may result.
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99086 Retainer & O-Rings
O-Ring 25 3
O-Ring 26 3
Retainer 27 3
N07-99097 Plunger Packing
O-Ring 25 3
O-Ring 26 3
Packing, V 28 3
Adapter, Male 29 3
N07-99084 Plugs & O-Rings
Plug 39 6
20140530
Water Pump N07-00011, N07-00016, N07-00024
Pump Model
N07-00224
TS1021
N07-00225
TS1511
Maximum Volume (GPM) 4.5
5.
6
4.0
Max. Discharge Pressure
(PSI)
3500
17
00
3500
Maximum Pump Speed
(RPM)
1125
14
50
1450
Maximum Inlet Pressure 125 PSI
Maximum Inlet Vacuum 9 ft. water (7.9 in. Hg)
Bore .787 in. / 20 mm
Stroke .472 in. / 12 mm
Crankcase Oil Capacity 40.6 oz.
Crankshaft Rotation Clockwise & Counterclockwise
Maximum Fluid
Temperature
165˚F
Inlet Port Thread 1/2-14 BSPP-F
Discharge Port Thread 3/8-19 BSPP-F
Shaft Diameter .945 in. / 24 mm
Weight 32 lbs.
Dimensions 12.2 x 9.2 x 6.9 in.
TORQUE
Valve Plug (Item 41) 95.9 ft lbs / 130 N-M
Mount to Crankcase (Item 24) 29.4 ft lbs / 40 N-M
Connecting Rod cap to Connecting Rod
(Item 8
14.7 ft lbs / 20 N-M
*Plunger Screw to Crosshead(Item 42) 14.7 ft lbs / 20 N-M
Rear Crankcase cover to Crankcase
(Item 27)
7.3 ft lbs / 10 N-M
Head to Crankcase (Item 38) 22.1 ft lbs / 30 N-M
Bearing Retainer (Item 1) 14.7 ft lbs / 20 N-M
Oil Level Indicator (Item 29) 14.7 ft lbs / 20 N-M
Drain Plug (Item 13) 14.7 ft lbs / 20 N-M
Plug to Head (Item 33) 29.4 ft lbs / 40 N-M
*Note: When plunger nut is removed, install a new copper washer
and flinger washer to ensure proper fit and seal of ceramic plunger.
Each time the plunger screw is torqued, copper washers form to plunger.
If same copper washers are reused cracking or a poor seal may result.
Water Pump N07-00011, N07-00016, N07-00024
Pump Model
N07-00224
TS1021
N07-00225
TS1511
Maximum Volume (GPM) 4.5
5.
6
4.0
Max. Discharge Pressure
(PSI)
3500
17
00
3500
Maximum Pump Speed
(RPM)
1125
14
50
1450
Maximum Inlet Pressure 125 PSI
Maximum Inlet Vacuum 9 ft. water (7.9 in. Hg)
Bore .787 in. / 20 mm
Stroke .472 in. / 12 mm
Crankcase Oil Capacity 40.6 oz.
Crankshaft Rotation Clockwise & Counterclockwise
Maximum Fluid
Temperature
165˚F
Inlet Port Thread 1/2-14 BSPP-F
Discharge Port Thread 3/8-19 BSPP-F
Shaft Diameter .945 in. / 24 mm
Weight 32 lbs.
Dimensions 12.2 x 9.2 x 6.9 in.
TORQUE
Valve Plug (Item 41) 95.9 ft lbs / 130 N-M
Mount to Crankcase (Item 24) 29.4 ft lbs / 40 N-M
Connecting Rod cap to Connecting Rod
(Item 8
14.7 ft lbs / 20 N-M
*Plunger Screw to Crosshead(Item 42) 14.7 ft lbs / 20 N-M
Rear Crankcase cover to Crankcase
(Item 27)
7.3 ft lbs / 10 N-M
Head to Crankcase (Item 38) 22.1 ft lbs / 30 N-M
Bearing Retainer (Item 1) 14.7 ft lbs / 20 N-M
Oil Level Indicator (Item 29) 14.7 ft lbs / 20 N-M
Drain Plug (Item 13) 14.7 ft lbs / 20 N-M
Plug to Head (Item 33) 29.4 ft lbs / 40 N-M
*Note: When plunger nut is removed, install a new copper washer
and flinger washer to ensure proper fit and seal of ceramic plunger.
Each time the plunger screw is torqued, copper washers form to plunger.
If same copper washers are reused cracking or a poor seal may result.
Pump Specications
p/n N07-00224, N07-00225
N07-00224
TSS1021
N07-00225
TSS1511
Pump
Specications
