ALKOTA 5305A - Pump Repair Kits

24
Pump
Water Pump N07-00011, N07-00016, N07-00024
Pump Model
N07-00224
TS1021
N07-00225
TS1511
Maximum Volume (GPM) 4.5
5.
6
4.0
Max. Discharge Pressure
(PSI)
3500
17
00
3500
Maximum Pump Speed
(RPM)
1125
14
50
1450
Maximum Inlet Pressure 125 PSI
Maximum Inlet Vacuum 9 ft. water (7.9 in. Hg)
Bore .787 in. / 20 mm
Stroke .472 in. / 12 mm
Crankcase Oil Capacity 40.6 oz.
Crankshaft Rotation Clockwise & Counterclockwise
Maximum Fluid
Temperature
165˚F
Inlet Port Thread 1/2-14 BSPP-F
Discharge Port Thread 3/8-19 BSPP-F
Shaft Diameter .945 in. / 24 mm
Weight 32 lbs.
Dimensions 12.2 x 9.2 x 6.9 in.
TORQUE
Valve Plug (Item 41) 95.9 ft lbs / 130 N-M
Mount to Crankcase (Item 24) 29.4 ft lbs / 40 N-M
Connecting Rod cap to Connecting Rod
(Item 8
14.7 ft lbs / 20 N-M
*Plunger Screw to Crosshead(Item 42) 14.7 ft lbs / 20 N-M
Rear Crankcase cover to Crankcase
(Item 27)
7.3 ft lbs / 10 N-M
Head to Crankcase (Item 38) 22.1 ft lbs / 30 N-M
Bearing Retainer (Item 1)
14.7 ft lbs / 20 N-M
Oil Level Indicator (Item 29) 14.7 ft lbs / 20 N-M
Drain Plug (Item 13) 14.7 ft lbs / 20 N-M
Plug to Head (Item 33) 29.4 ft lbs / 40 N-M
*Note: When plunger nut is removed, install a new copper washer
and flinger washer to ensure proper fit and seal of ceramic plunger.
Each time the plunger screw is torqued, copper washers form to plunger.
If same copper washers are reused cracking or a poor seal may result.
Kit N07-99001
Kit N07-99003
Kit N07-9904F
Kit N07-99007
Kit N07-99069
Kit N07-99071
Kit N07-99006
Kit N07-99010
Kit N07-99028
Kit N07-99002

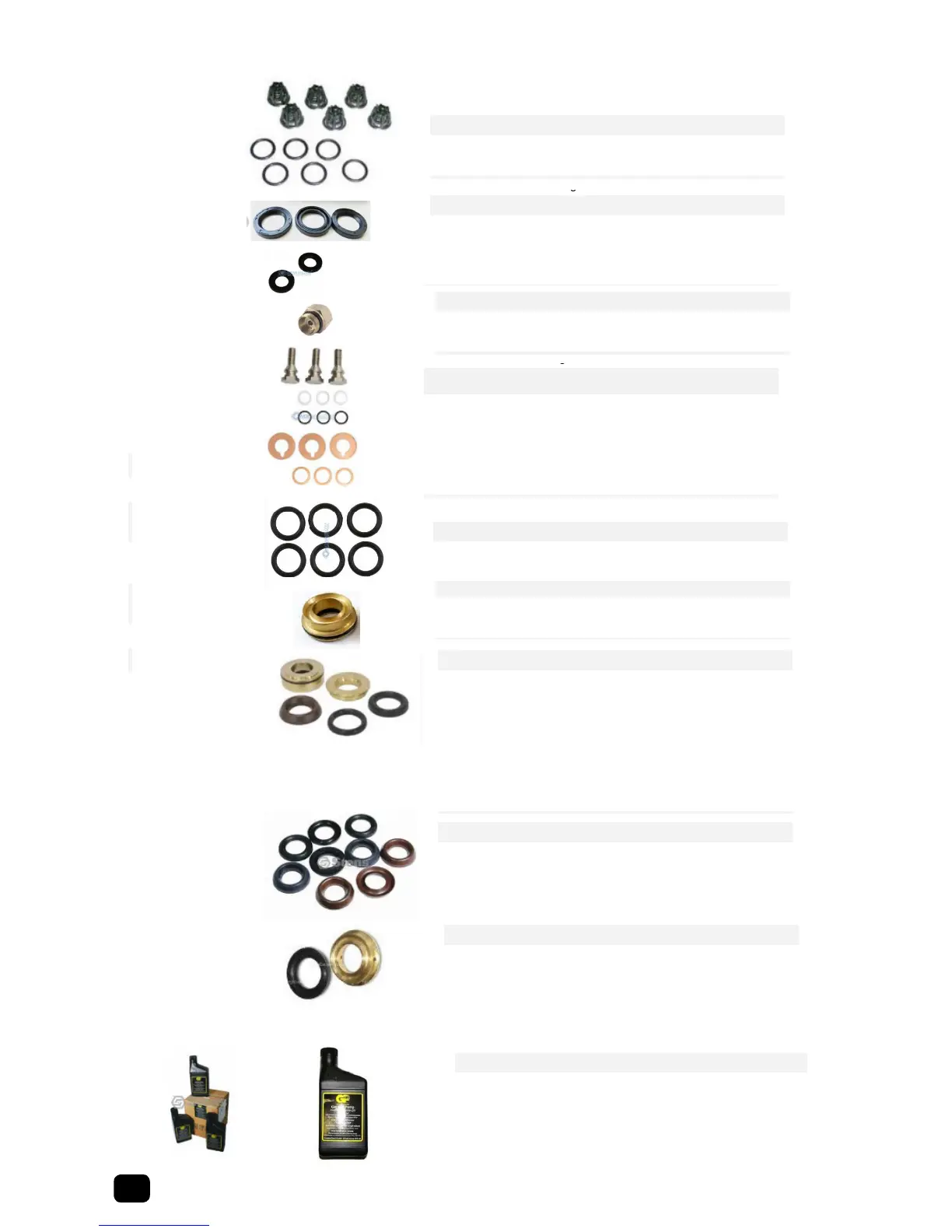

PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
PARTS PACKAGES
Part No. Description Item QTY
N07-99001 Valve Assemblies
Ass’y, check valve 39 6
O-Ring 39A 6
N07-99002 Oil Seals
Oil Seals 47 3
N07-99003 Crankshaft Seal
Seal, Crankshaft 12 2
N07-99004F Kit, Plugs & O-Ring
Plug, Pipe 41 6
O-ring 40 6
N07-99006
Kit, Plunger Screw &
“O-Rings”
Screw, Plunger 42 3
Washer, Flat 14 3
O-Ring 43 3
Ring, Anti-extrusion 44 3
Washer, Flat 46 3
N07-99007 Adapter, Male
Adapter, Male 44 6
N07-99010 Rear Adapters
Adapter, Female 26 3
O-Ring 25 3
N07-99028 Plunger Packing w/ Retainer
NOTE: Order
three for
complete pump.
O-Ring 25 1
Packing, V-Lo Press 26 1
Retainer, Packing 27 1
Adapter, Female 28 1
Ring, Restop 29 1
Packing, V-Hi Press 30 1
Adapter, Male 31 1
N07-99069 Retainer & O-Rings
Packing, V-Hi Press 30 3
Ring, Restop 29 3
Packing, V-Lo Press 27 3
N07-99071 Adapter, Front
Packing, V-Lo Press 27 3
Adapter, Female 26 3
ACCESSORIES
Oil – Case (6) One Pint Bottles p/n N07-OILCA
Oil – Bottle (1) One Pint Bottle p/n N07-OILCA-1
Kit N07-OIL CA-1Kit N07-OIL CA
PUMP KITS
Pump Kits
