ALKOTA 5305A - Fuel Filter Maintenance and Specifications; Fuel Filter Specifications; Fuel Filter Maintenance Procedures

36
Fuel Filter
Fuel Filter
Specications, Trouble Shooting
FILFIL
FILFIL
FIL
TER,TER,
TER,TER,
TER,
FUEL FUEL
FUEL FUEL
FUEL
P/N V04-00308
REMEDY
1. Fuel bowl leaking.
2. Air leaking into system
(indicated by air bubbles in bowl
during operation).
A. Deteriorated gasket.
B. Housing Cracked.
C. Bowl rim cracked, nicked, or scratched.
D. Gasket missing.
E. Loose Fuel Bowl.
A.Loose Valve Assembly.
B. craked Component.
C. loose Filter bowl.
A. Remove and Replace Gasket.
B. Remove and Replace Housing.
C. Remove and Replace Bowl.
D. Replace Gasket.
E. Tighten Fuel Bowl Onto Filter.
A.Tighten Valve Assembly.
B. Inspect Filter Bowl, Filter Housing,
and Gasket.
C. Tighten Fuel Bowl Onto Fuel Filter.
TROUBLE
POSSIBLE CAUSE
TRTR
TRTR
TR
OUBLE SHOOOUBLE SHOO
OUBLE SHOOOUBLE SHOO
OUBLE SHOO
TINGTING
TINGTING
TING
• MAXIMUM FLOW 15 GPH / 57 LPM
• MAXIMUM FILTRATION 2 MICRONS
• MAXIMUM TEMPERATURE 212°F / 100°C
• WEIGHT 1.0 LBS. / 340 GM
• INLET 1/4 NPT
• OUTLET 1/4 NPT
SPECIFICASPECIFICA
SPECIFICASPECIFICA
SPECIFICA
TIONSTIONS
TIONSTIONS
TIONS

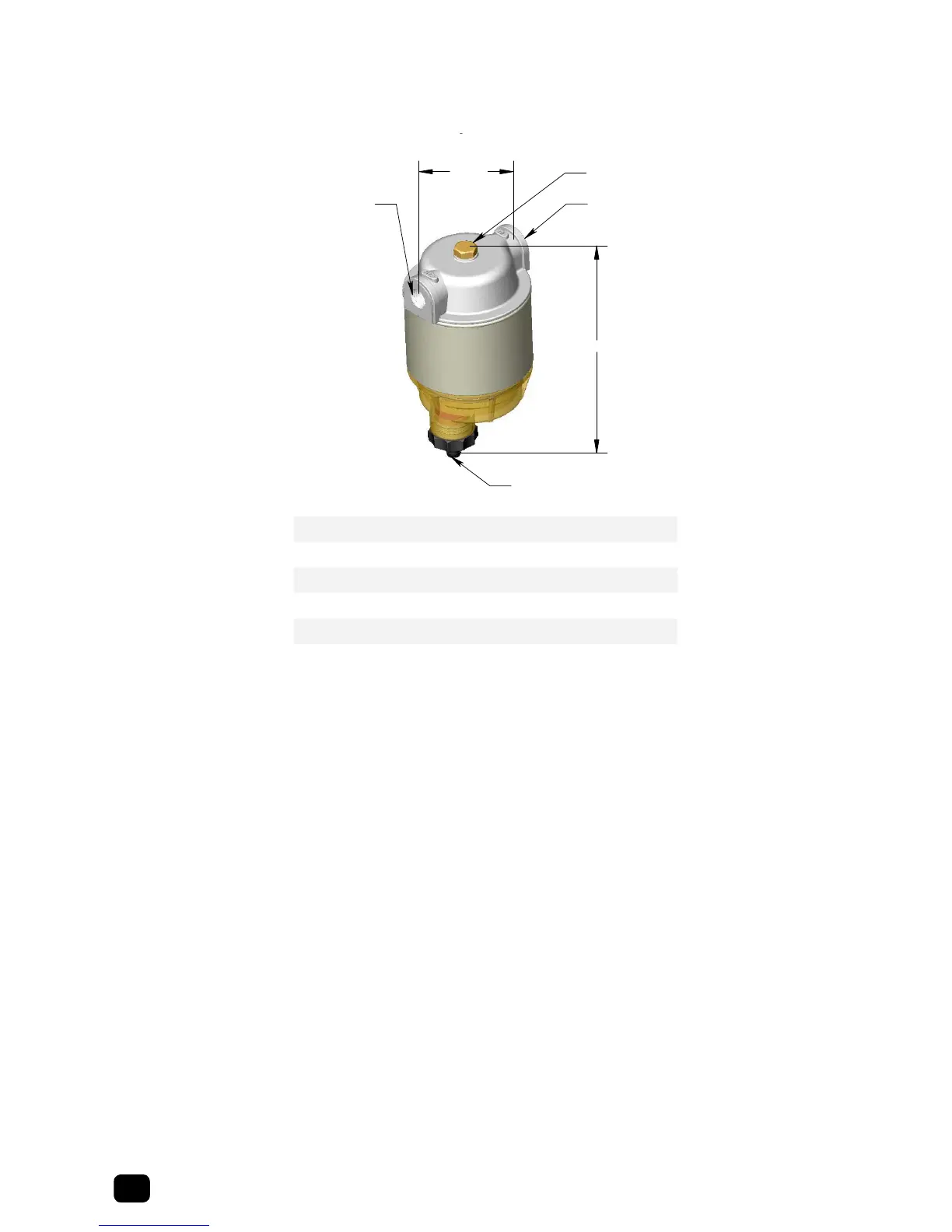

3 1/4"
5 1/2"
(6 1/2" Required For
Element Removal)
Inlet
Vent Plug
Drain Port
Outlet
ALL DIMENTIONS ARE
IN INCHES UNLESS OTHERWISE
NOTED. 25.4 MM = 1 INCH
Specications
Maximum Flow 15 GPM / 57 LPM
Maximum Filtration 2 Microns
Maximum Temperature 212˚F / 100˚C
Weight 1.0lbs / 340km
Inlet ¼ NPT
Outlet ¼ NPT
All dimensions are in inches unless otherwise noted.
25.4 mm = 1 inch
Maintenance Procedures
Priming the machine
Shut off the fuel tank valves. Spin off the clear bowl, ll with clean fuel and coat the round gasket (3)
with fuel. Reinstall the clear bowl and tighten ¼ to 1/3 turns after the gasket contacts the upper housing.
Turn on the fuel tank valves. Start the machine and check that there are no leaks.
Draining water
Check the collection bowl daily. Drain off water contaminants by unscrewing the clear bowl turning
counter-clockwise. Start the machine and allow air to purge from the fuel system prior to operating the
equipment.
Element replacement frequency
Frequency of element replacement is determined by contamination level in the fuel. Replace the
element every 500 hours.
Note: Foul smelling diesel fuel is an indication of microbiological contamination. A change in fuel source
is recommended. Always carry a spare lter element as one tank full of contaminated fuel will plug the
fuel lter element prematurely.
Element replacement procedure
1. Shut off the fuel tank valves.
2. Unscrew the clear bowl turning counter-clockwise.
3. Remove and discard the lter element.
4. Follow listed procedures under “PRIMING.”
Filter, Fuel
p/n V04-00308
