ALKOTA 5305A - Hose Assembly Parts

4
Trigger Gun & Wand
6/2/2009
p/n: J06-00158-B
ASSEMBLY, GUN & WAND - 42"
ITEM
NO.
PART NUMBER PART DESCRIPTION QTY.
1 J06-00104E ASSEMBLY, WAND - 42" 1
2 J06-00158 GUN, TRIGGER 1
3 W04-24225-A COUPLER, 1/4F X 1/4FNPT 1
2
1
3
Trigger Gun & Wand Assembly
3401-00709A PART LIST
ITEM PART NUMBER PART DESCRIPTION
1 W04-31231-B Coupler, 3/8F X 1/2MNPT
2 K02-031100E5 Assembly, Hose – 3/8X 100’
4120-00902P PART LIST
ITEM PART NUMBER PART DESCRIPTION
1 C04-00131 Screen, Chemical
2 Z01-08413-2 Hose, Poly Braid – 84”
2
1

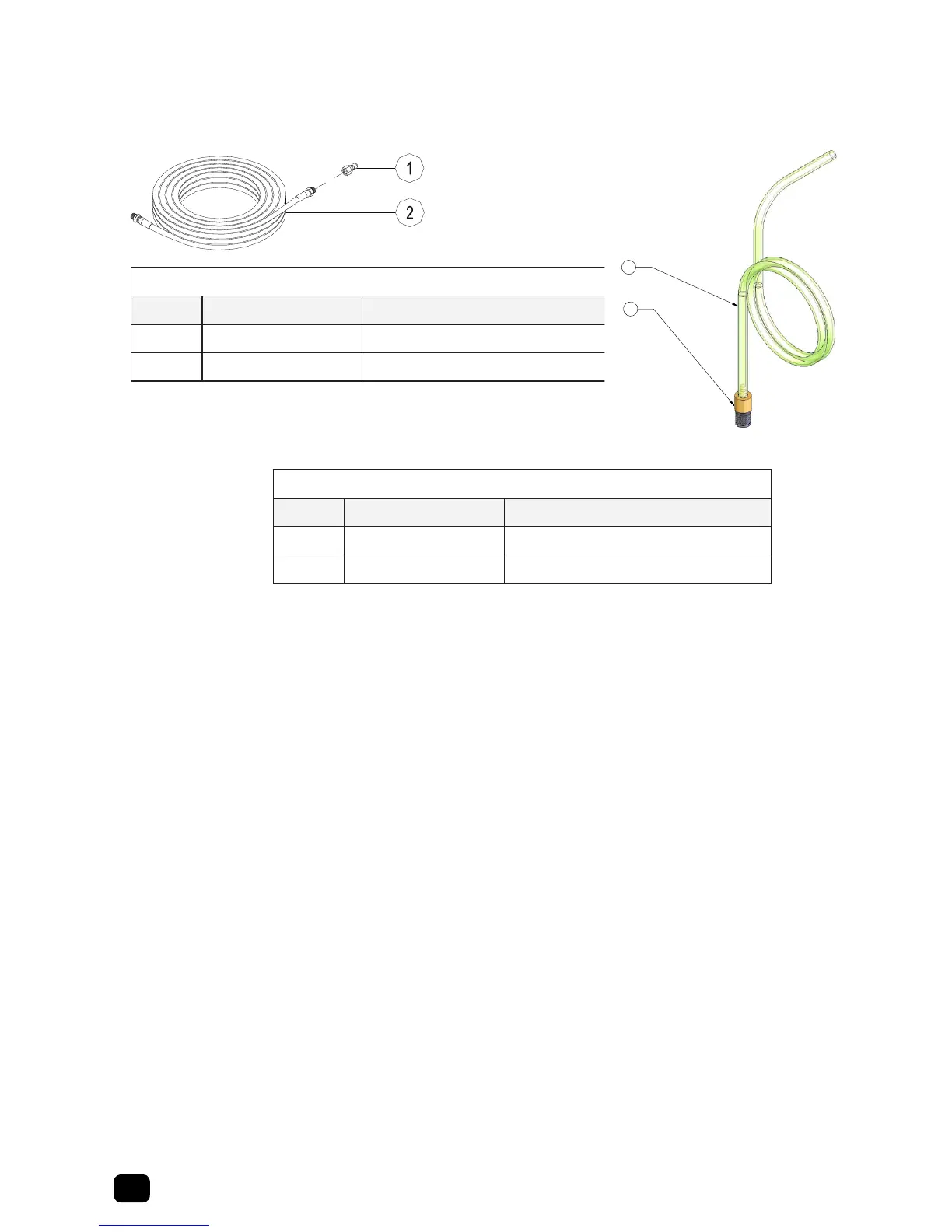

ASSEMBLY, CHEMICAL HOSE
p/n 4120-00902P
ITEM
NO.
PART
NUMBER
PART DESCRIPTION QTY.
1 Z01-08413-2
HOSE, POLYBRAID -
1/4" X 84"
1
2 C04-00131 STRAINER, W/CHECK 1
Hose Assembly
