ALKOTA 5305A - Pre-Cleaner Assembly; Pre-Cleaner Exploded View

31
Pre-Cleaner Assembly
Valve, Unloader
p/n C07-04504M-A
Fuel Filter V04-00308
Troubleshooting
Trouble Possible Cause Remedy
Frequent valve recycles
Damaged check valve O-ring Remove and replace
Leaking connections Check or renew
Restricted bypass or too small
diameter of
the bypass hose
Clean or adapt
passage diameter
Valve does not reach
pressure
Piston O-rings worn out Remove and replace
Debris between seat and
shutter
Clean the seat
Seat worn out Remove and replace
Nozzle worn out Remove and replace
Incorrect choice of nozzle Fit with smaller nozzle
High pressure peaks at
gun closure
There is not a minimum of 5%
of total flow
discharged in bypass
Reset Correctly
Excessive flow in bypass
Change type of valve
or adjust passages
Adjustment with spring totally
compressed
Loosen adjustment
screw and eventually
fit with smaller nozzle
Valve does not
discharge
at low pressure at gun
closure
Jammed check valve Jammed check valve
Debris on check valve Clean
Maintenance Procedures
Every 400 working hours, check and lubricate the seals with water resistant
grease with water resistant grease.
Pre-Cleaner Assembly
1
7
5
2
11
10
8
4
3
9
6

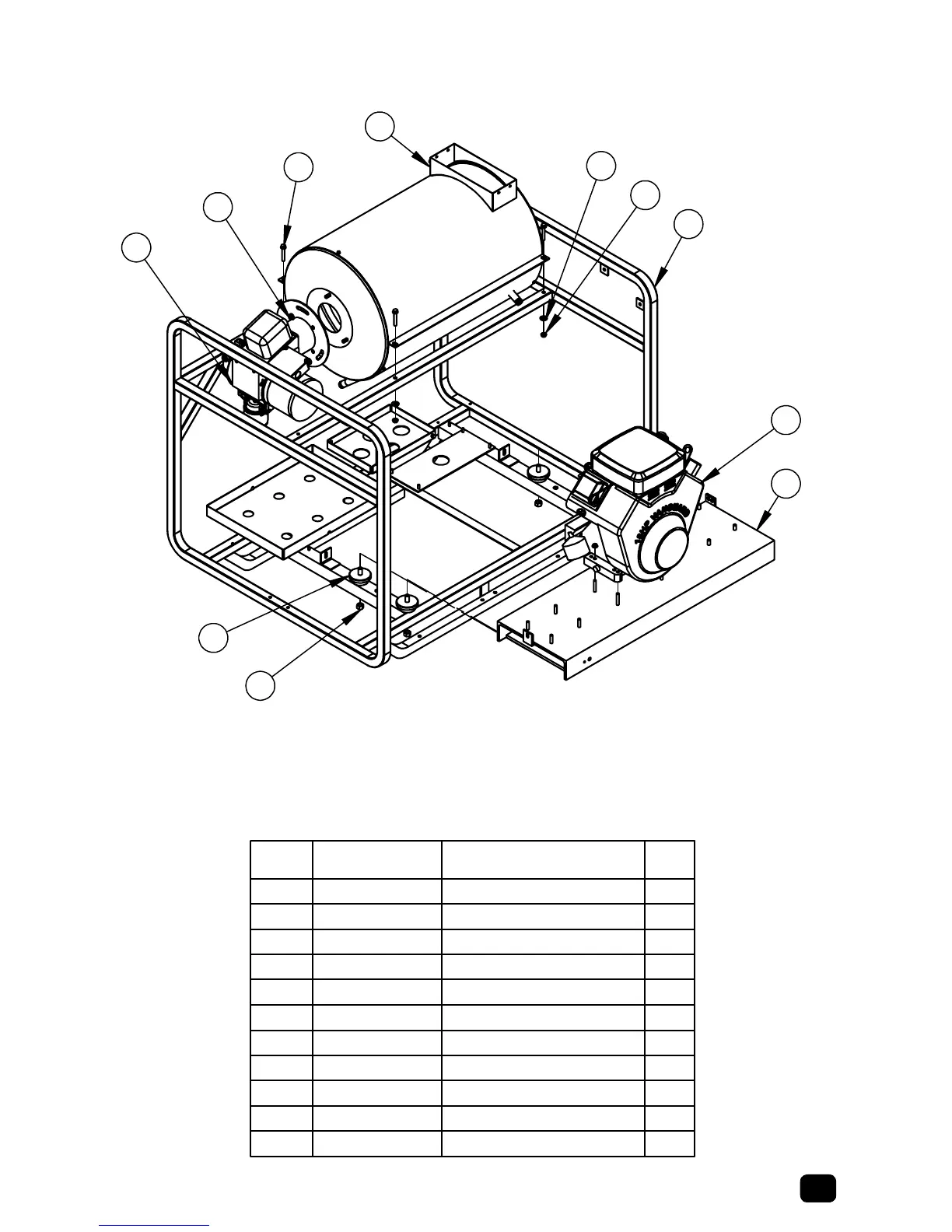

ASSEMBLY, PRE-CLEANER
8/28/2015
ITEM
NO.
PART NUMBER PART DESCRIPTION QTY.
1 5355-00130 WELDMENT, FRAME 1
2
53052V-10134 WELDMENT, MOUNT 1
3
5305A-00105 WELDMENT, CHASSIS - COIL 1
4
5305A-00401 ASSEMBLY, BURNER-OIL 1
5
F05-00529
ENGINE, GAS - 18HP,
Kohler
1
6
H04-31326 CAP, SCREW 4
7
H05-31300 WASHER, FLAT - 5/16 4
8
H06-31300 NUT, LOCK - 5/16" 8
9
H06-37500 NUT,LOCK-3/8-16UNC HEX 3
10
H06-50001 NUT, 1/2 - 20UNF 8
11
H10-50000 MOUNT, SHOCK 4
