ALLEN & HEATH PA Series Service Information

Kernick Industrial Estate,
Penryn, Cornwall,
England. TR10 9LU
+44 (0)8707 556250
+44 (0)8707 556251
2

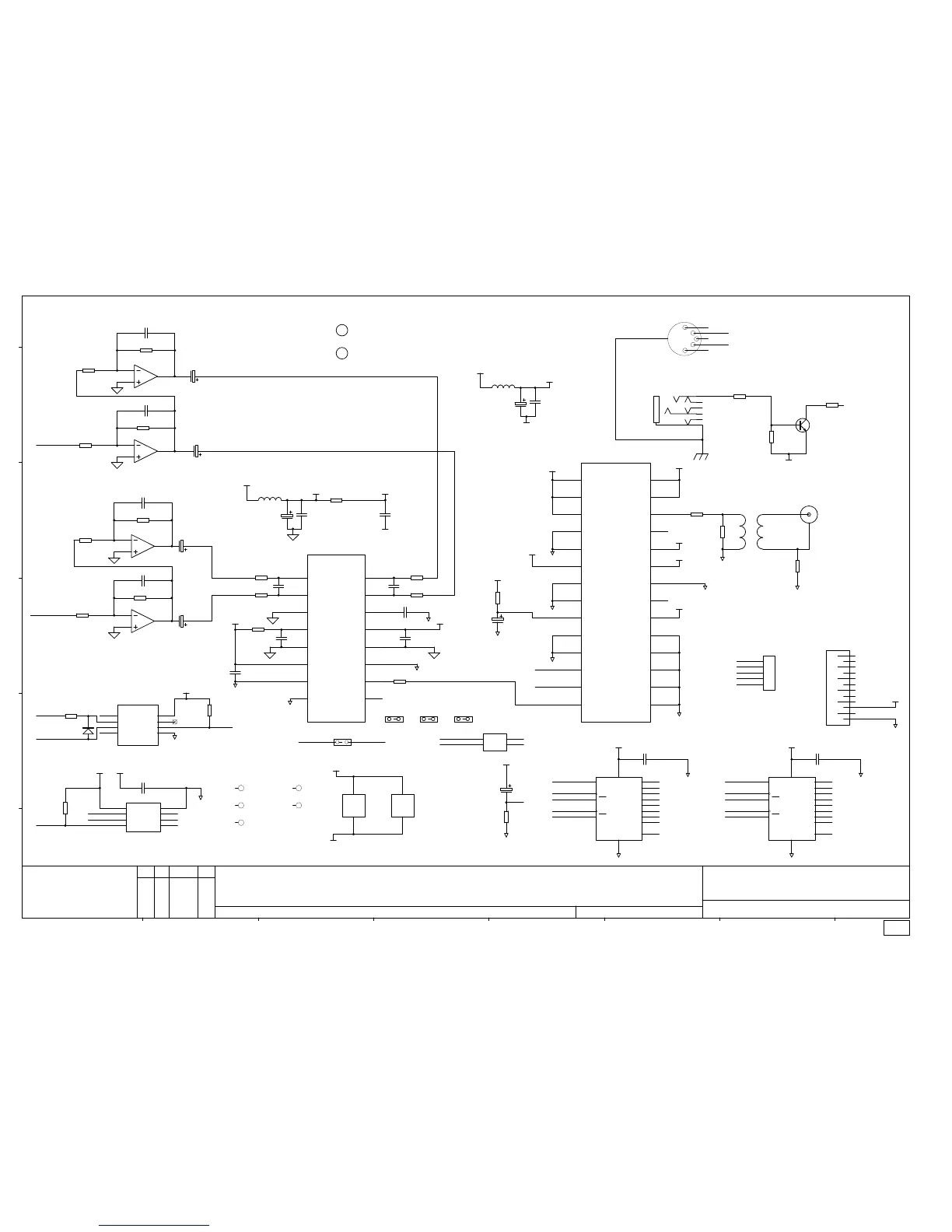

PA EFFECTS PCB (ALESIS)
C6265 3 3
PAGE:
TITLE:
DRG No: ISSUE: SHEET: OF
ISSUE BY DATE
FILE: C6265_2P2.Sch 14:20:44 16-Jun-2006

Tel:
Fax:
PRINTED:
A B C D E F G H
a
b
c
d
e
CHK
BY
VDD
1
GP5
2
GP3
4
GP4
3
VSS
8
GP0
7
GP1
6
GP2
5
U14
PIC 12F629
C55
100N/50V 0805
3
2
1
U7A
TL072D SMD
5
6
7
U7B
TL072D SMD
R44
22K 0805
R27
4K7 1% 0805
R28
4K7 1% 0805
C18
100P_S
C19
100P_S
3
2
1
U6A
TL072D SMD
5
6
7
U6B
TL072D SMD
R43
22K 0805
R25
4K7 1% 0805
R26
4K7 1% 0805
C17
100P_S
C16 100P_S
L3
FB-SM
C49
10/16
R3
10R 0805
C29
100N 0805
C30
100N 0805
DG
+VA3 +VD3
R61
330R 1% 0805
LRCLK
MCLK
+5V
2TRK_OUT_L
2TRK_OUT_R
AGND
3
REF+
4
REF-
5
DVDD
6
R IN+
16
R IN-
15
AVDD
13
MID
14
AGND
12
DGND
11
WDCLK
9
DOUT
10
FORMAT
8
DGND
7
L IN+
1
L IN-
2
U9
AL1101
C23
2N7_S
C22
2N7_S
R39
220R 0805
R40
220R 0805
R37
220R 0805
R38
220R 0805
C48
10/16
C47
10/16
DG
DG
DG
DG
R57
1K0 1% 0805
C33
100N 0805
C32
100N 0805
C34
100N 0805
C31
100N 0805
+VA3 +VD3
C45
10/16
C44
10/16
EMPH
3
SFMT0
4
SFMT1
5
VD+
6
CEN
16
TCBL
15
ISCLK
13
SDIN
14
ILRCLK
12
TCBLD
11
RST_L
9
APMS
10
DGND3
8
DGND6
7
COPY/C
1
VD2+
2
V
17
U
18
AUDIO
19
VD3+
20
OMCK
21
DGND
22
VL+
23
H/S
24
TXN
25
TXP
26
VD4+
27
ORIG
28
U10
CS8405A
C46
10/16
C28
100N 0805
+5V
VD4
VD4
DG
DG
VD4
VD4
VD4
VD4
VD4
DG
DG
DG
DG
R7
100K 1% 0805
LRCLK
SCLK
DG
VD4
R59
330R 1% 0805
DG
V-
4
V+
8
U6C
TL072D SMD
V-
4
V+
8
U7C
TL072D SMD
-17V
+17V
R62
82R 1% 0805
R31
3K3 1% 0805
R32
3K3 1% 0805
C50
10/16
1
4
8
5
T1
PE-65812(PULSE)
CN4
RCA PHONO SINGLE
L2
FB-SM
R53
0R0 0805
DG
+5V
DG
1
2
3
4
5
6
7
8
9
10
11
12
CN5
FLEX SKT 12 WAY VERT
LED_1
LED_2
LED_3
LED_4
LED_5
LED_6
LED_7
LED_8
BANK_LED
DATA1
CLKS1STR
MCLK
MIDIN
+5V_P
DG
PROG_0
PROG_1
PROG_2
PROG_3
BANK_LED
INT_MUTE
R63
47K 0805
+5V +5V
DG DG
GND
8
DS
14
VCC
16
SHCP
11
Q7'
9
MR
10
Q7
7
STCP
12
Q6
6
OE
13
Q5
5
Q0
15
Q4
4
Q1
1
Q3
3
Q2
2
U12
74HC595_S
LED_1
LED_2
LED_3
LED_4
LED_5
LED_6
LED_7
LED_8
DATA_OUT
DATA2
CLKS2
+5V
STR
RESET_L3
GND
8
DS
14
VCC
16
SHCP
11
Q7'
9
MR
10
Q7
7
STCP
12
Q6
6
OE
13
Q5
5
Q0
15
Q4
4
Q1
1
Q3
3
Q2
2
U13
74HC595_S
DATA_OUT
CLKS2
+5V
STR
RESET_L3
C4
100N/50V 0805
DG
C5
100N/50V 0805
DG
SEL_SW
NC
1
A
2
K
3
NC
4
GND
5
COLL
6
BASE
7
VCC
8
U11
6N138
D1
BAS16
R41
220R 0805
R60
330R 1% 0805
DG
MIDI+
MIDI-
+5V
MIDIN
FID1
FIDUCIAL
FID2
FIDUCIAL
FID3
FIDUCIAL
AI1
HOLE-AI VTECH
AI2
HOLE-AI VTECH
-17V_IN
FOOTSWITCH
R58
10K 1% 0805
1
4
2
5
3
0
CN6
DIN SKT FEMALE HA 5 PIN 180 DEG
MIDI-
MIDI+
Q1
BC848B
R6
100K 1% 0805
R56
1K0 1% 0805
-17V = Mute
SCREW1
SCREW 2.5X6 PAN POZ PLASTITE ZINC
SCREW2
SCREW 2.5X6 PAN POZ PLASTITE ZINC
C13
10/16
R9
120K 1% 0805
+5V
DG
RESET_L3
T
R
CN3
JACK SLIMJACK MET SW6
1
2
3
4
5
CN7
SIL 5 M STRT
SEL_SW
+5V_P
DG
DATA1
CLKS1
A GWR 18-03-05 Text
1 GWR 14-04-05 Text
2 GWR 16-05-05 Text
1
1
2
2
3
3
4
4
JP2
IDC 2X2 M STRT
+5V
+5V +5V_P
CLKS2
DATA2
CLKS1
DATA1
1 2
JP1
JUMP 2 STRT
JP4
JUMP 2 SKT
JP3
JUMP 2 SKT
JP5
JUMP 2 SKT
