ALLEN & HEATH PA Series Service Information

pa_series_layout_3.doc Sheet 1 of 2
PA-CP Powered version
Product .............................PA12-CP/100
.........................................PA12-CP/120
.........................................PA12-CP/220
.........................................PA12-CP/240
.........................................PA20-CP/100
.........................................PA20-CP/120
.........................................PA20-CP/220
.........................................PA20-CP/240
PA12-CP Pack Assembly......... 003-030
PA12-CP Main Assembly ......... 003-031
PA12-CP Top Panel Assy. ....... 003-032
PA12-CP Base Panel Assy. ..... 003-033
PA12-CP Rack Ear Assy.......... 003-071
PA20-CP Pack Assy................. 003-083
PA20-CP Main Assy................. 003-084
PA20-CP Top Panel Assy. ....... 003-085
PA20-CP Base Panel Assy. ..... 003-086
Mono Input PCB ....................... 003-034
Stereo Input PCB ..................... 003-035
Aux FX PCB ............................. 003-036
Sub 1 PCB................................ 003-037
FB1 Phones PCB ..................... 003-038
FB2 PCB .................................. 003-039
Master L/R PCB ....................... 003-040
Distribution PCB ....................... 003-041
Effects PCB .............................. 003-042
Amplifier PCB ........................... 003-043
Linear PSU PCB....................... 003-069
FX LED PCB ............................ 003-070

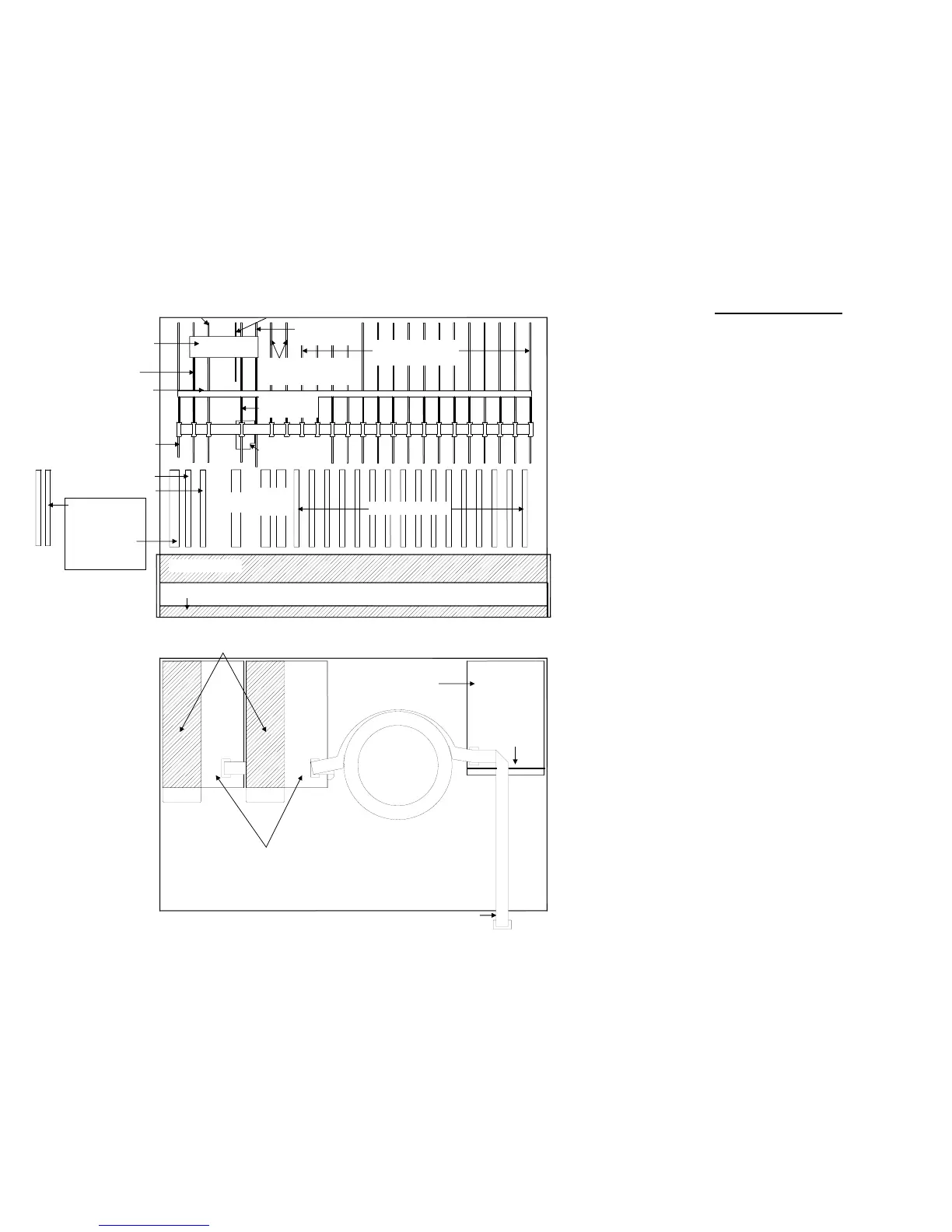

P
A
-CP Front Panel assembl
y
Front view
(
20ch. shown
)
FAN FAN
TRANSFORMER
AMPLIFIER HEATSINK x2
AMPLIFIER PCB
003-043
LINEAR PSU PCB
003-069
PA-CP Chassis assembly Front view
FRONT EXTRUSION
FB1 PHONES PCB
003-038
AL4875
AUX FX
FADER
STEREO
INPUT
FADERS
MONO INPUT PCBs
003-034 x 16
STEREO INPUT PCBs
003-035 x 2
EFFECTS PCB
003-042
FX LED PCB
003-070
AUX FX PCB
003
-
0
36
SUB 1 PCB
003-037
L/R MASTER PCB
003-040
FB2 PCB
003-039
DISTRIBUTION PCB
003-041
COPPER EARTH STRIP
FB1 PHONES FADER
MONO INPUT FADERS
FB2 FADER
AL4877
LINEAR PSU
HEATSINK
HANDLE
PA series products from
serial number 019388
have x2 mono MASTER
L & R FADERS
PA series products up
to serial number 019388
have x1 stereo
MASTER LR FADER
