76 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 4 Install the Module

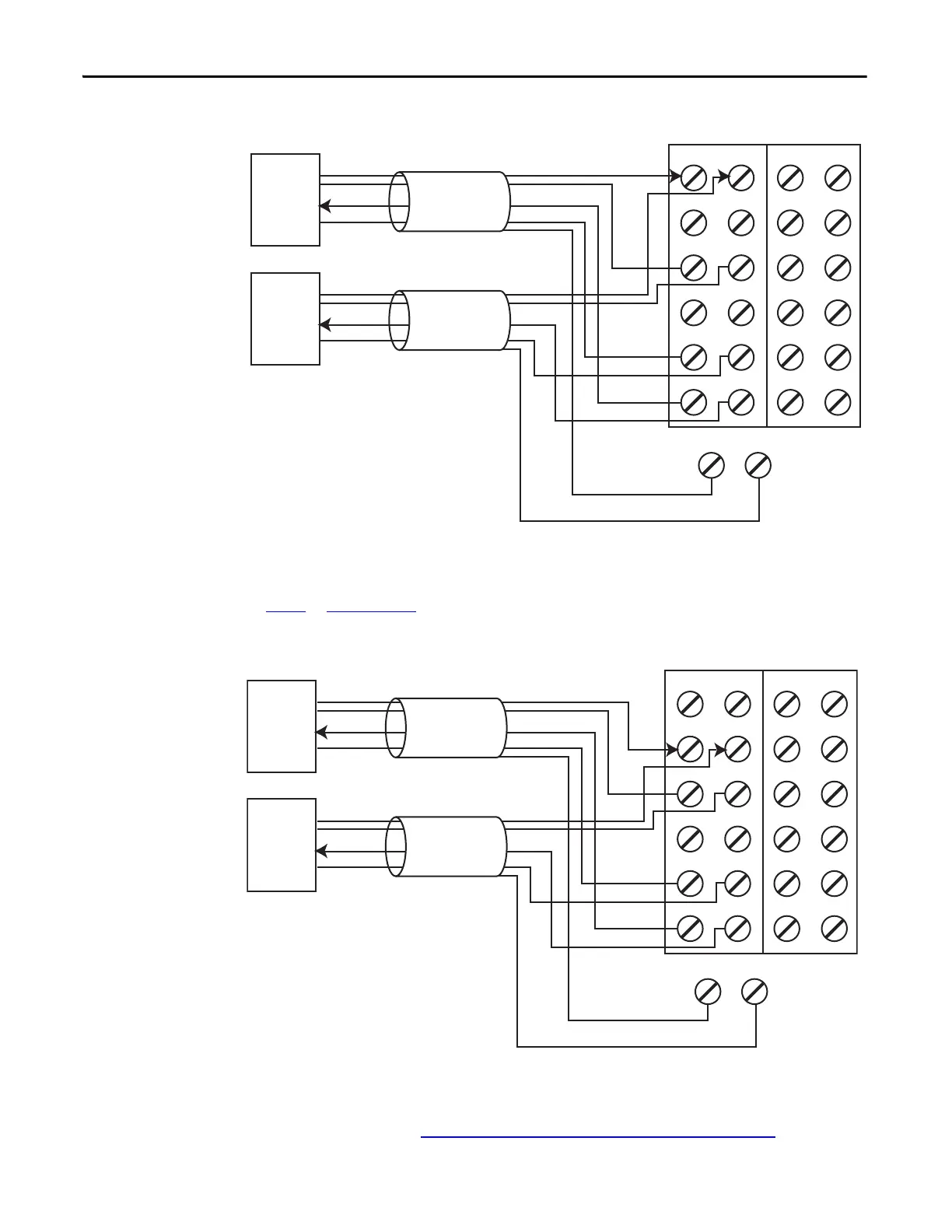

Figure 43 - 4-wire Voltage or Tachometer Sensor (SIL 3)
Figure 44 - 4-wire Current Sensor (SIL 3)
Follow the Guidelines for Wiring Safety Analog Inputs on page 71.
FE FE
V0 V1 V2 V3
I0 I1 I2 I3
COM COM COM COM
COM COM COM COM
S0 S1 S2 S3
S0 S1 S2 S3
This wiring configuration may also be used for SIL 2 redundant Tachometer mode.
Signal Return and Common are at the same potential.
Field sensors are monitoring the same signal in a redundant configuration.
You must configure a safety discrepancy deadband between the two signals to achieve SIL 3.
SIL 2
4-wire
Sensor
1734-TOP3 Terminal Bases
Signal (V)
+24V
Cable Shield
Signal Return
Common
SIL 2
4-wire
Sensor
Signal (V)
+24V
Signal Return
Common
Cable Shield
See Figure 47 and Figure 48 on page78 for tachometer wiring detail.
FE FE
V0 V1 V2 V3
I0 I1 I2 I3
COM COM COM COM
COM COM COM COM
S0 S1 S2 S3
S0 S1 S2 S3
Signal Return and Common are at the same potential.
Field sensors are monitoring the same signal in a redundant configuration.
You must configure a safety discrepancy deadband between the two signals to achieve SIL 3.
SIL 2
4-wire
Sensor
1734-TOP3 Terminal Bases
Signal (I)
+24V
Cable Shield
Signal Return
Common
SIL 2
4-wire
Sensor
Signal (I)
+24V
Signal Return
Common
Cable Shield
