Allen-Bradley 1746-NT8 - Page 88

Publication 1746-UM022B-EN-P - January 2005
A-8 Module Specifications

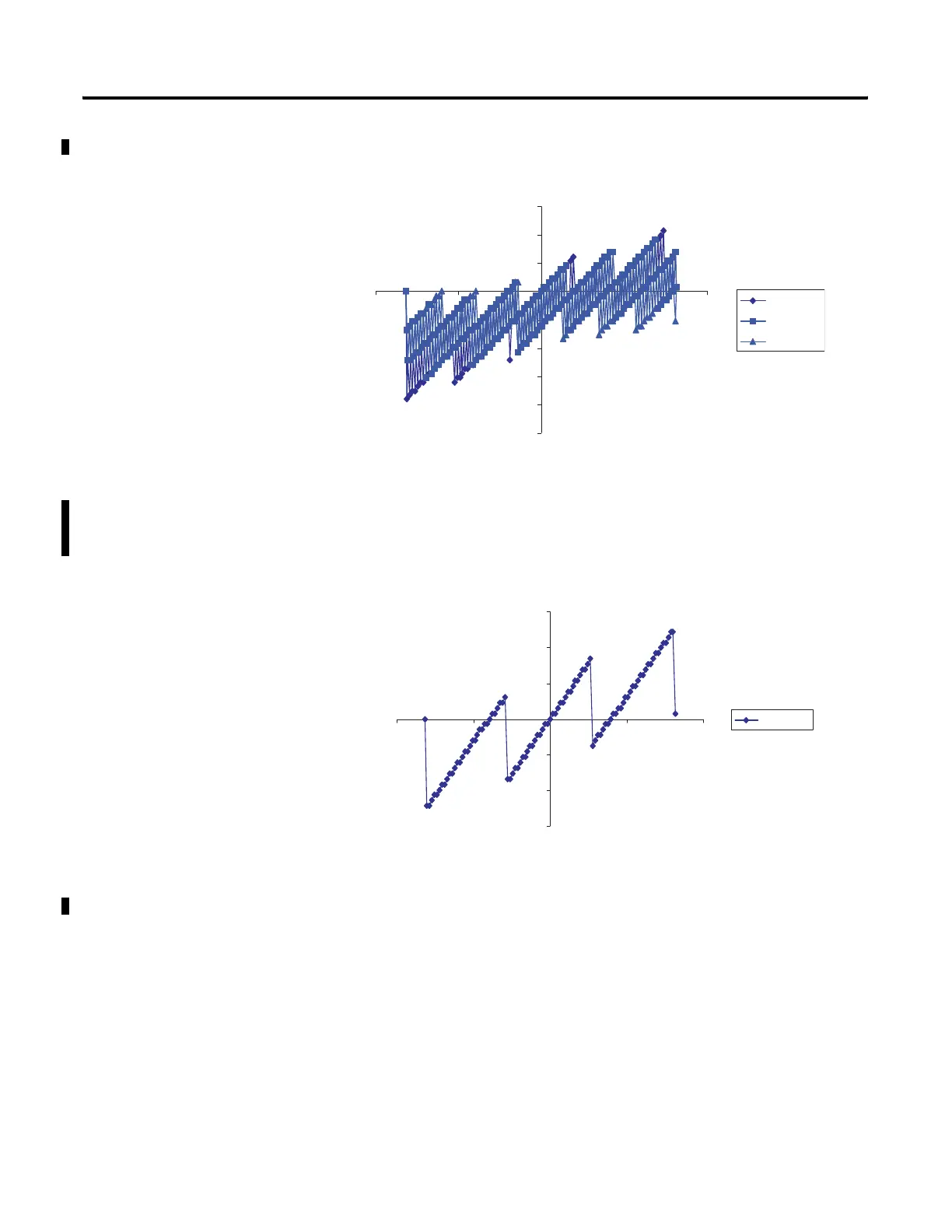

uV Err, ±100mV Span, Prop Cts, 60 Hz, 0°C, 25°C, 60°C
uV Err, ±50mV Span, Prop Cts, 60 Hz, 25°C
Input Voltage (counts)
100 mV Deviation Over Temp
Deviation Voltage (mV)
-40000 -20000 0 20000 40000
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
-0.1
Delta 60˚C
Delta 25˚C
Delta 0˚C
.
Input Voltage (counts)
50 mV Deviation Over Temp
Delta 25˚C
Deviation Voltage (mV)
4000020000-20000-40000 0
0.03
0.02
0.01
0
-0.01
-0.02
-0.03
