Chapter 6 Install ControlLogix I/O Modules

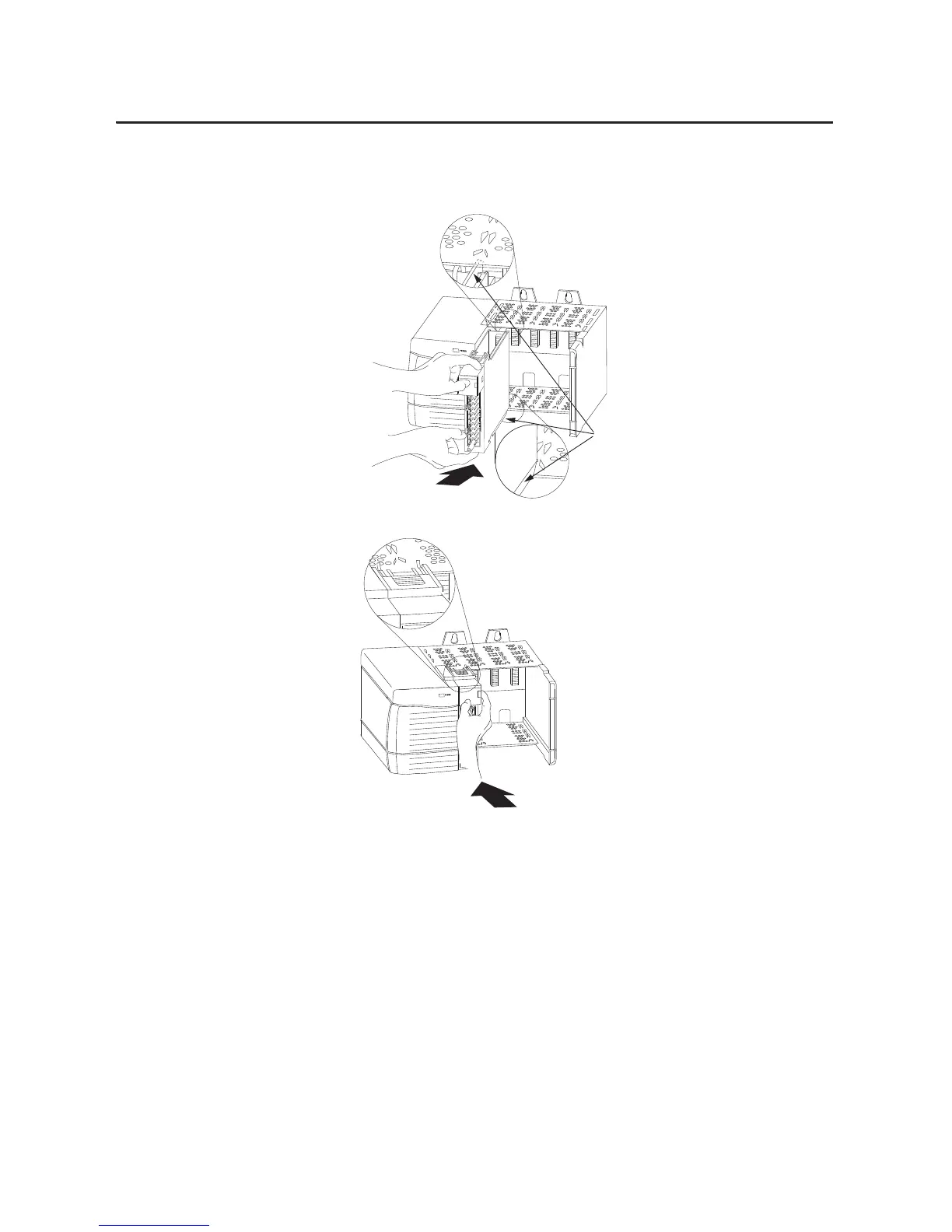

Follow these steps to insert the module into the chassis.
1. Align the circuit board with the top and bottom chassis guides.
2. Slide the module into the chassis until the locking tabs click.
Installation of the module is now complete.
Printed Circuit Board
20861-M
20862-M
