Chapter 7 Configure ControlLogix Digital I/O Modules
Edit the Configuration
After you add a module to the I/O configuration in RSLogix 5000 software, you
can review and edit the configuration. You can also download the data to the
controller while online. This is called dynamic reconfiguration.
Follow these steps to edit a module’s configuration.

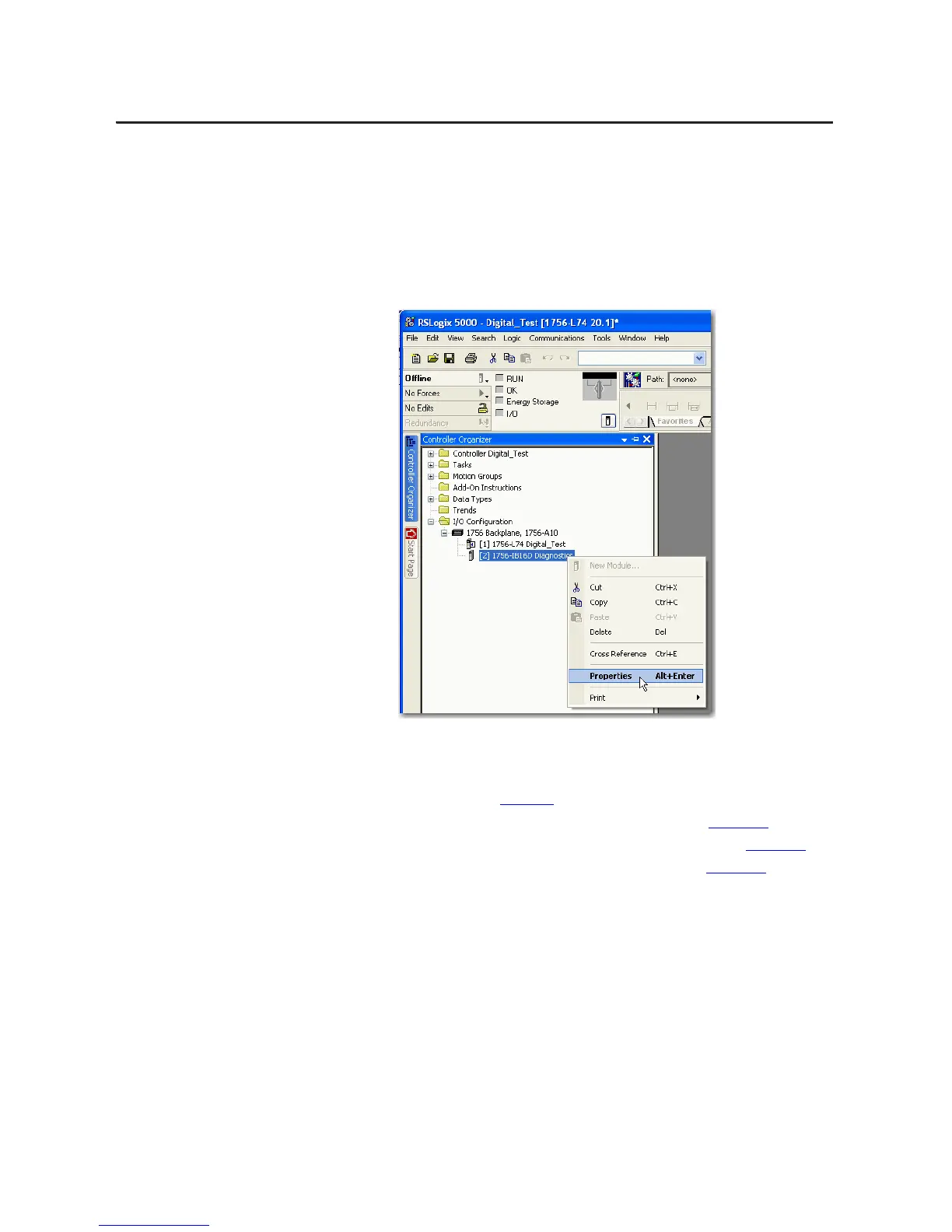

1. On the Controller Organizer, right-click an I/O module and choose
Properties.
2. On the Module Properties dialog box, click the tab corresponding to the
feature to modify, and then click OK:
• To configure connection properties between the module and the
controller, see page 135
.
• To configure features common to all modules, see Chapter 3
.
• To configure features specific to diagnostic modules, see Chapter 4
.
• To configure features specific to fast modules, see Chapter 5
.
