180 Rockwell Automation Publication 1756-UM058G-EN-P - November 2012
Appendix A Troubleshoot Your Module
Use RSLogix 5000 Software
for Troubleshooting
In addition to the status indicator display on the module, RSLogix 5000 software
will alert you to fault conditions.
Fault conditions are reported in these ways:
• Warning signal on the main screen next to the module—This occurs when
the connection to the module is broken.
• Message in a screen’s status line.
• Notification in the Tag Editor—General module faults are also reported in
the Tag Editor. Diagnostic faults are reported only in the Tag Editor.
• Status on the Module Info tab.
The following windows display fault notification in RSLogix 5000 software.

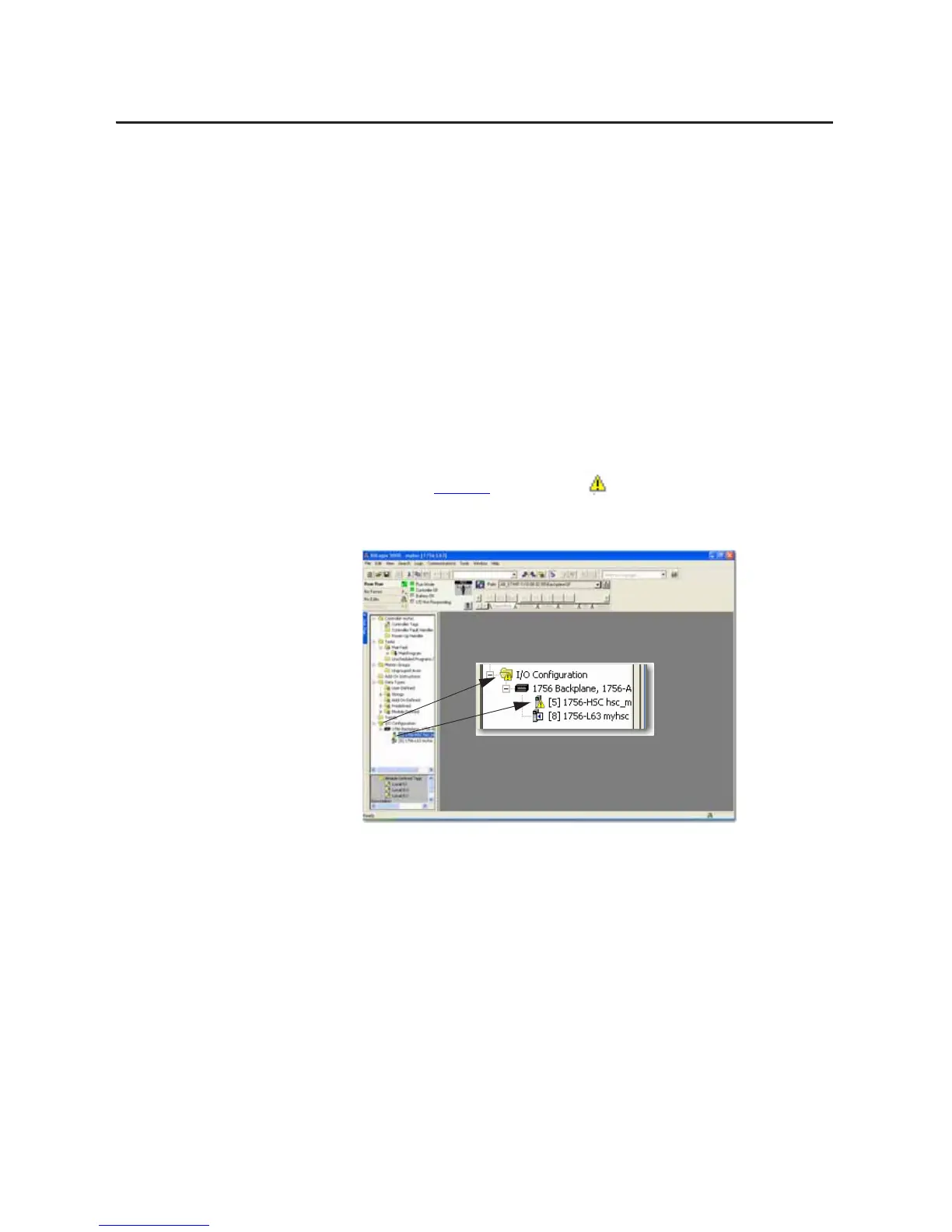

As shown in Figure 23
, a warning icon appears in the I/O Configuration tree
when a communication fault occurs.
Figure 23 - Warning Signal on Main Screen
