Allen-Bradley 1756-IA32 - 1756-Ob32

Rockwell Automation Publication 1756-UM058G-EN-P - November 2012 167

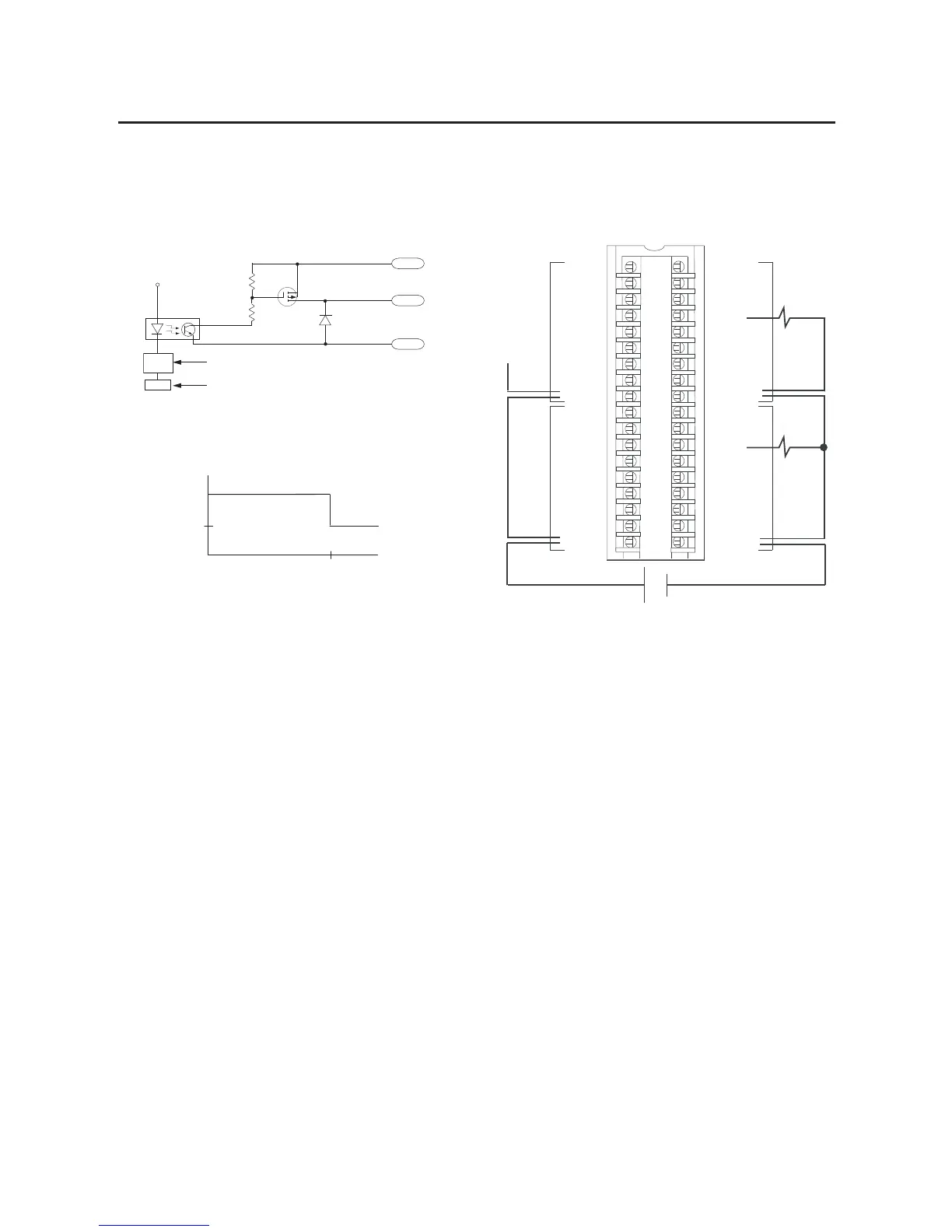

Wiring Diagrams Chapter 8
1756-OB32
ControlLogix DC (10...31.2V) output module
12
34
56
78
910
1112
1314
1516
1718
1920
2122
2324
2526
2728
2930
3132
3334
3536
+
_
Daisy Chain
to Other
RTBs
Group 0
Group 1
Group 0
Group 1
DC COM
OUT-1
OUT-3
OUT-5
OUT-7
OUT-9
OUT-11
OUT-13
OUT-15
DC-0(+)
DC-1(+)
OUT-0
OUT-2
OUT-4
OUT-6
OUT-8
OUT-10
OUT-12
OUT-14
RTN OUT-0
RTN OUT-1
OUT-17
OUT-19
OUT-21
OUT-23
OUT-25
OUT-27
OUT-29
OUT-31
OUT-16
OUT-18
OUT-20
OUT-22
OUT-24
OUT-26
OUT-28
OUT-30
1756-OB32
Continuous @ 60 °C (140 °F)
+5V
RTN OUT-0
OUT-0
DC-0(+)
ControlLogix Backplane Interface
Display
Surge Current Chart
Simplified Schematic
Surge
Current
Time
010 ms
0.5 A
1 A
