Common Module Features Chapter 3
You can reset an electronic fuse through RSLogix 5000 software during online
monitoring or through program logic running on a controller. If your module
uses point-level fusing, you can reset a fuse with a CIP Generic Message
instruction, as described on page 227
.
Follow these steps to reset an electronic fuse through RSLogix5000 software
during online monitoring.

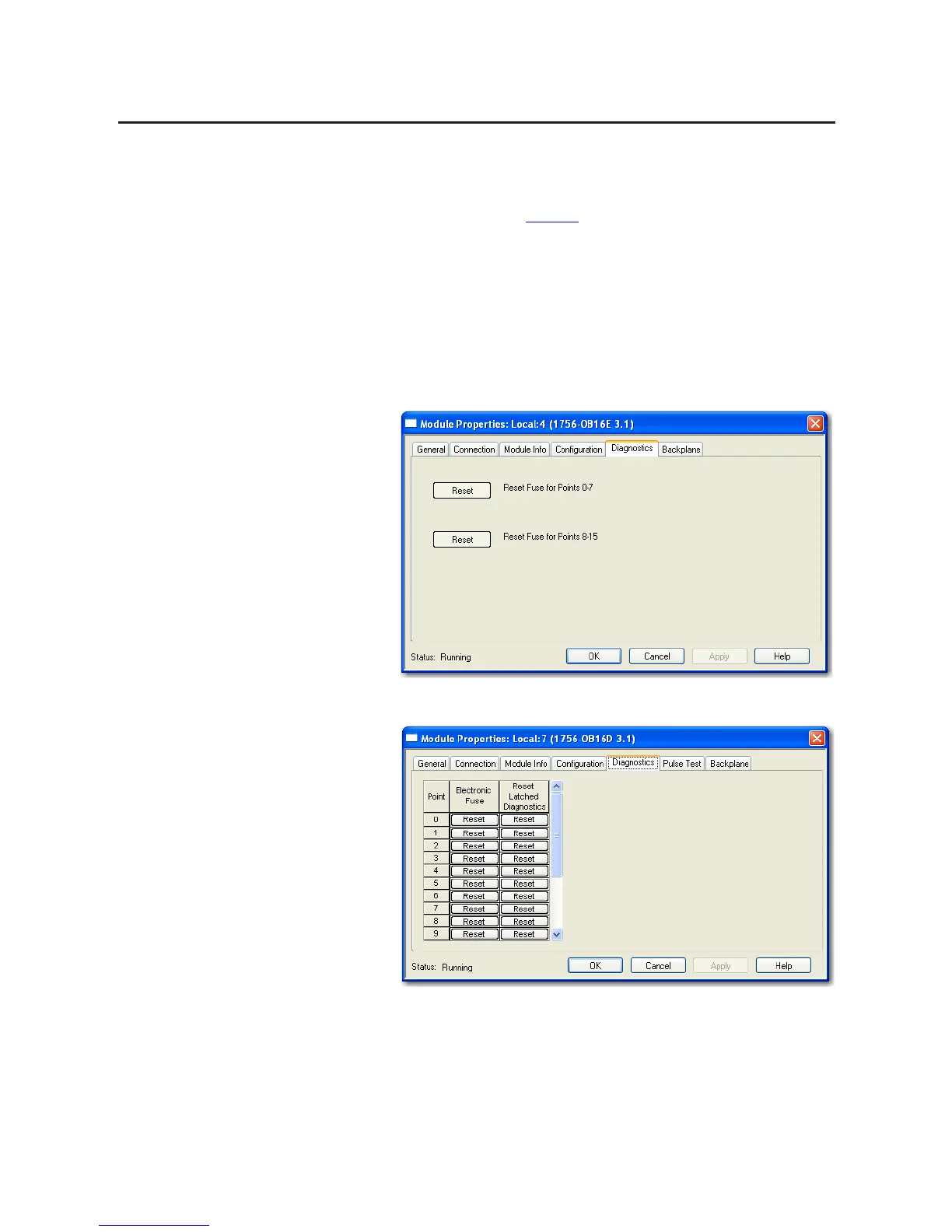

1. On the Module Properties dialog box, click the Diagnostics tab.
The fields on the Diagnostic tab vary depending on whether your module
supports fusing on a per point basis or a per group basis.
2. Click Reset for the output points for which to reset a fuse.
3. Click OK.
Fusing on a per group basis
