Chapter 6 Safety Application Development
Commissioning Lifecycle
The flowchart shows the steps that are required for commissioning a
GuardLogix system. See the links for an explanation of those topics.

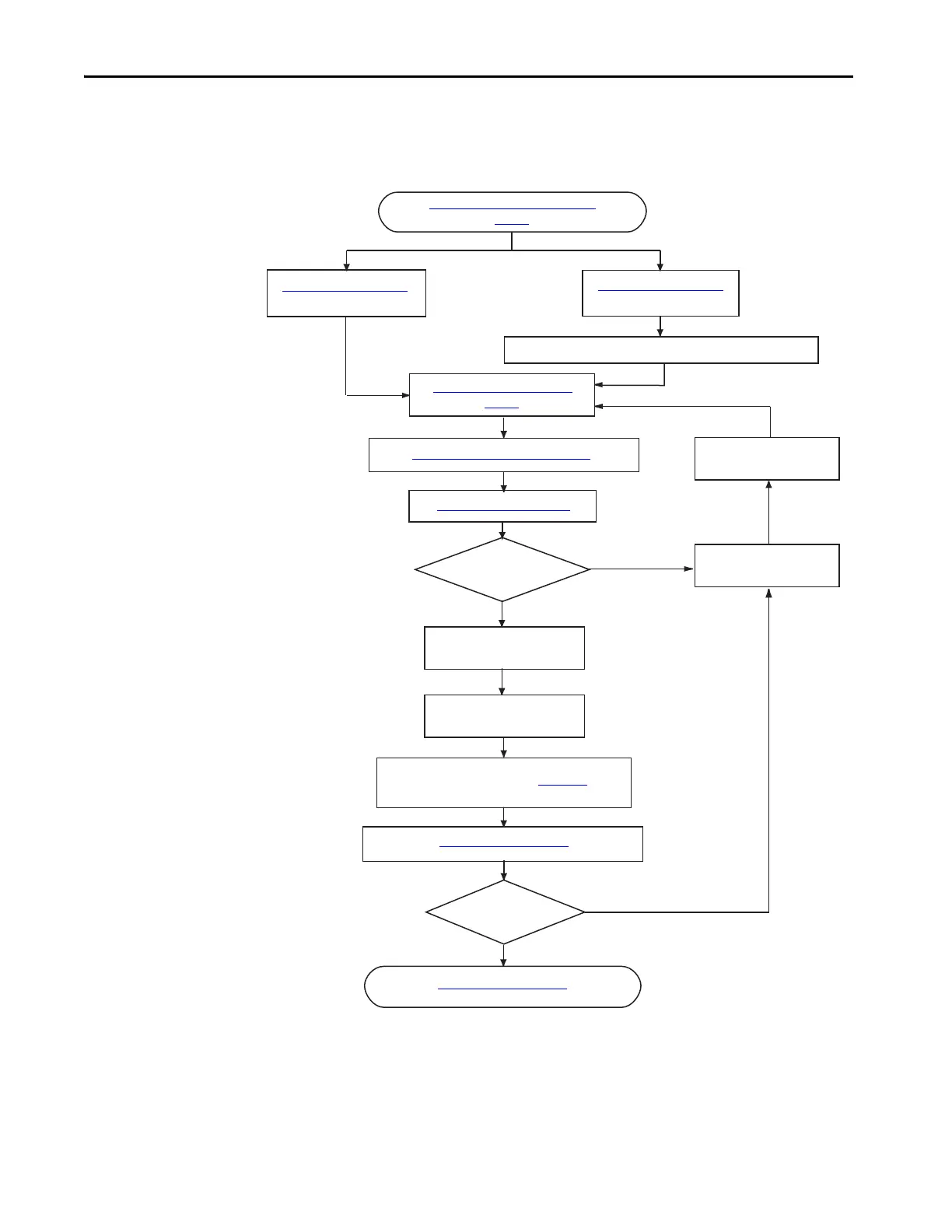

Figure 17 - Commission the System
Specification of the Safety Function on
page 51
Create the Project on page 52
Online
Create the Project on page 52
Offline
Attach to Controller and Download
Test the Application Program on
page 52
Generate the Safety Signature on page 52
Record Safety Signature
Validate the Project on page 53
Safety Assessment on page 55
Lock the Controller on page 55
Make Required
Modifications
Delete Safety Signature
Validation
Successful?
Project
Valid?
No
Yes
No
Yes
Fill out the Safety Checklists in Appendix D
Confirm the Project
