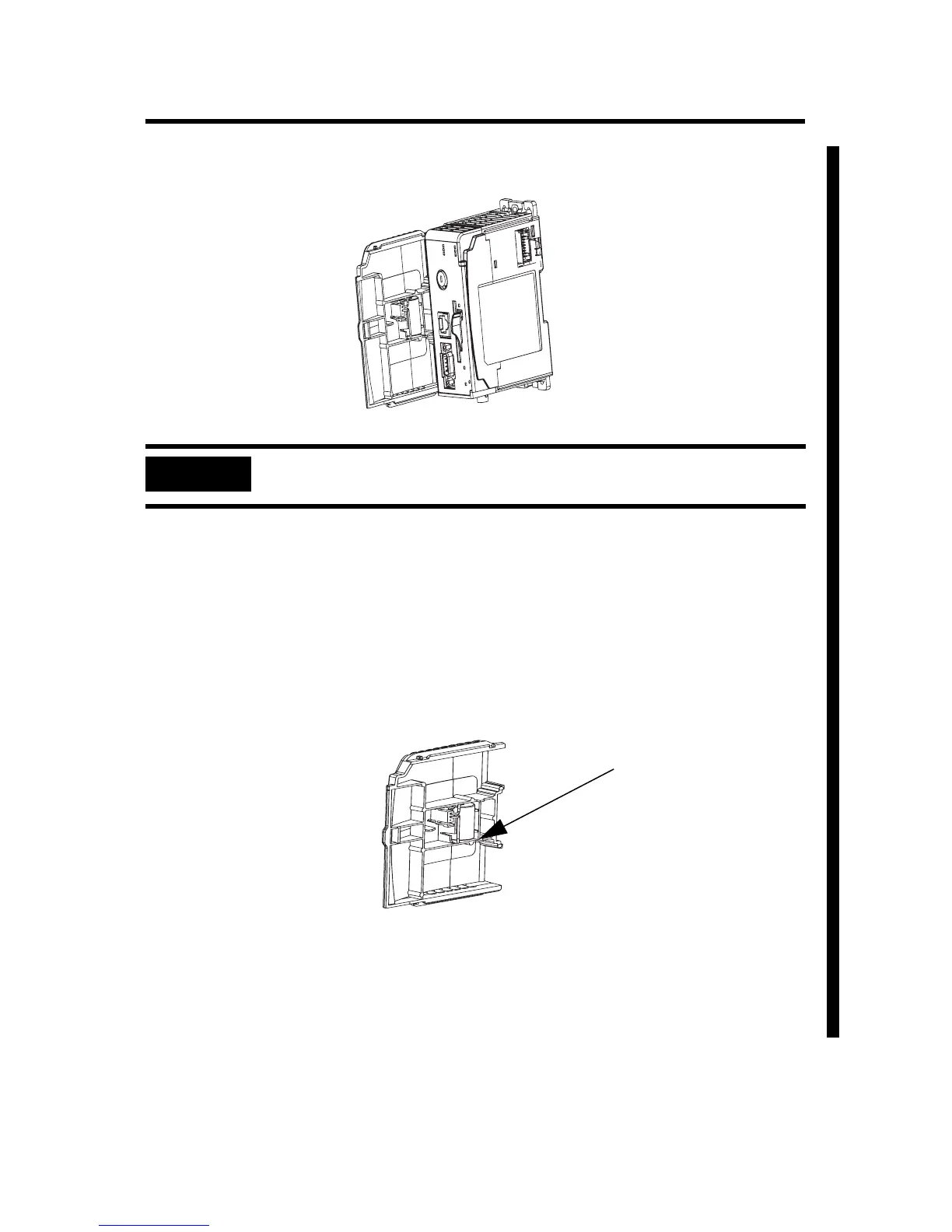

1. Remove the battery door by sliding it forward.
2. Ins
ert the battery connector into the connector port.
The connector is keyed to be installed with the correct
pola
rity.
3. Inse
rt the battery into the battery port in the battery door.
4. Slide the battery door back until it clicks into position.
IMPORTANT
Do not remove the plastic insulation covering the battery. The insulation is necessary
to protect the battery contacts.
Battery
