1769-L32E, 1769-L35E CompactLogix Controller 11
Publication
1769-IN020-C-EN-P - July 2007
6. Move the module’s bus lever fully to the left (D) until it clicks,
being sure it is locked firmly in place.
7. Atta
ch an end cap terminator (E) to the last module in the
system by using the tongue-and-groove slots as before.
8. Loc
k the end cap bus terminator (F).
Mount the System

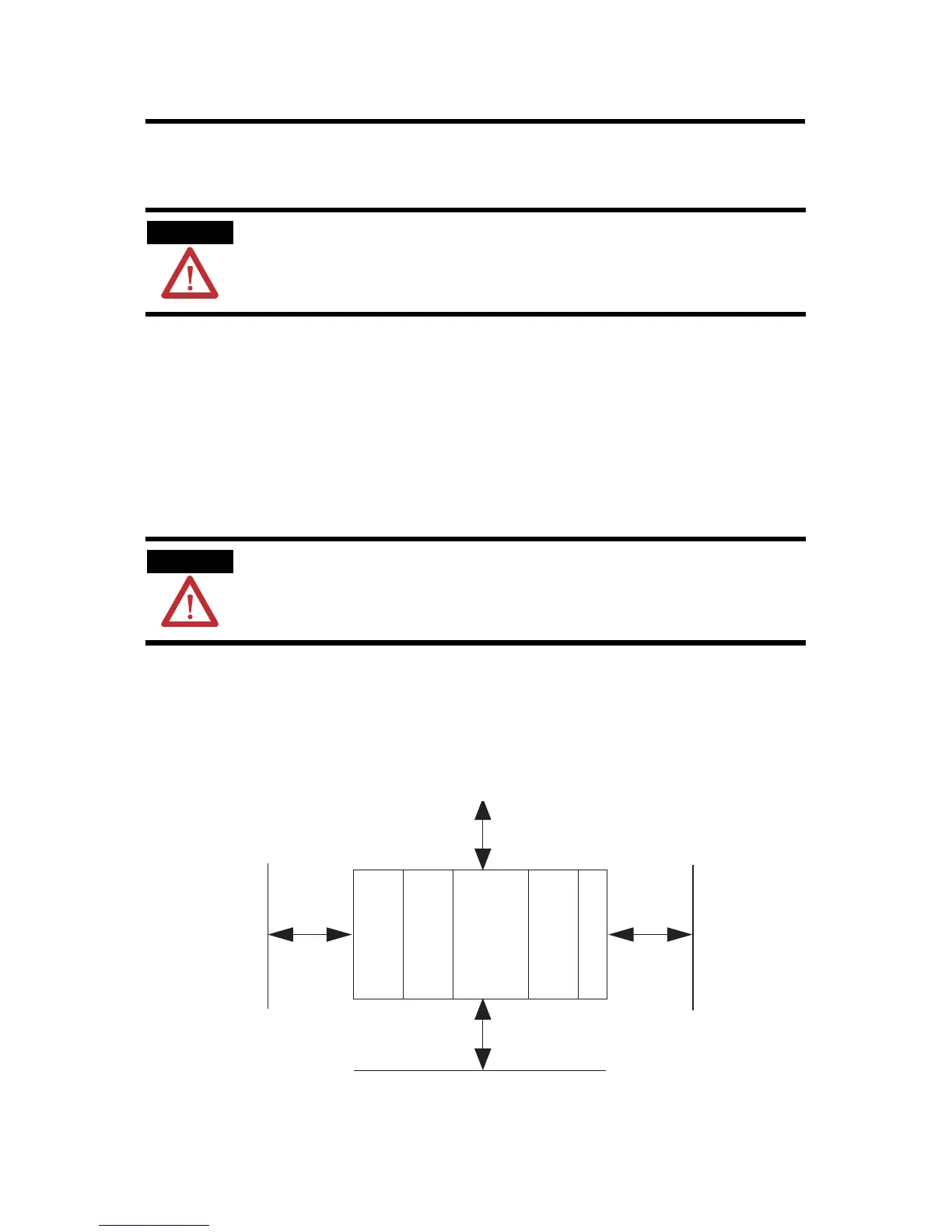

Minimum Spacing
Maintain spacing from enclosure walls, wireways, and adjacent
equipment. Allow 50 mm (2 in.) of space on all sides, as shown. This
provides ventilation and electrical isolation.
ATTENTION
When attaching the controller, power supply, and I/O modules, make sure the bus
connectors are securely locked together to be sure of proper electrical connection.
ATTENTION
During panel or DIN rail mounting of all devices, be sure that all debris (such as metal
chips or wire strands) is kept from falling into the controller. Debris that falls into the
controller could cause damage while the controller is energized.
Bottom
Side
Side
Top
CompactLogix
Controller
Power Supply
Compact I/O
Module
End Cap
50 mm
(1.97 in.)
50 mm
(1.97 in.)
50 mm (1.97 in.)
50 mm
(1.97 in.)
Compact I/O
Module
To Next Page
